Solar Fuse Connector

CNKA solar fuse connector Introduction

China Manufacturers CNKA offers wholesale solar fuse connectors with free samples, designed specifically to protect photovoltaic power generation equipment. These connectors prevent damage caused by overcurrent and overvoltage to inverters, combiner boxes, distribution boxes, solar storage equipment, and more. By stabilizing the operation of photovoltaic power plants, they help reduce unnecessary losses and troubles. The solar fuse connector can serve as both a panel connector and a fuse, providing a convenient, safe, and cost-effective solution.

CNKA solar fuse connector Parameter (Specification)

CNKA solar fuse connector Feature

1  This solar photovoltaic fuse holder supports a DC voltage of up to 1000V and a maximum carrying current of 30A, playing a crucial protective role.

2  The fuse specification is 10x38mm, made of reliable copper material.

3  It is compatible with solar connectors, ensuring a stable and reliable connection.

4  The product is crafted from anti-aging plastic, primarily imported PPO/PC, which offers strong resistance to aging and UV, with a service life exceeding 25 years.

5  The hardware connector uses high-quality copper with a certified tin coating, providing excellent contact resistance and a long service life for the plug-in board.

6   It features an IP67 waterproof rating and employs precise mold dimensions to ensure the contact tightness of finished components, guaranteeing stable and secure

CNKA solar fuse connector Details

1  The material is specially designed for solar energy applications to ensure optimal performance.

2  With a high waterproof grade of IP67 and a dustproof design, the product's durability and safety are significantly enhanced.

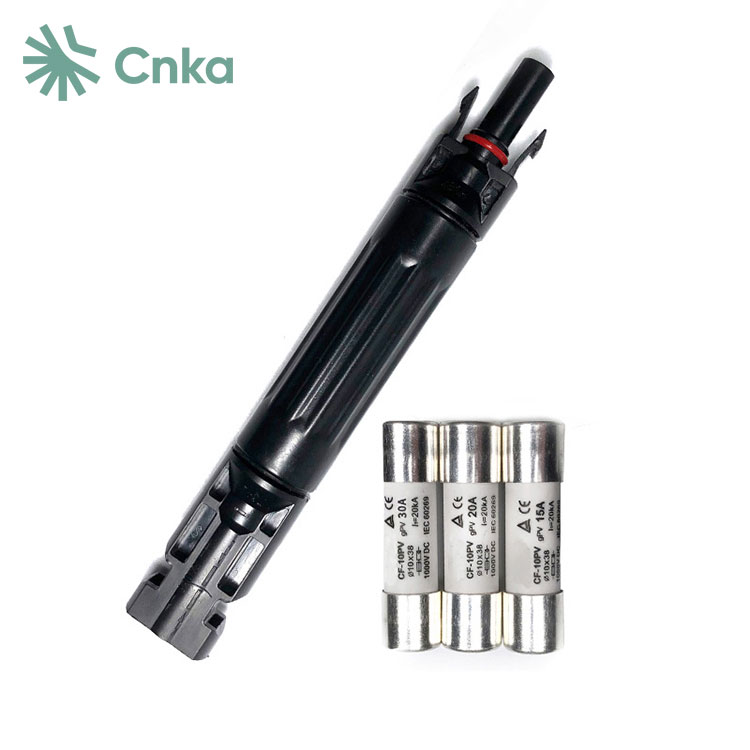

3  The cylindrical fuse is available in options of 10A, 15A, 20A, 25A, and 30A, providing reliable overload and circuit protection.

CNKA solar fuse connector Dimensions and wiring
