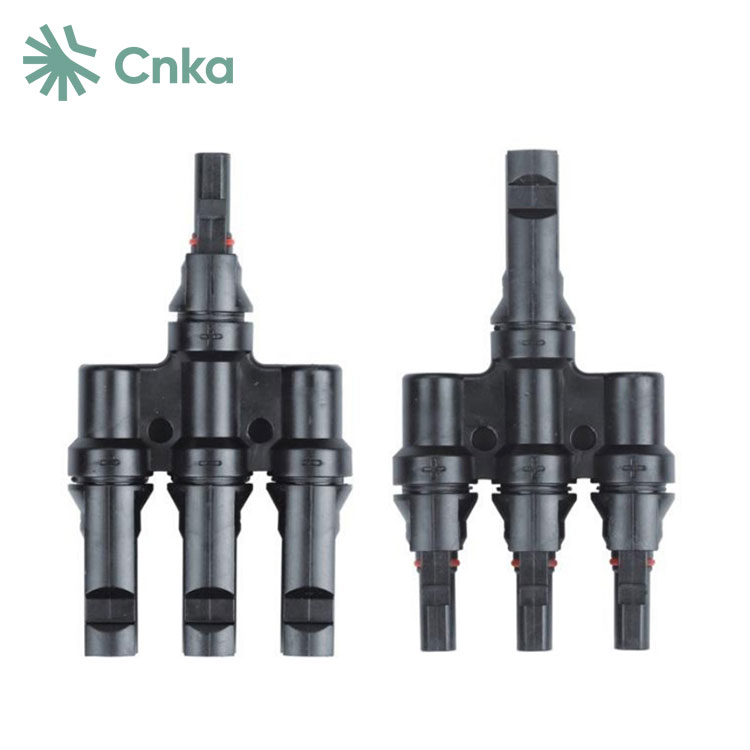

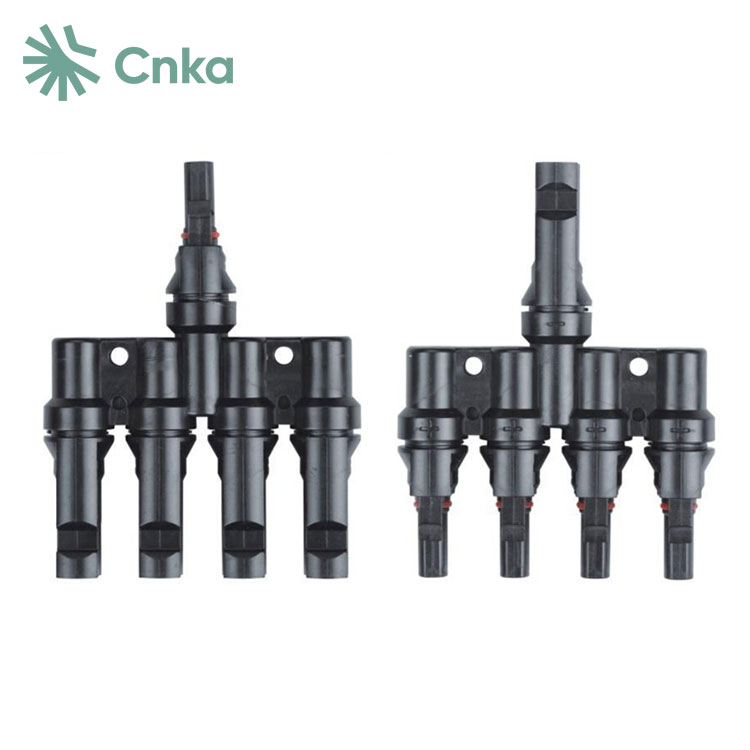

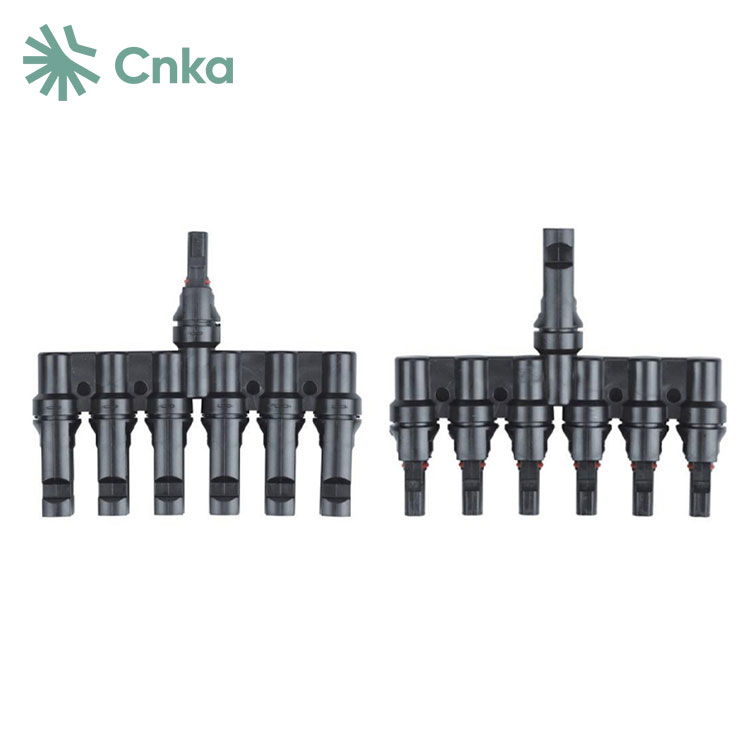

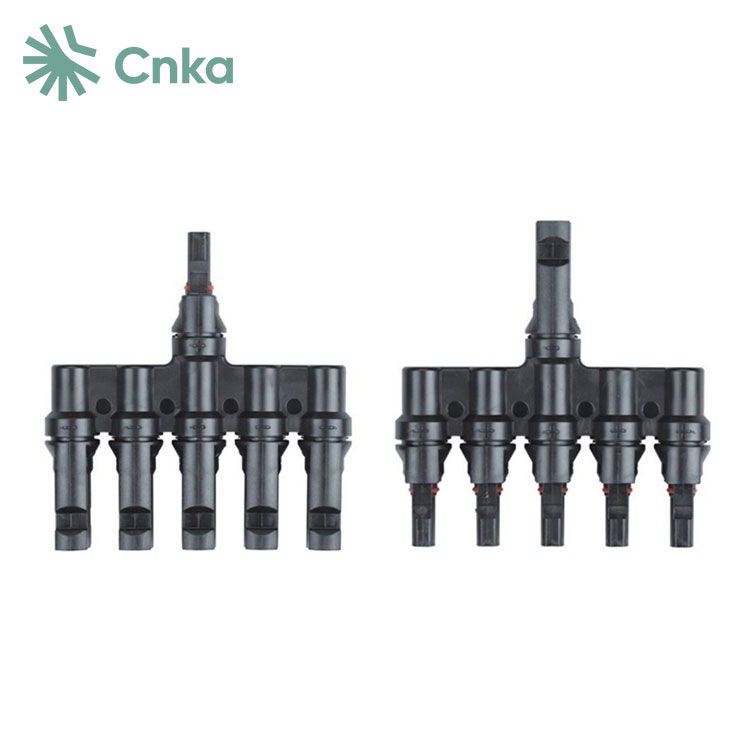

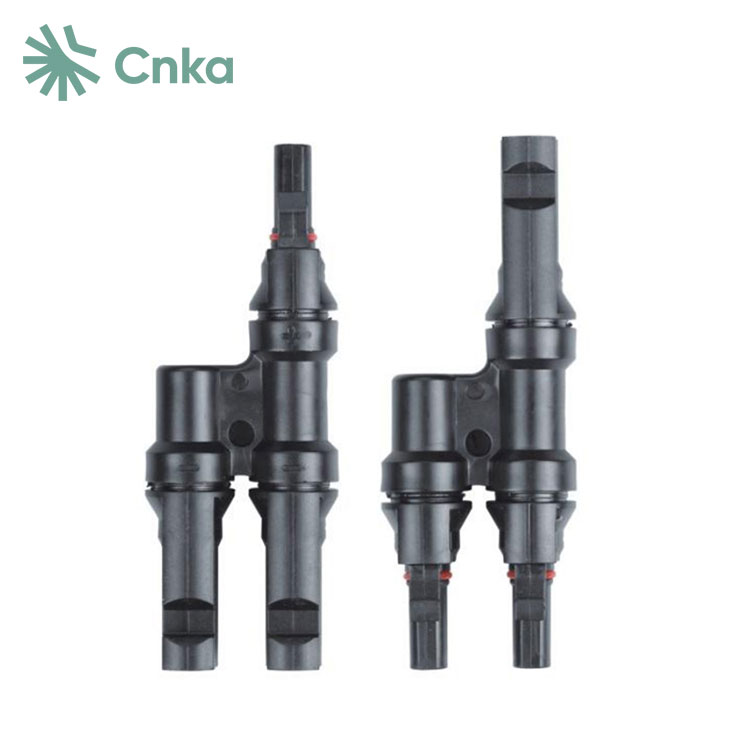

China Manufacturers CNKA offers easy-maintainable solar branch connectors, designed to connect multiple solar cell modules within a system. These connectors function as formal terminals or quick connectors, allowing for easy plugging and seamless connection to other components.
|
Insulation Material |
PPO |
|
Available Branch Type |
2-1,3-1,4-1,5-1,6-1 |
|
Contact Material |
Copper,Tin-plated |
|
Suitable Current |
30A |
|
Rated Voltage |
1000(TUV)600V(UL) |
|
Test Voltage |
6kV(TUV50HZ,1min) |
|
Contact Resistance |
<0.5mΩ |
|
Degree Of Protection |
IP67 |
|
Ambient Temperature Range |
-40℃~+85℃ |
|
Flame Class |
UL94-VO |
|
Safety Class |
IⅡ |
|
Pin Dimensions |
Φ4mm |
1 Exhibits exceptional current-carrying capacity.
2 Enables easy and rapid installation, with TUV certification.
3 Crafted from high-quality PC material.
4 Priced competitively, offering excellent value for money.
Q: Are MC4 connectors waterproof?
A: Yes, MC4 connectors are designed to ensure a secure electrical connection and are sealed with an IP67 rating, making them waterproof and dustproof.
Q: What are the best solar connectors?
A: The CHYT MC4 connector is widely recognized as the best choice for connecting solar panels and module-level devices like power optimizers and microinverters, making it nearly universal in the industry.
Q: Do solar panels need MCB?
A: Yes, it is essential to install a miniature circuit breaker (MCB) for direct current before setting up the inverter to protect the solar panels from sudden, high surge currents.
