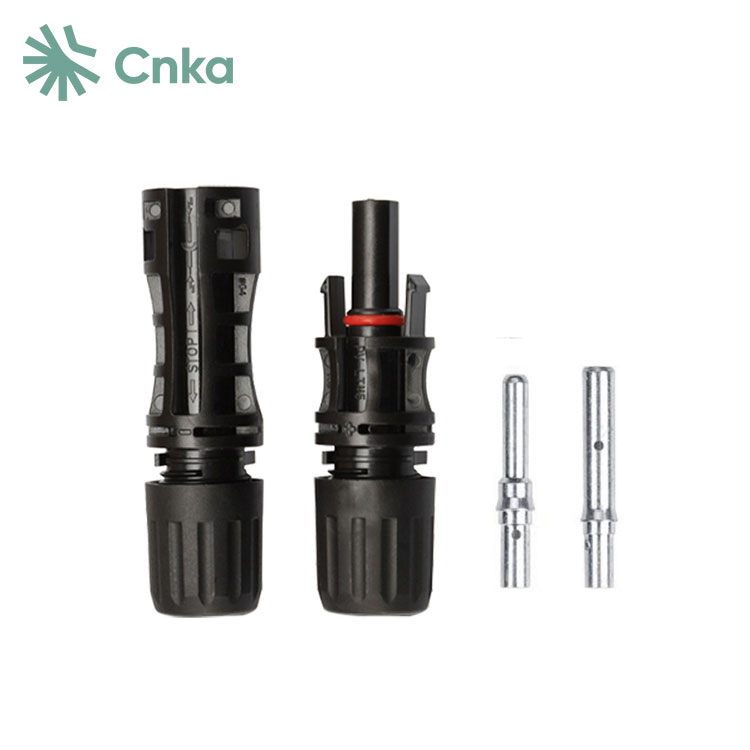

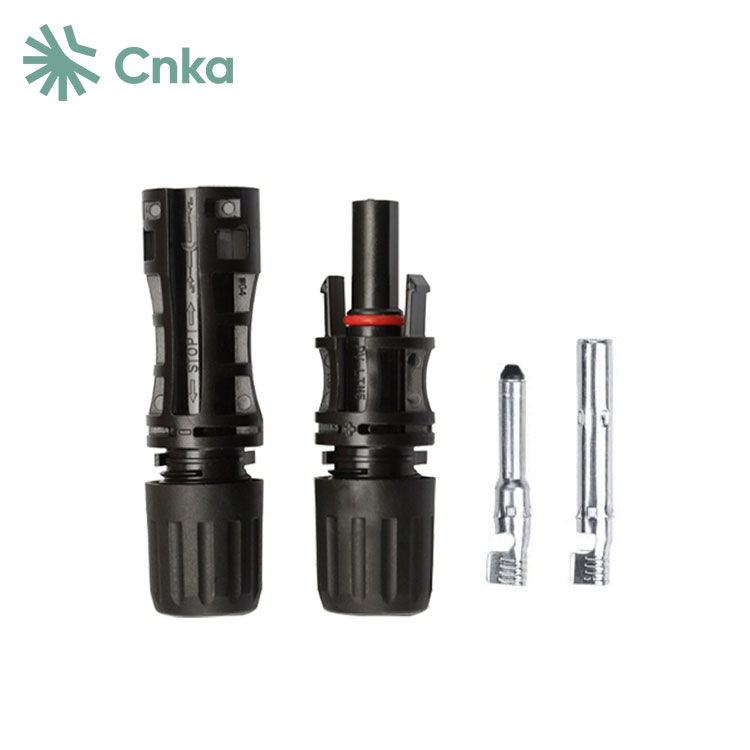

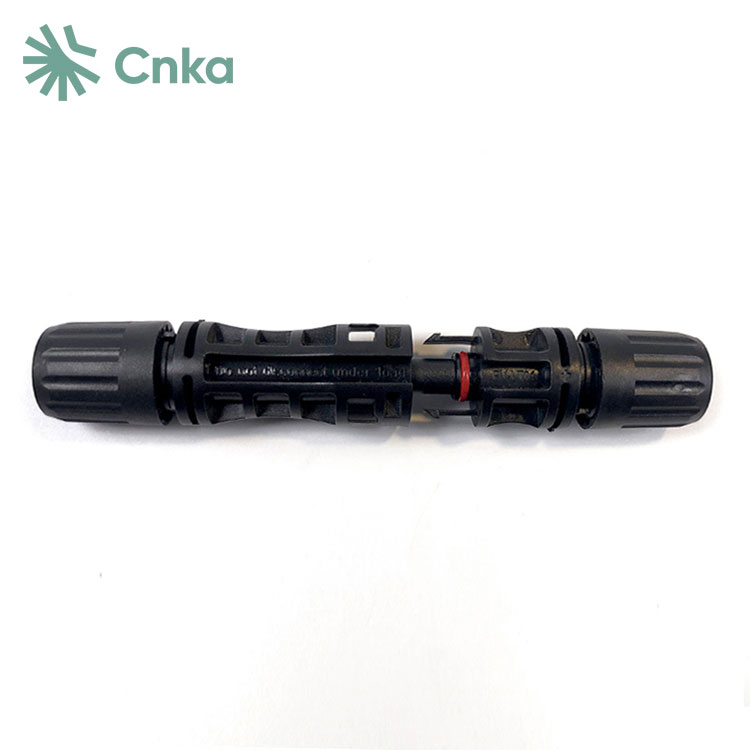

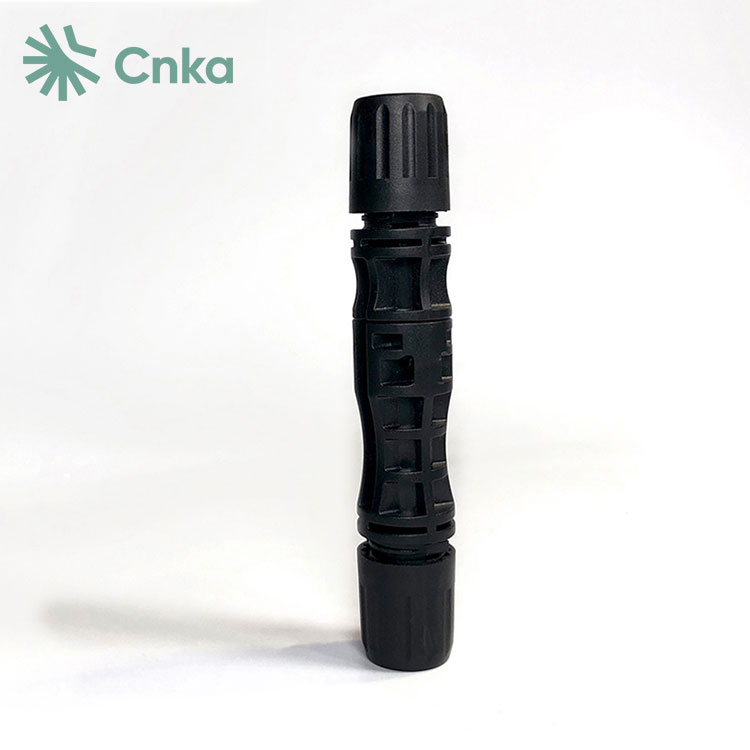

China Suppliers CNKA offers durable solar panel wire connectors in stock, designed for connecting 2.5 mm², 4 mm², and 6 mm² solar cables. These connectors ensure quick and reliable connections between solar cables and the solar panel converter in photovoltaic systems. They are compatible with the Multi-Contact 4 connector, making them easy to use and connect.
|
Connector system |
φ4mm |
|
Rated voltage |
1000V DCIEC)1 |
|
Rated current |
17A1.5mm2) |
|
22A2.5mm2,14AWG) |
|
|
30A4mm2,6mm2,12AWG,10AWG) |
|
|
Test voltage |
6kV50HZ,1min) |
|
Ambient temperature range |
-40℃~+90℃IEC)-40℃~+75℃UL) |
|
Upper limiting temperature |
+105℃IEC) |
|
Contact material |
Copper,Tin-plated |
|
Insulation material |
PC/PPO |
|
Degree of protection,mated |
IP67 |
|
unmated |
IP2X |
|
Contact resistance of plug connectors |
0.5mΩ |
|
Flame class |
UL94-VO |
|
Safety class |
Ⅱ |
|
Locking system |
Snap-in |
|
Salt mist spray test,degree of severity 5 |
IEC60068-2-52 |
1 Our sound insulation photovoltaic cables come with various insulation diameter designs.
2 The positive and negative poles provide efficient, seamless connections with high protection levels.
3 The seamless design of the cables ensures effective waterproofing and dustproofing.
4 Tinned copper material is used to reduce resistance impedance and resist oxidation effectively.
Q: Do all solar panels use MC4 connectors?
A: MC4 connectors are the standard for modern solar panel systems. They feature a durable IP67 rating, ensuring waterproof and dustproof capabilities. MC4 connectors are compatible with both 4mm and 6mm solar wires and deliver reliable performance across various weather conditions.
Q: What are solar connectors called?
A: Solar connectors, such as CHYT MC4 connectors, are single-contact electrical connectors commonly used for interconnecting solar panels.
Q: What is a PV connector?
A: Photovoltaic (PV) connectors are used in solar energy systems to link solar panels in arrays. They ensure compatibility between power interfaces from different manufacturers.
