CNKA's DC products, recognized under its reputable brand, are widely used in photovoltaic systems. These products feature cutting-edge technologies and hold certifications such as CE, IEC, SAA, and TUV, establishing CNKA as a respected company in the solar energy sector.

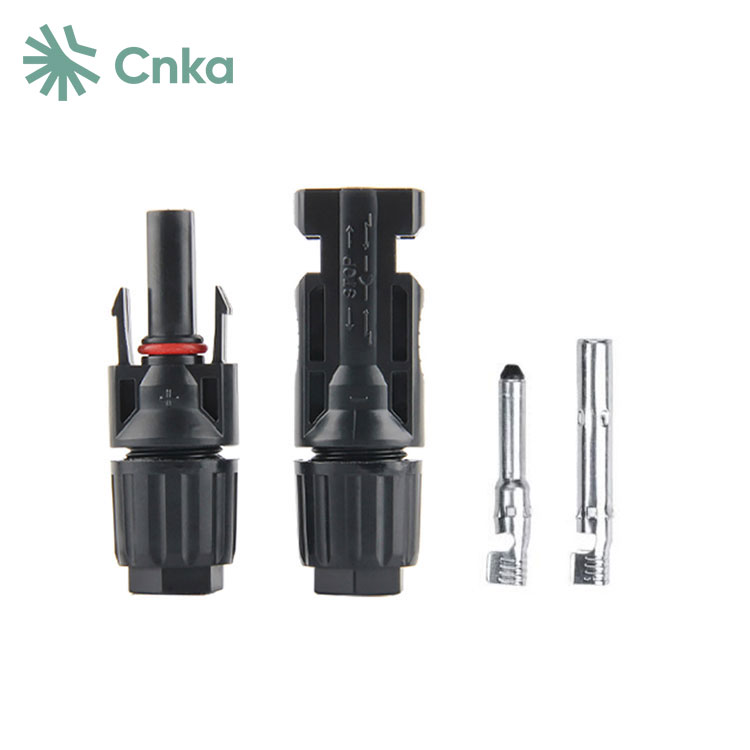

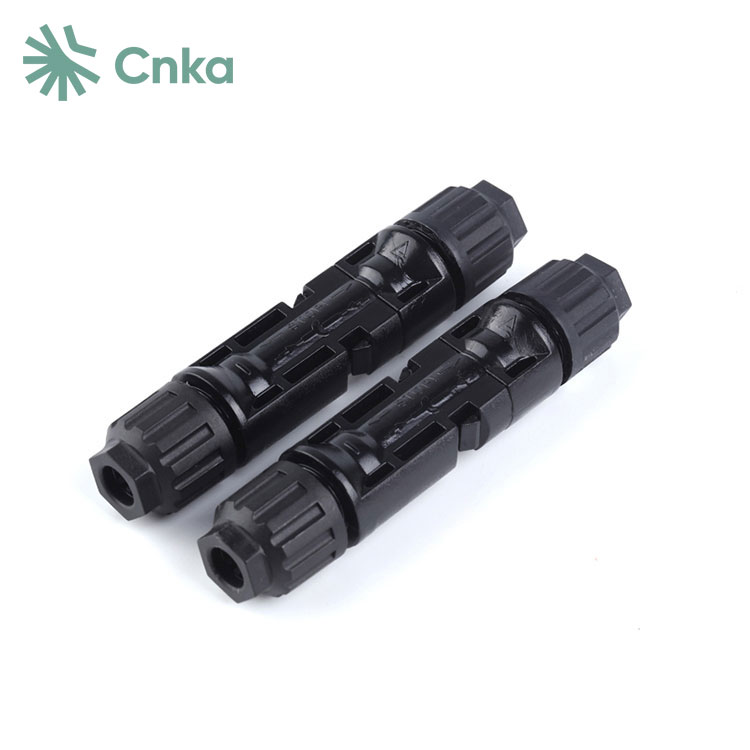

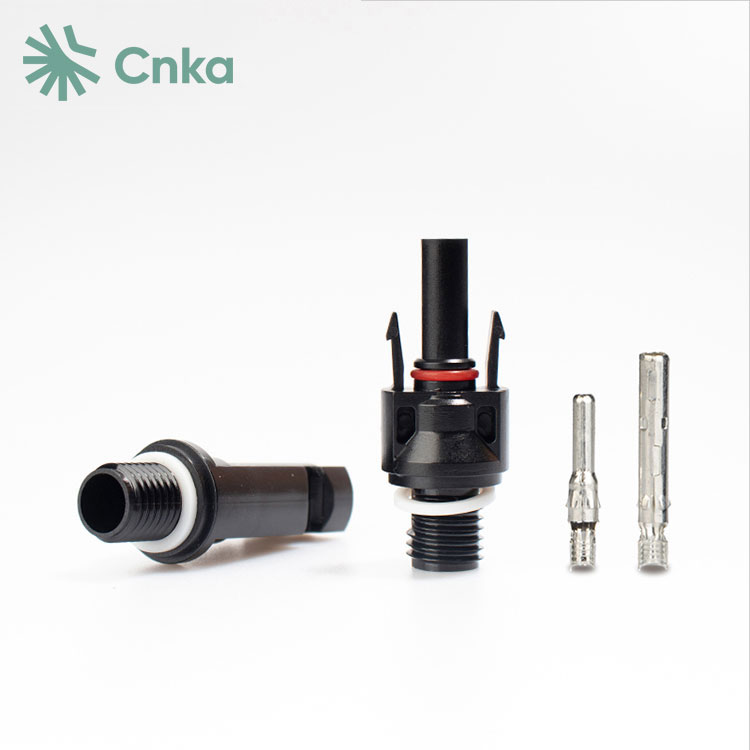

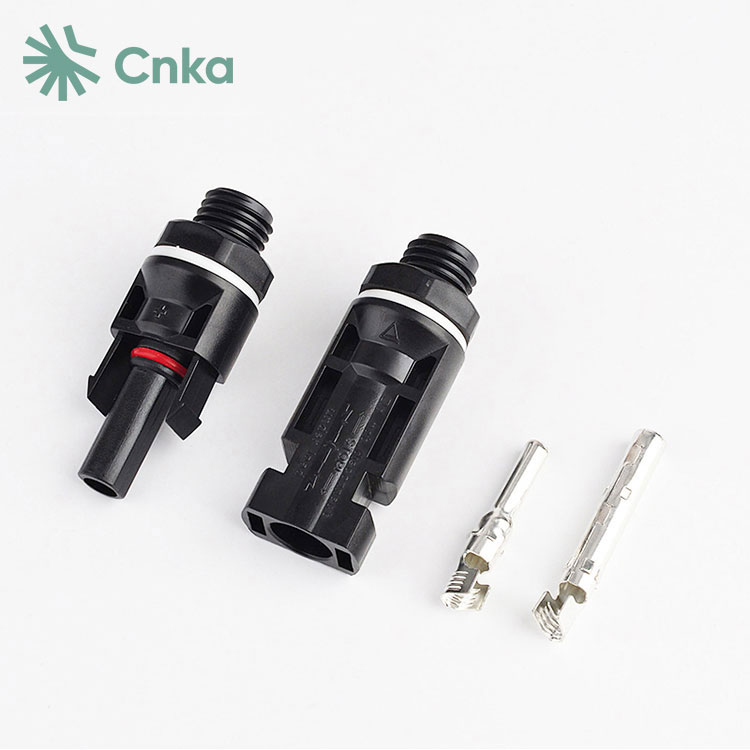

China Manufacturers CNKA offers customized solar panel parallel connectors, providing stamping, forming, and machining cold-formed contact types suitable for on-site installation. These connectors can accept wires of 14AWG/2.5mm², 12AWG/4mm², and 10AWG/6mm² sizes.
|
Rated voltage |
1000V DC(IEC)1 |
|
Rated current |
17A(1.5mm2) |
|
22A(2.5mm2,14AWG) |
|
|
30A(4mm2,6mm2,12AWG,10AWG) |
|
|
Test voltage |
6kV(50HZ,1min) |
|
Ambient temperature range |
-40℃~+90℃(IEC)-40℃~+75℃(UL) |
|
Upper limiting temperature |
+105℃(IEC) |
|
Contact material |
Copper,Tin-plated |
|
Insulation material |
PC/PPO |
|
Degree of protection,mated |
IP67 |
|
unmated |
IP2X |
|
Contact resistance of plug connectors |
0.5mΩ |
|
Flame class |
UL94-VO |
|
Safety class |
H |
|
Locking system |
Snap-in |
|
Salt mist spray test,degree of severity 5 |
EC60068-2-52 |
1.Simplifies and accelerates on-site maintenance procedures
2.Ensures multiple plug and unplug cycles without compromising performance
3.Offers stable and reliable connections, reducing maintenance expenses
4.Features high-quality sealing rings that provide superior sealing performance
1.Enhanced copper core with zinc-plated inner core for durability
2.High-strength PPO plastic with excellent heat resistance, flame retardancy, and pollution resistance
3.IP67 waterproof rating ensures effective waterproofing and dustproofing, making it easy to use
