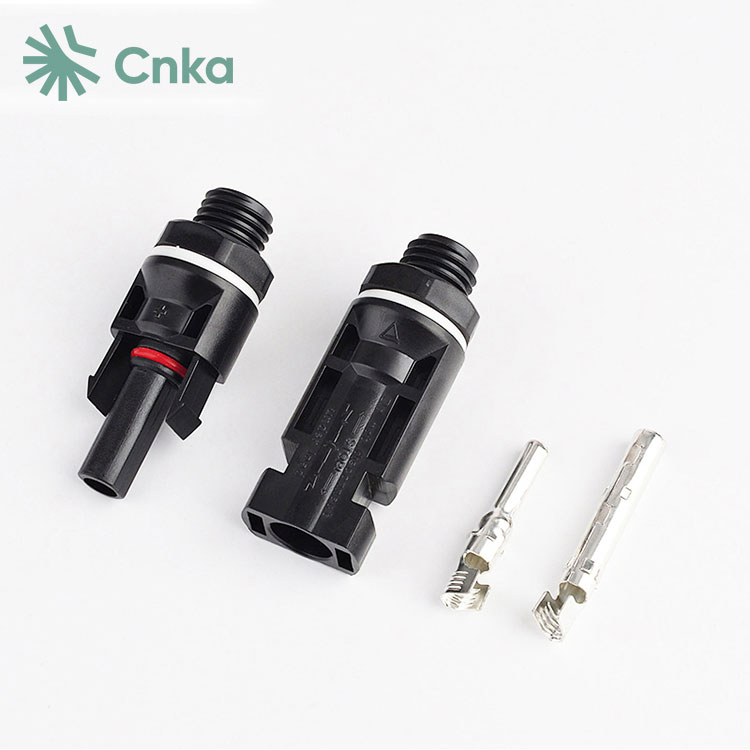

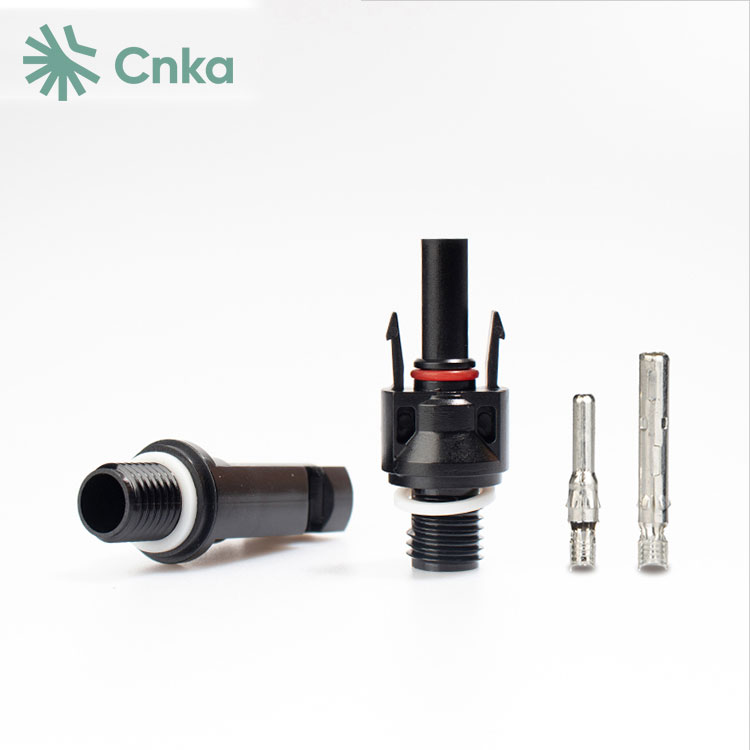

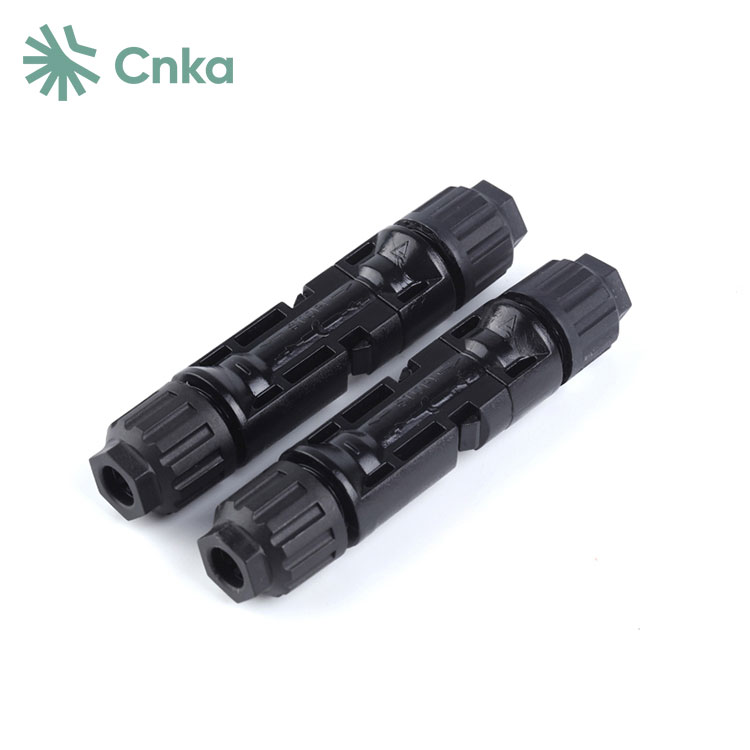

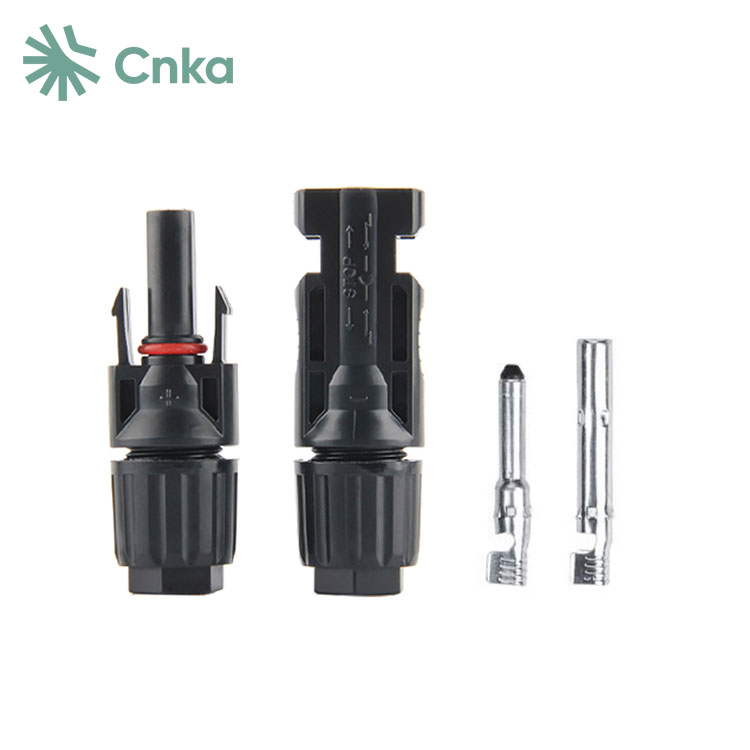

CNKA Classy solar PV connectors from China Suppliers are in stock and offer load closing and breaking functions. They feature dual non-electric shock protection, enabling quick connections and providing seismic resistance.
|
Connector system |
φ4mm |
|
Rated voltage |
1000V DCIEC)1 |
|
Rated current |
17A1.5mm2) |
|
22A2.5mm2,14AWG) |
|
|
30A4mm2,6mm2,12AWG,10AWG) |
|
|
Test voltage |
6kV50HZ,1min) |
|
Ambient temperature range |
-40℃~+90℃IEC)-40℃~+75℃UL) |
|
Upper limiting temperature |
+105℃IEC) |
|
Contact material |
Copper,Tin-plated |
|
Insulation material |
PC/PPO |
|
Degree of protection,mated |
IP67 |
|
unmated |
IP2X |
|
Contact resistance of plug connectors |
0.5mΩ |
|
Flame class |
UL94-VO |
|
Safety class |
Ⅱ |
|
Locking system |
Snap-in |
|
Salt mist spray test,degree of severity 5 |
IEC60068-2-52 |
1 With over a decade of experience, we specialize in producing solar connectors.
2 Our keyed shell design ensures excellent security and coordination.
3 We offer free samples and various specifications for different types of solar panel connectors.
4 Our connectors are waterproof, meeting all waterproof plug requirements.
Q: Can you help me to select suitable products?
A: If you provide us with your inquiry and requirements, our team of professionals will assist you in selecting the appropriate model.
Q: Is there any discount?
A: We offer better prices for larger quantities. If you're interested in a special discount, please feel free to contact us.
Q: How fast can I get the quotation?
A: We will provide you with a complete quotation within 24 hours.
