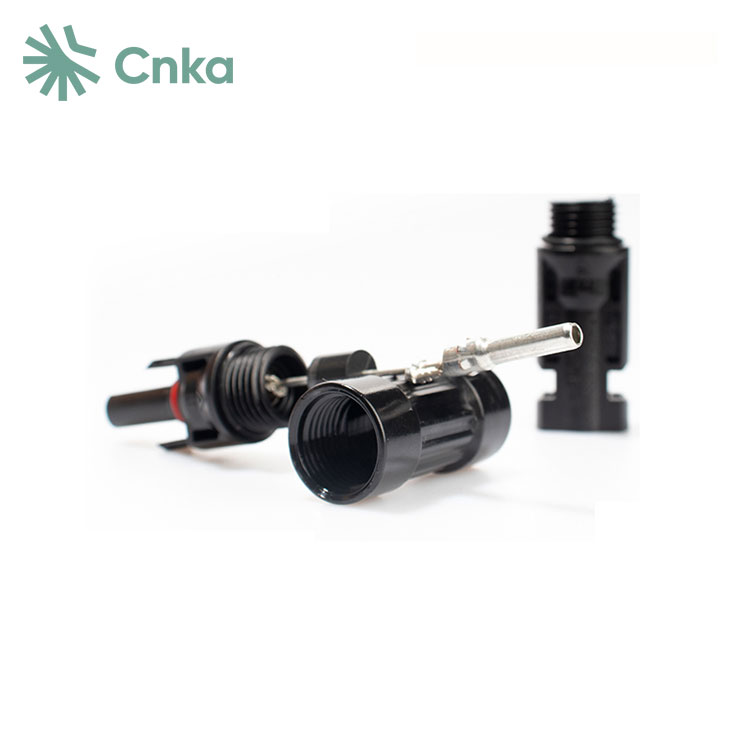

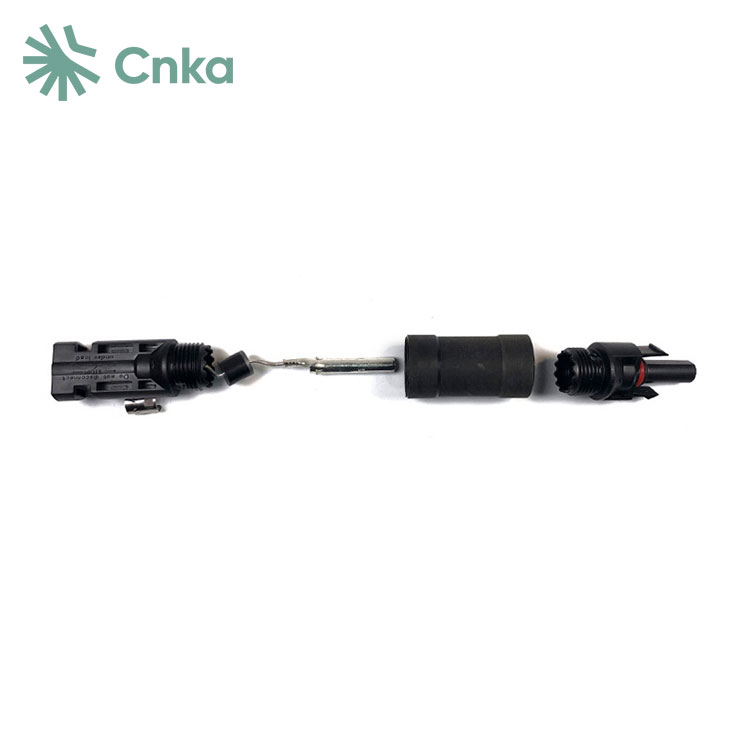

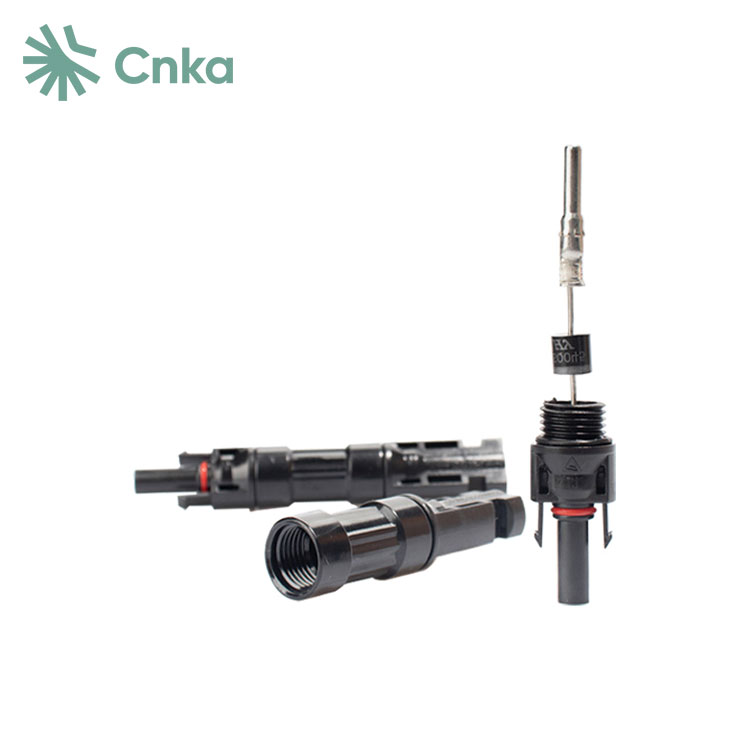

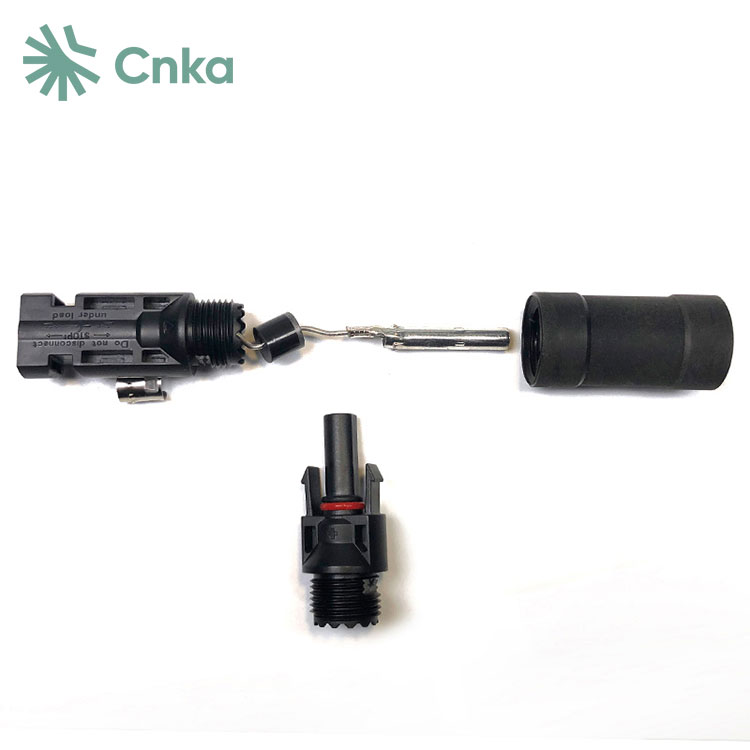

China Suppliers CNKA offers discounted solar diode connectors equipped with built-in diodes, allowing customers to select from various specifications based on their system's current and voltage needs. This ensures the proper operation and safety of the photovoltaic system. The solar diode connector is specifically designed for the installation and protection of photovoltaic systems, matching the terminals of FMC4 series products and compatible with general-purpose MO connectors. It is primarily used to protect components both before and after confluence.
|
Technical Data |
|
|
Rated Current |
10A,15A,20A,25A,30A(According to the FUSE) |
|
Rated Voltage |
1000V DC |
|
Test Voltage |
6kV(50HZ,1min) |
|
Overvoltage Category/Pollution Degree |
CAT III /2 |
|
Contact Resistance Of Plug Connector |
0.5mΩ |
|
Contact Material |
Copper,Tin-plated |
|
Insulation Material |
PPO |
|
Degree Of Protection |
IP2*/IP67 |
|
Flame Class |
UL94-VO |
|
Safety Class |
II |
|
Insertion Force/Withdrawal Force |
≤50N/≥50N |
|
Connecting System |
Crimp connection |
|
Temperature Range |
-40℃~+85℃ |
1 Features low power loss.
2 Includes an automatic locking function for easy connection of male and female points.
3 Provides a simpler and more reliable connection during installation.
4 Offers anti-aging and UV-resistant properties.
5 The equipment casing has a radiation effect.
6 Boasts a popular appearance, suitable for most on-site installation scenarios.
7 Allows for simple on-site processing.
8 Ensures convenient equipment installation with strong universality.
1 Specifically designed for solar applications with genuine materials, ensuring reliability.
2 Features an IP67 waterproof grade with a high-grade waterproof and dustproof design to enhance the product’s service life and safety.
3 Equipped with a thickened copper core for faster transmission and greater durability.
