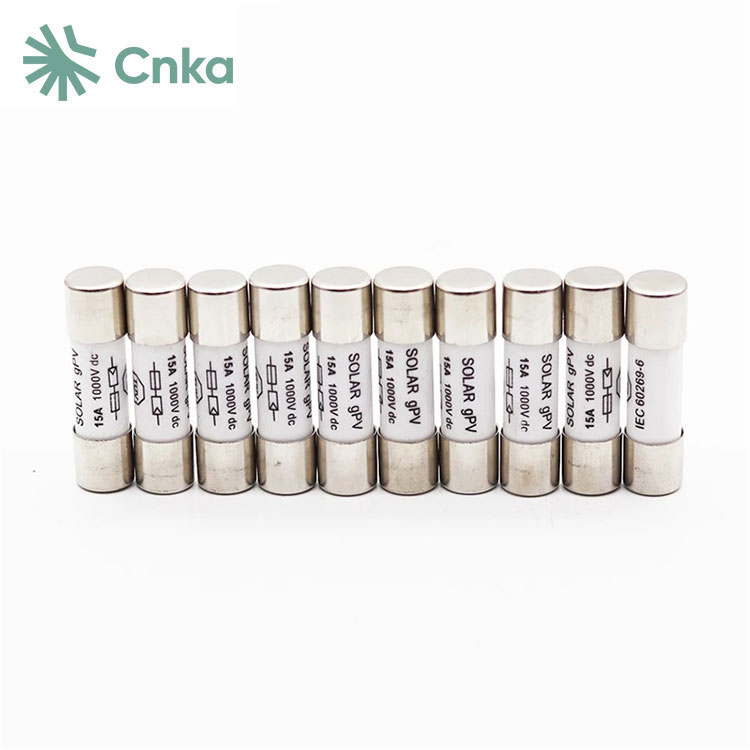

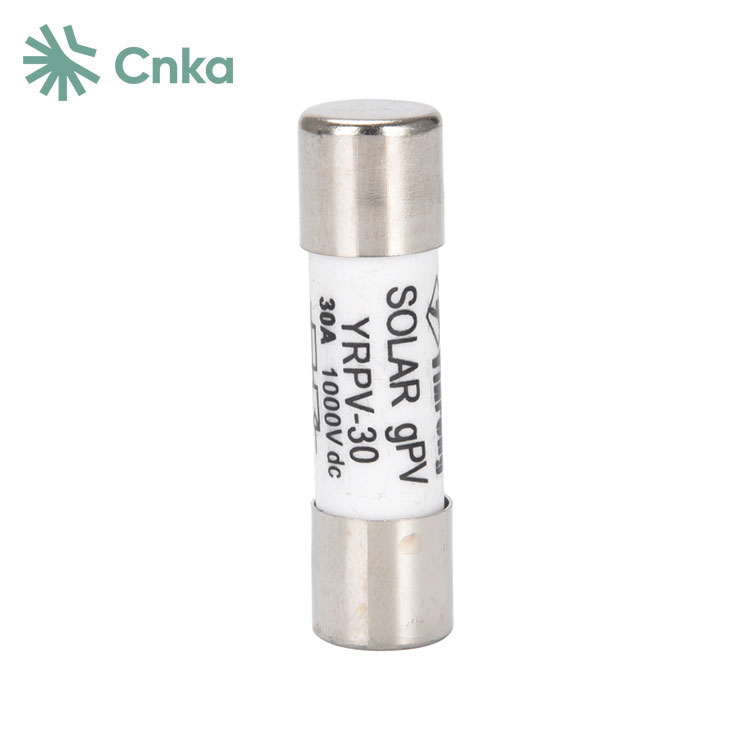

China Factory CNKA offers wholesale solar DC fuses that meet ENIEC60947-3 and 60269-6 standards. These fuses have a maximum rated voltage of 1000V and a maximum current of 32A. Serving as short circuit and overcurrent protectors, our solar DC fuses are extensively used in both high and low voltage distribution systems, control systems, and electrical equipment such as distribution boxes and inverters.
|
Product Model |
YRPV-63 |
|
Colour |
White |
|
Breaking capacity |
25kA |
|
Rated Current (A) |
10A,15A,20A,25A,32A,40A,50A,63A |
|
Rated Voltage(V DC) |
1000/1500 |
|
Installation |
Rail installation |
|
Fuse link size(mm²) |
14*65 |
1 The installation of the Din35 guide rail is straightforward and user-friendly, making it easy to complete.
2 This guide rail has a breaking capacity of 25KA, providing excellent safety protection.
3 It can withstand high-frequency voltage and demonstrates outstanding performance.
4 Moreover, this guide rail is suitable for use in photovoltaic systems, and the fuses it is equipped with comply with the UL248-1 standard.
1 The fuse tube uses high-purity quartz sand as the arc extinguishing medium, which provides excellent thermal conductivity and insulation performance, significantly enhancing the fuse's arc extinguishing capability. This medium offers high shielding and isolation capabilities, effectively protecting the circuit from the effects of arcs and current breakdowns.
2 The cylindrical cap structure features a built-in isolation gasket process, ensuring a stable and reliable connection between the fuse ends and the contact cap, resulting in consistent performance.
