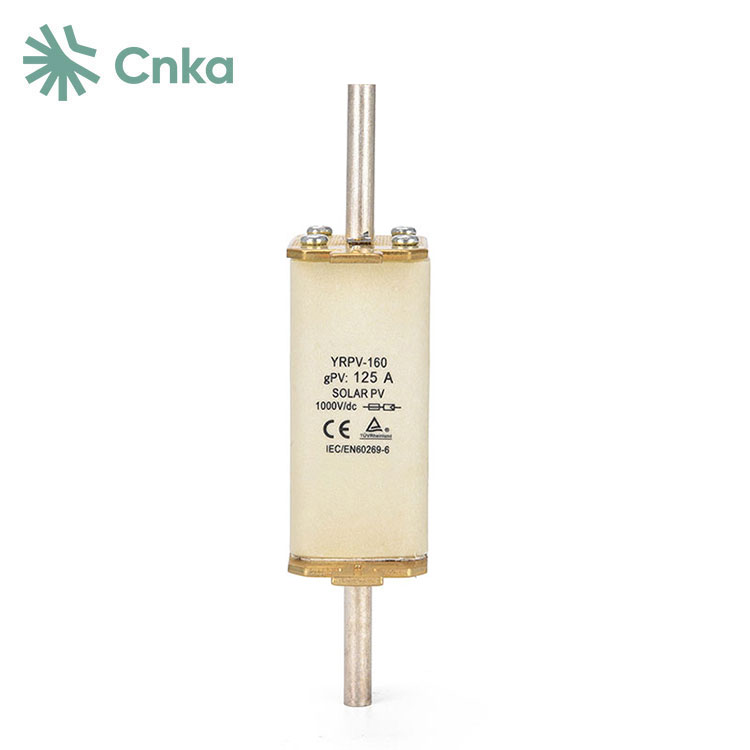

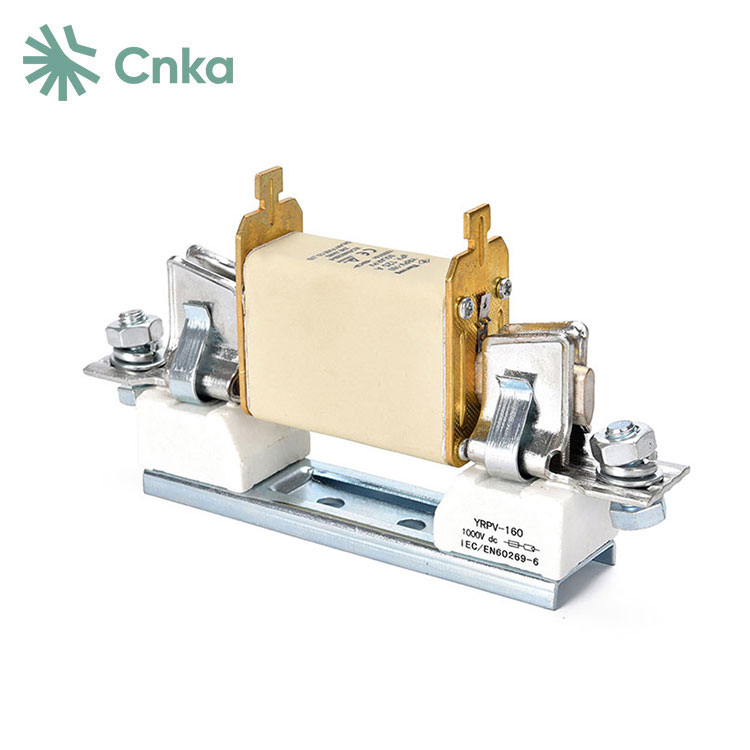

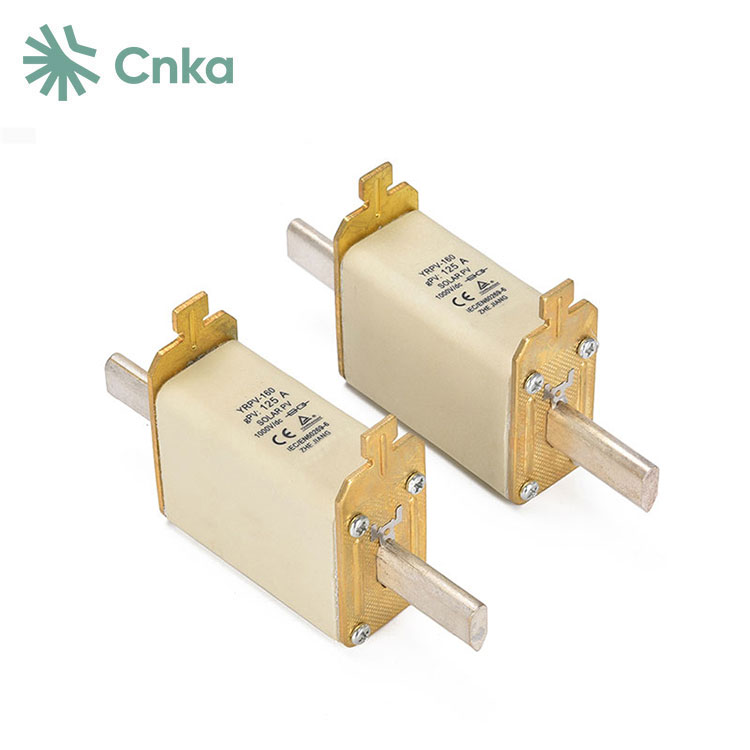

CNKA, a Chinese manufacturer, provides a specialized quotation for the 1000VDC 160A NH0 Solar DC fuse. This device is designed to protect and isolate photovoltaic PV array combiners and DC circuit breakers effectively. The 1000VDC 160A NH0 Solar DC fuse adopts an enhanced NH0-sized structure, specifically designed to safeguard 1000VDC photovoltaic systems. It offers a range of rated currents from 40A to 160A, catering to various photovoltaic applications including combiner boxes and inverters.
|
Product Model |
YRPV-160 |
|
Colour |
Yellow |
|
Breaking capacity |
20kA |
|
Rated Current (A) |
40A,50A,63A,80A,100A,125A,160A |
|
Rated Voltage(V DC) |
1000 |
1 Even if one photovoltaic cell fails, it will not affect the normal operation of the entire photovoltaic array.
2 High-purity silicon quartz sand with a purity of 98% or higher.
3 "gPV" denotes a full-range DC circuit breaker protection device for photovoltaic systems.
4 CE certified.
Q: Can I use a DC fuse for an AC fuse?
A: It is not safe to interchange DC and AC fuses.
Q: What voltage are DC fuses rated for?
A:CNKA DC fuses are typically rated for 1000VDC or 1500VDC.
Q: How do I know if my DC fuse is blown?
A: TheCNKA DC fuse base includes an LED indicator light. Many users mistakenly believe this light indicates normal circuit connection. In fact, the LED lights up when the fuse is blown, signaling the need for replacement.
