100A DC Fuse

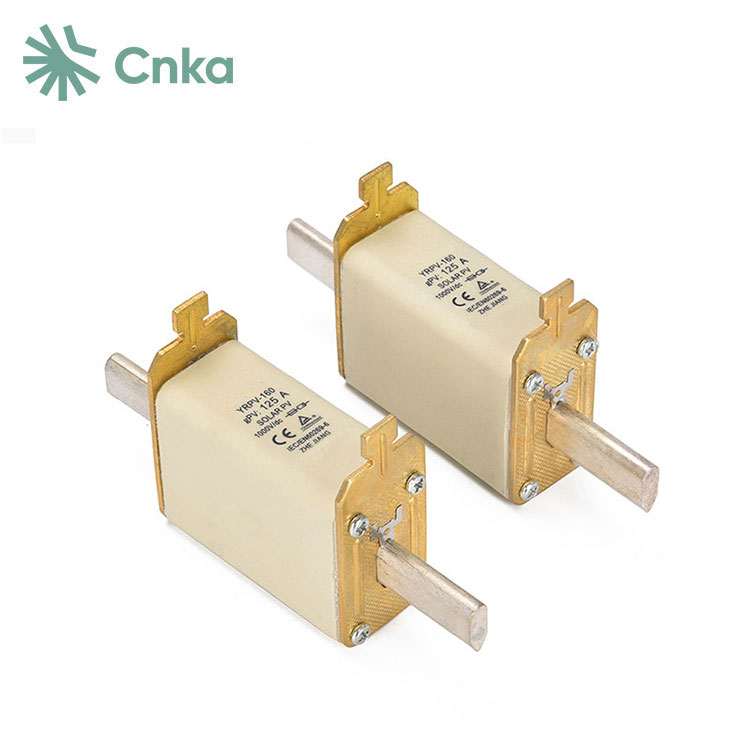

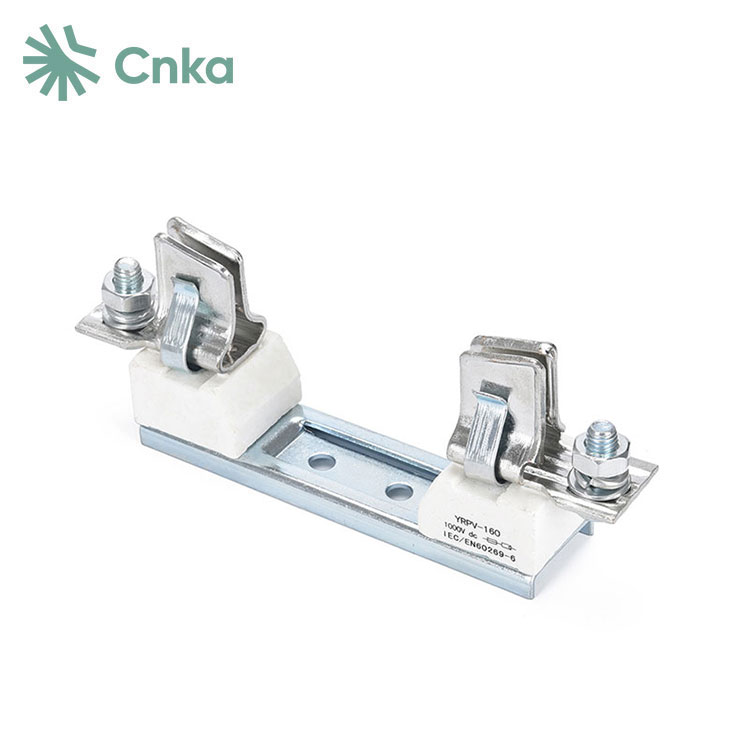

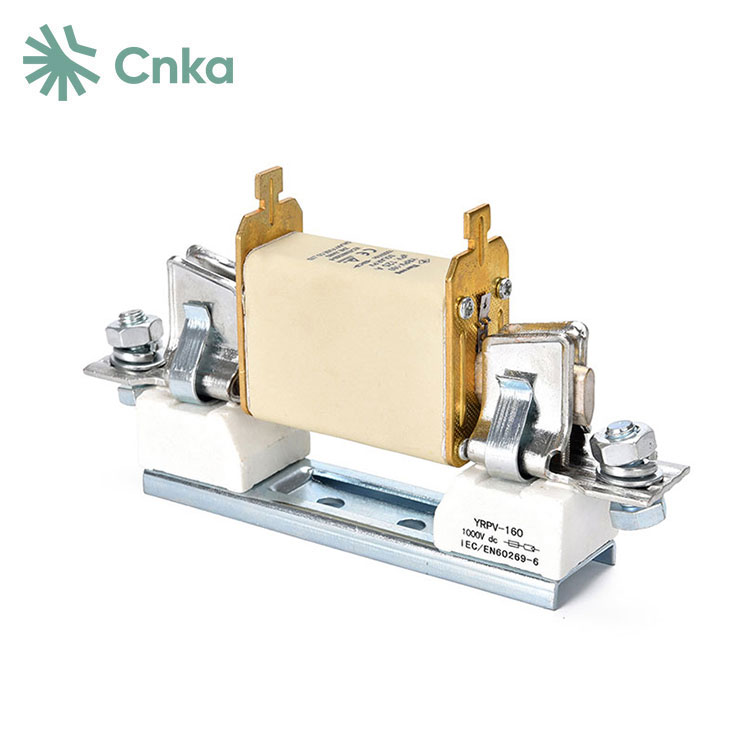

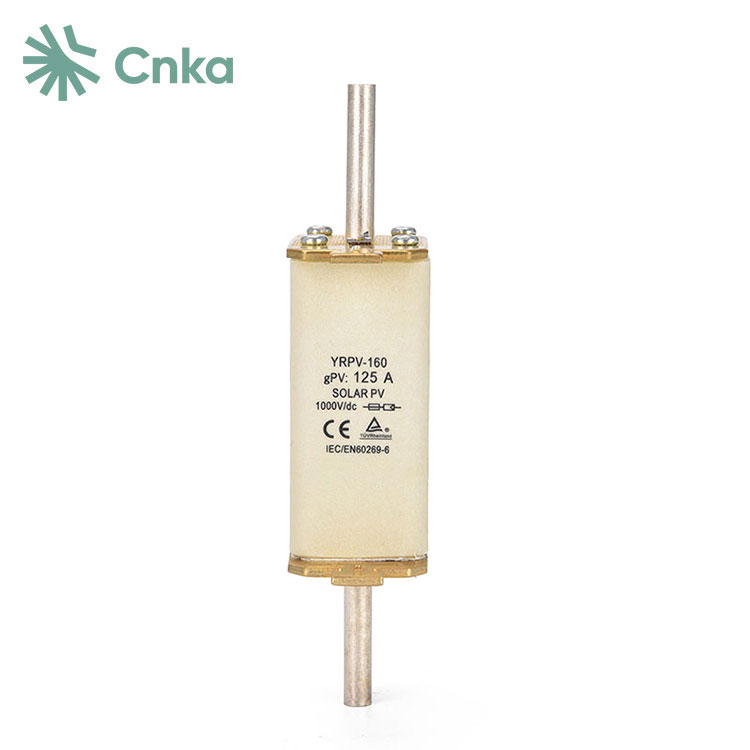

CNKA  offers a durable 100A DC fuse quotation. The RT16 (NT) packed closed tube knife type fuse series includes RT16 (NT) fuses and NH fuse bases. These 100A DC fuses are characterized by their compact size, light weight, low power consumption, and high breaking capacity. They are extensively utilized for protecting electrical equipment from overload and short circuits.

CNKA 100a dc fuse Parameter (Specification)

CNKA 100a dc fuse Usage requirements

1 The product should be operated in an environment where the relative humidity does not exceed 50% at an air temperature of 40 ℃. Higher relative humidity may occur at lower temperatures, and the monthly average maximum relative humidity in the wettest month should not exceed 90%. Additionally, the monthly average minimum temperature should not fall below 25 ℃ to prevent condensation on the product's surface.

2 Regarding voltage, the maximum system voltage for this product should not exceed 110% of the rated fuse voltage. For DC voltage derived from AC rectification, variations caused by pulsation should not exceed 5% of the average value of 110% of the rated voltage, nor drop below 9%.

3 The current carried by the fuse should fall within the range of rated current and breaking current, with a frequency between 45-62Hz.

CNKA 100a dc fuse Dimensions and wiring

CNKA 100a dc fuse Installation conditions

1The fuse can be installed vertically, horizontally, or at an incline, provided that the installation site experiences minimal vibration and impact, and the air is clean.

2 Note that for fuses used in special working conditions, users should engage with the manufacturer to address specific requirements.

.
