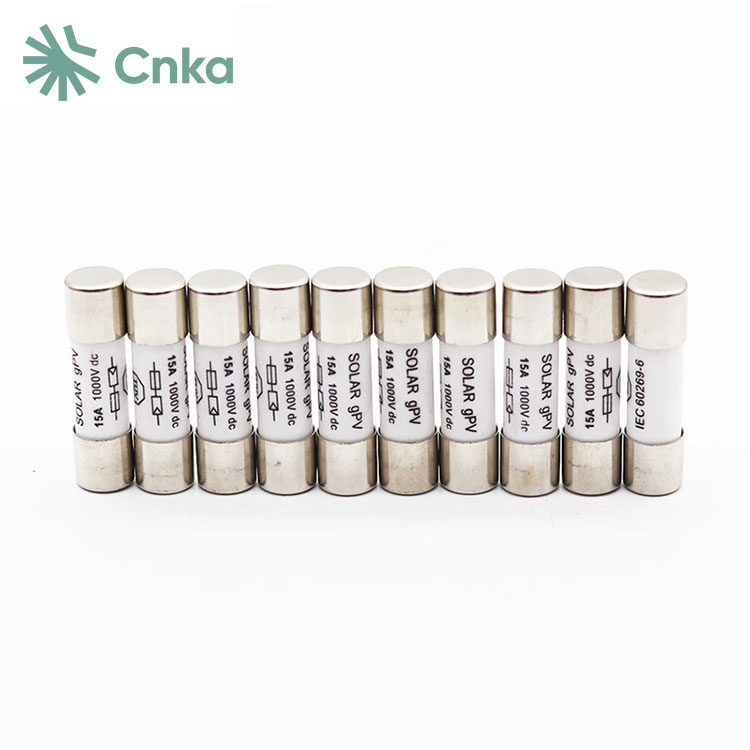

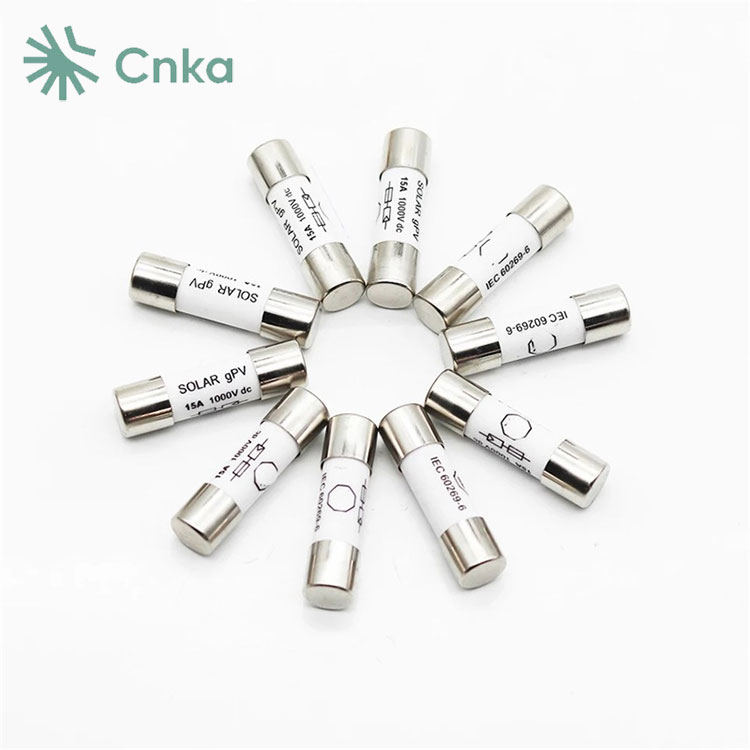

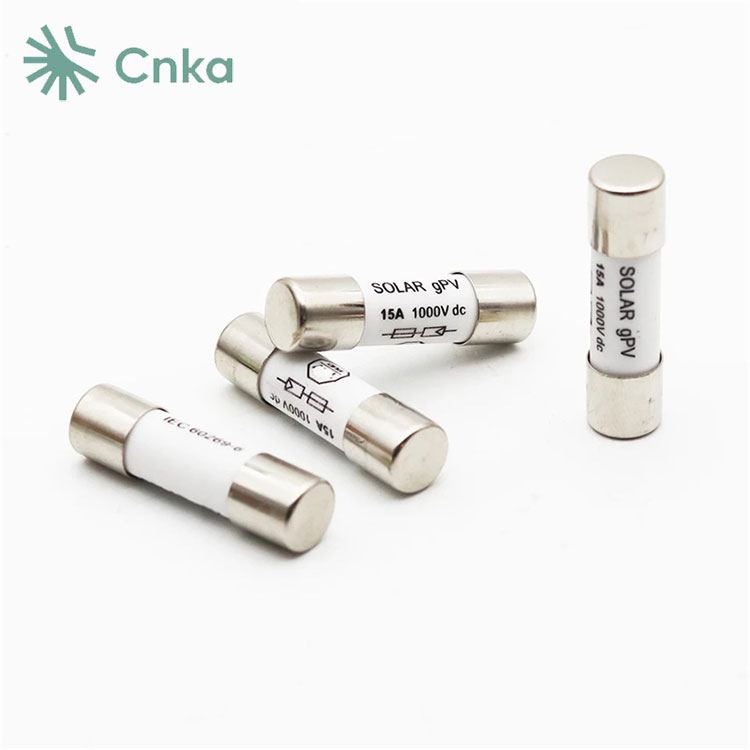

China Suppliers CNKA offers discounted prices on 15A 1000V DC fuses that reliably protect PV modules and wiring from reverse overload currents, ensuring safety against DC power supply-related threats. With the growing demand for high-power solar cells and the expansion of photovoltaic systems and wind power grid-connected generation technologies, the use of high-voltage DC fuses to safeguard the safe grid-connected operation of photovoltaic systems has become a crucial international technical measure.
|
Product Model |

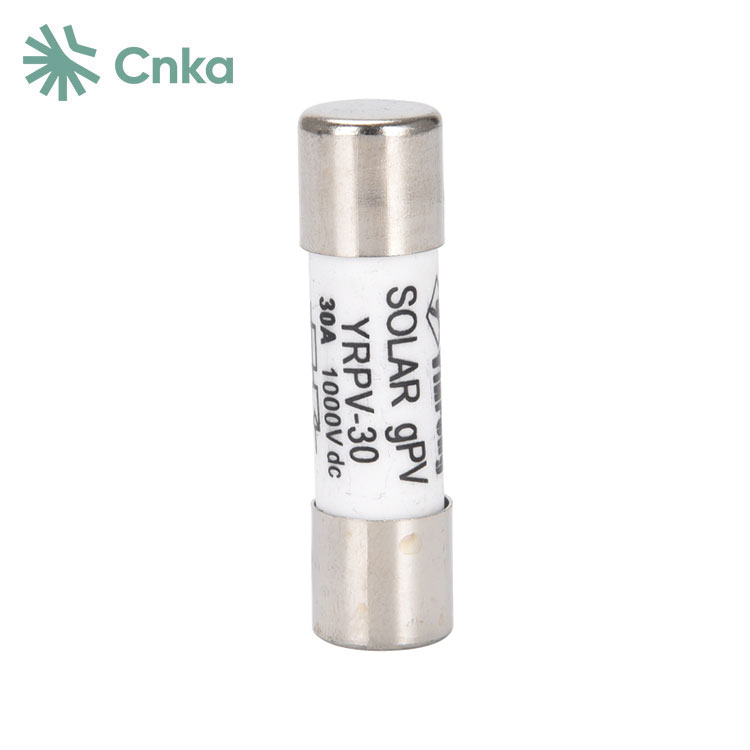

YRPV-30 |
|
Colour |
White |
|
Breaking capacity |
20kA |
|
Rated Current (A) |
2A,3A,4A,5A,6A,8A,10A,12A,15A,20A,25A,30A,32A |
|
Rated Voltage(V DC) |
1000 |
|
Installation |
Rail installation |
|
Fuse link size(mm²) |
10*38 |
1 Provides full protection for photovoltaic fuses, reliably cutting off as low as 1.3 × 1 (fuse rating) @ 1000Vdc, particularly suitable for thin-film cells and 456 crystalline silicon panels.
2 The environmentally friendly and recyclable photovoltaic fuse fully takes into account the operation and environmental impact of photovoltaic panel systems.
1 BSU: Fuse for overcurrent protection in photovoltaic panel grid connections and battery packs.
2 FLZ: Ultra-fast fuse for photovoltaic cell collector current systems.
3 BTZ: Ultra-fast fuse for overvoltage and short-circuit protection in photovoltaic systems.
