Solar Pv Isolator Switch

CNKA solar pv isolator switch Introduction

China Factory CNKA offers discounted solar PV isolator switches made in China. These switches are designed specifically for isolating DC circuits, commonly used in DC power systems like photovoltaic power plants. They help cut off potential arcs in the circuit, preventing dangerous accidents and ensuring safe operation.

CNKA solar pv isolator switch Parameter (Specification)

CNKA solar pv isolator switch Feature

1  This product is specifically designed for DC applications, with a rated current range of 16 to 32 amperes, making it suitable for various uses.

2  The product supports multiple installation methods and features a modular design for flexible installation.

3  It includes an electric shock self-cleaning design to reduce resistance and energy consumption, extending its service life.

4  Available in 2-4 poles.

5  The maximum on/off time is less than 5ms.

6  Made from imported UL94V-0 flame-retardant material, suitable for harsh application environments.

7  Complies with various international certification standards, including IEC, UL, TUV, CE, and more.

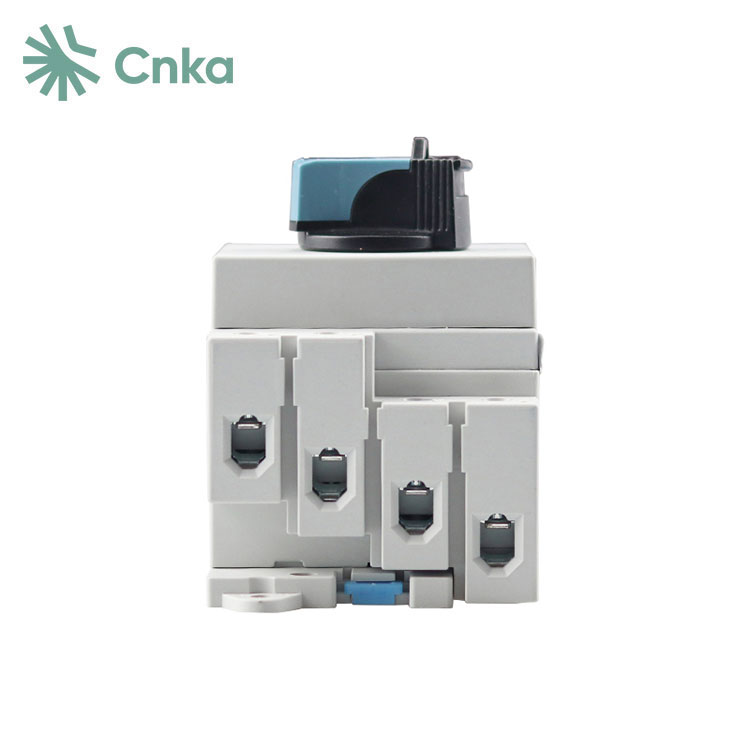

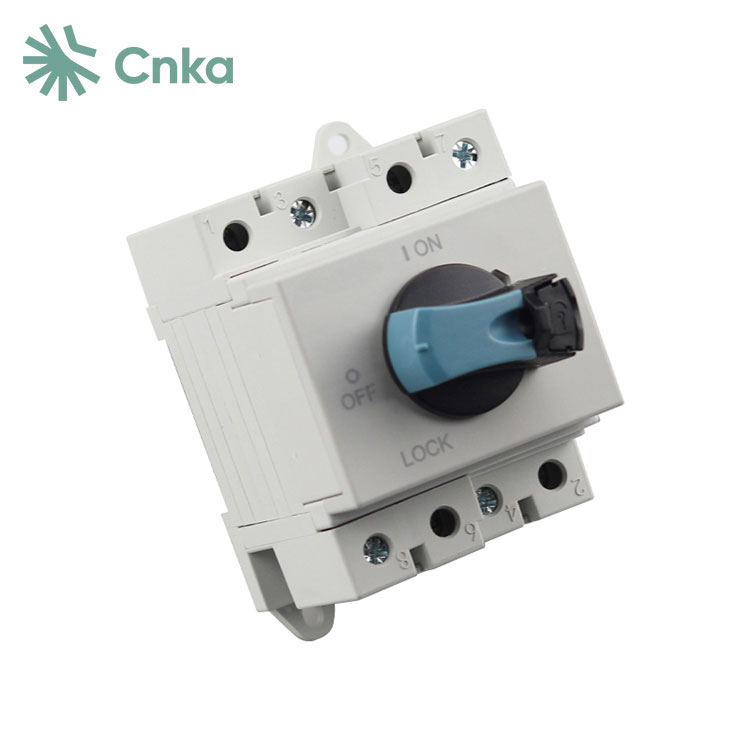

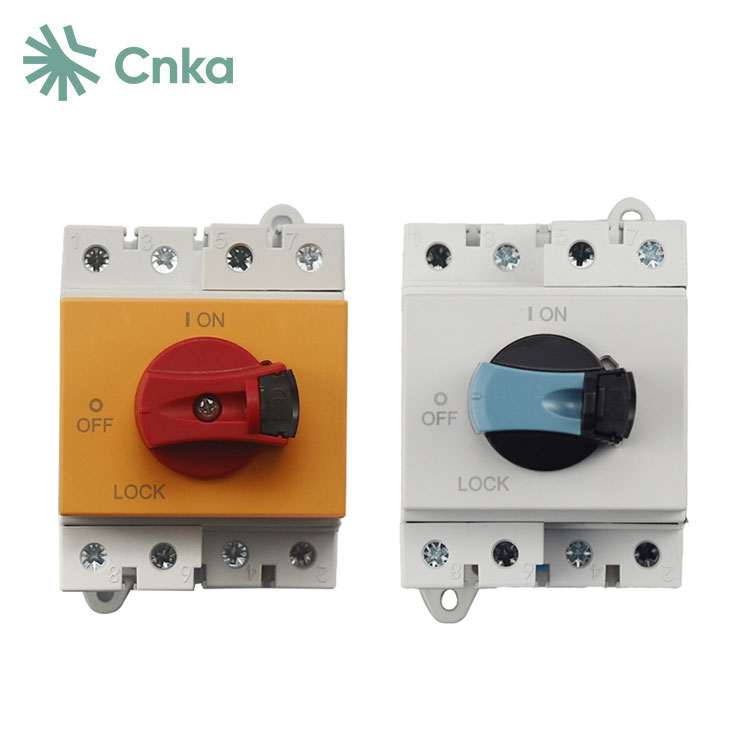

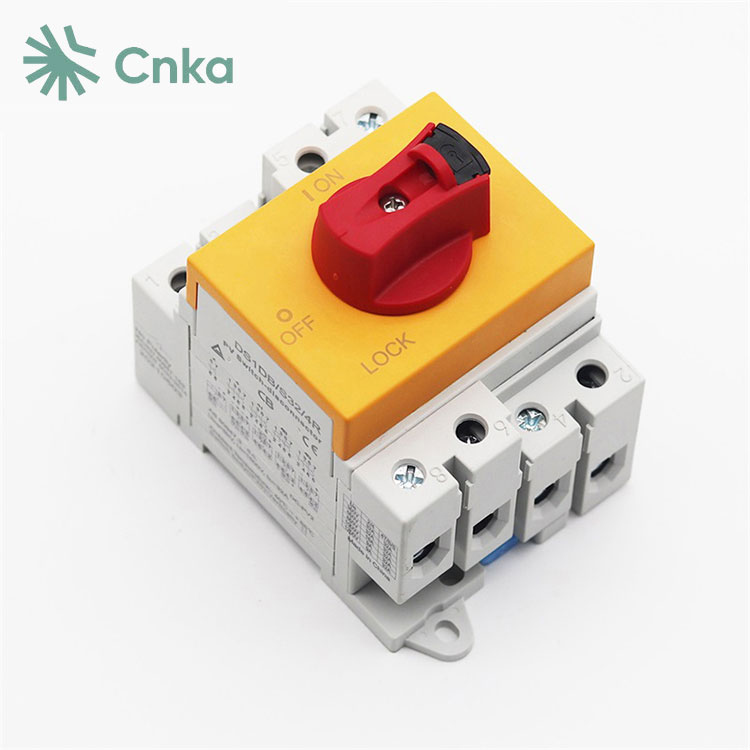

CNKA solar pv isolator switch Details

CNKA solar pv isolator switch Dimensions and wiring

CNKA solar pv isolator switch Principle

1  If the installer does not first disconnect the input wiring of the battery panel and inverter, and plugs or unplugs the DC terminals during the installation of the photovoltaic system, DC power may enter the DC side of the inverter. This can pose a risk of electric shock to personnel and may also damage the inverter and other downstream equipment.

2  In photovoltaic power plants, inverters are crucial components. To ensure continuous power generation, inverters typically lack a start/stop button. As long as there is sunlight, even during rainy weather, the solar panels generate electricity, and the inverter operates automatically. However, this can create issues when replacing or repairing the inverter. Although the AC side may be disconnected via the installed AC circuit breaker, the DC side may still be live. If the inverter cannot isolate the DC power from the solar panels, there is a risk of electric shock and equipment damage.

3  Currently, most inverters on the market lack internal electrical isolation and may allow backflow from the AC side to the DC side. This can lead to electric shock hazards during maintenance if physical isolation of the DC power is not achieved.
