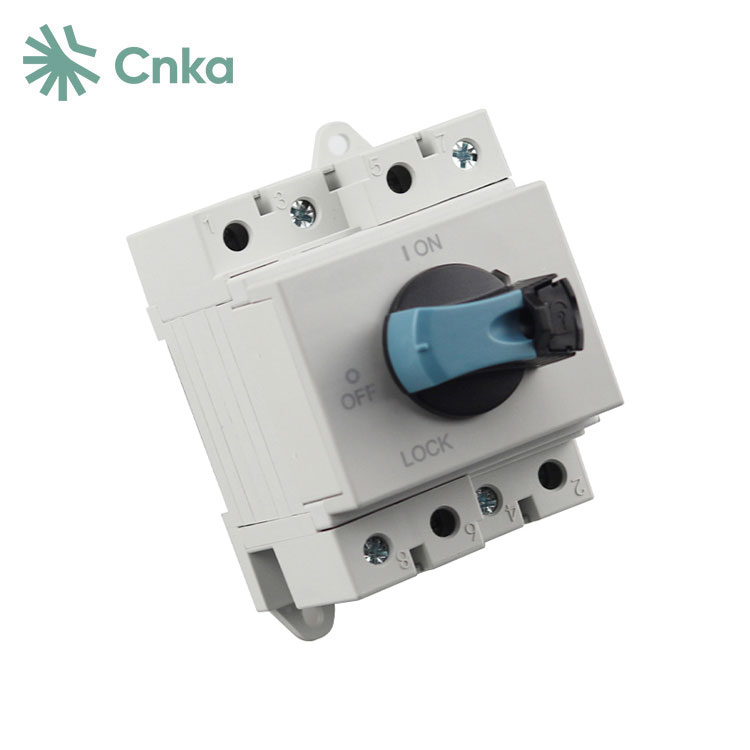

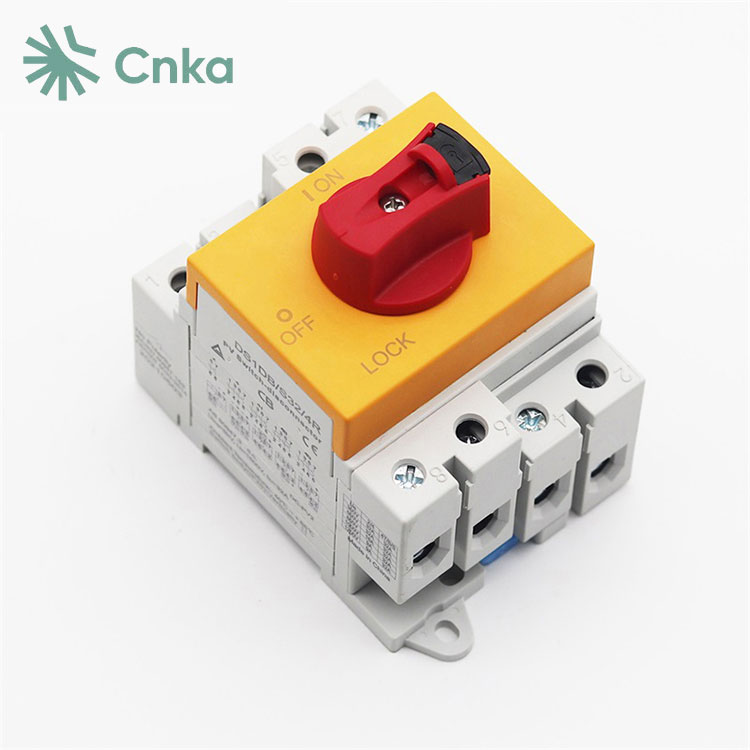

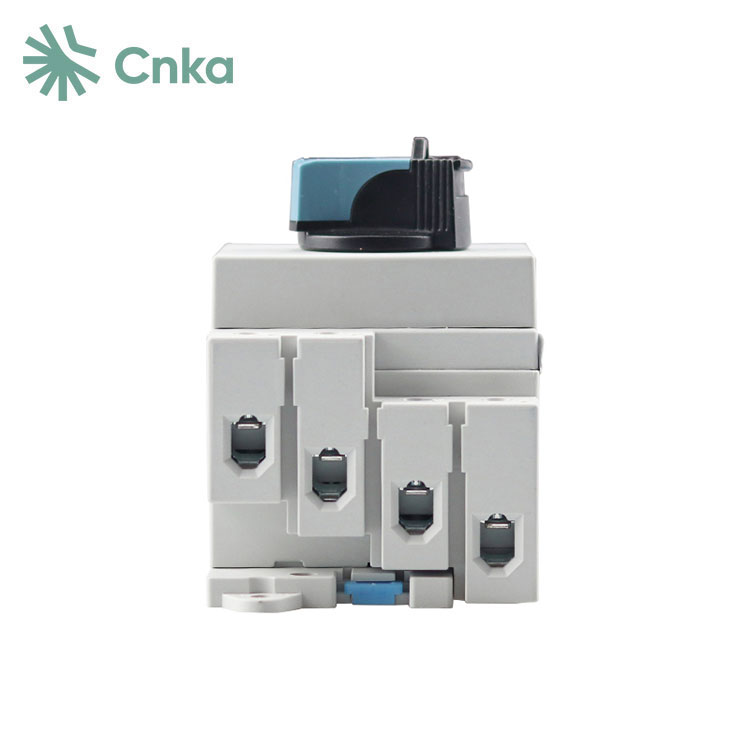

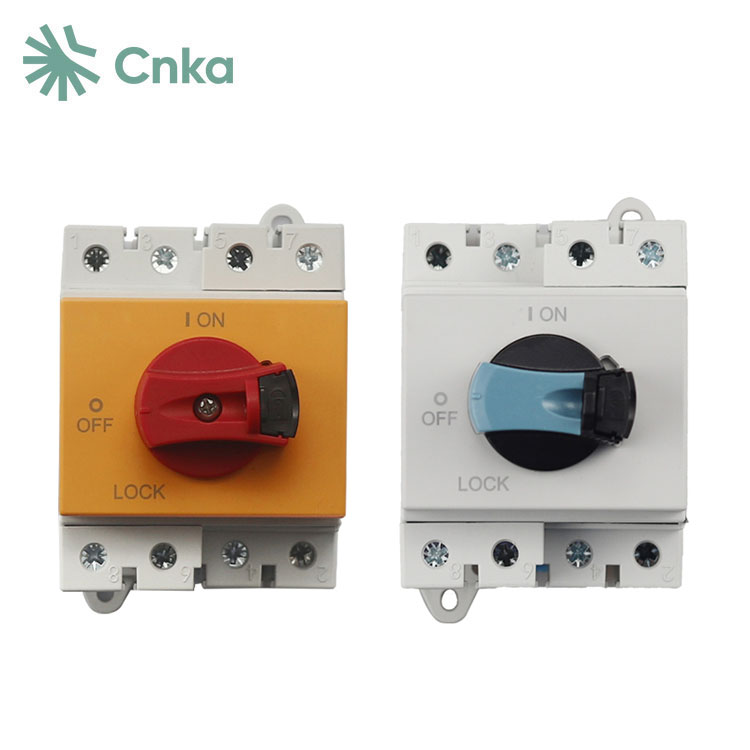

China Manufacturers CNKA offer easy-to-maintain, customized PV DC isolator switches suitable for lines up to 1000VDC, with a rated current not exceeding 32A. These switches provide on-load segmentation and effective isolation, primarily used in the photovoltaic sector.
|
Product Model |
DS1DB-S32 |
|
Pole |
4P |
|
Rated Current(A) |
32A |
|
Rated Voltage (Vdc) |
1000 |
|
Color |
Yellow |
|
Working Temperature |
-40℃~+70℃ |
|
Distance of contacts(per pole) |
8mm |
|
Pollution degree |
2 |
|
Mechanical Life |
Not less than 10000 times |
The DC isolation switch addresses AC/DC short circuit issues in the operating system, a problem arising from insulation damage between the AC motor casing and the reduction mechanism, often due to DC exposure or other factors, or AC motor leakage. It effectively safeguards power rectifier equipment, preventing substantial economic losses and personal injuries.
Q: Can you send your staff to install the equipment for us?
A: Our electrical equipment is designed for easy installation, and ordinary electricians can handle the setup.
Q: What can I buy from you?
A: You can purchase DC circuit breakers, Surge Protective Devices, PV fuses, isolator switches, solar connectors, and more.
Q: Can I deliver goods from another supplier to your factory and have them loaded together?
A: Yes, that’s no problem.
