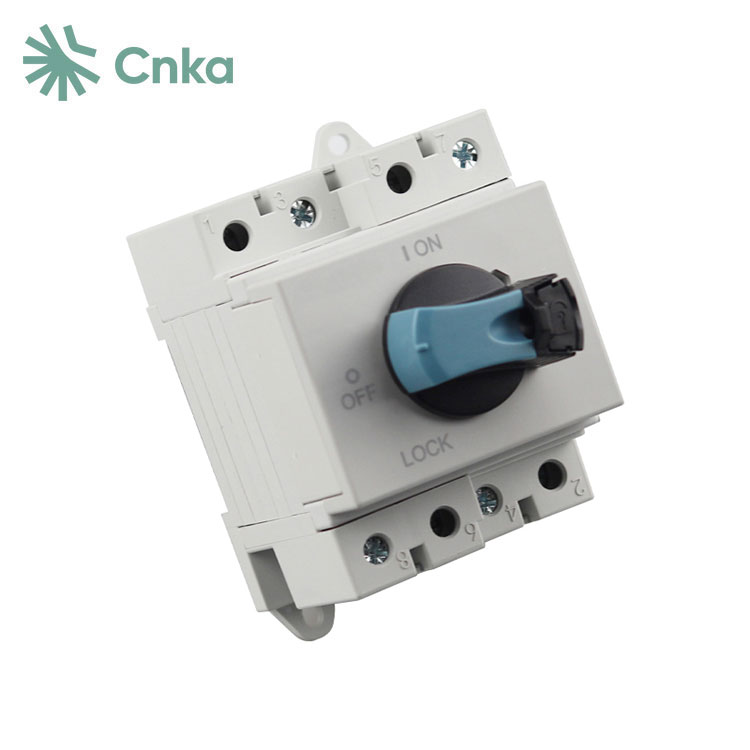

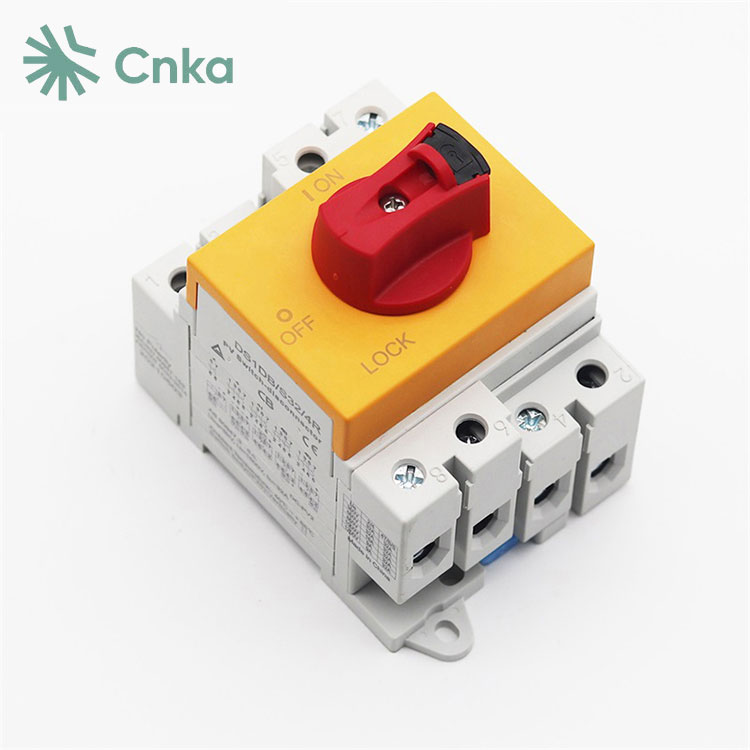

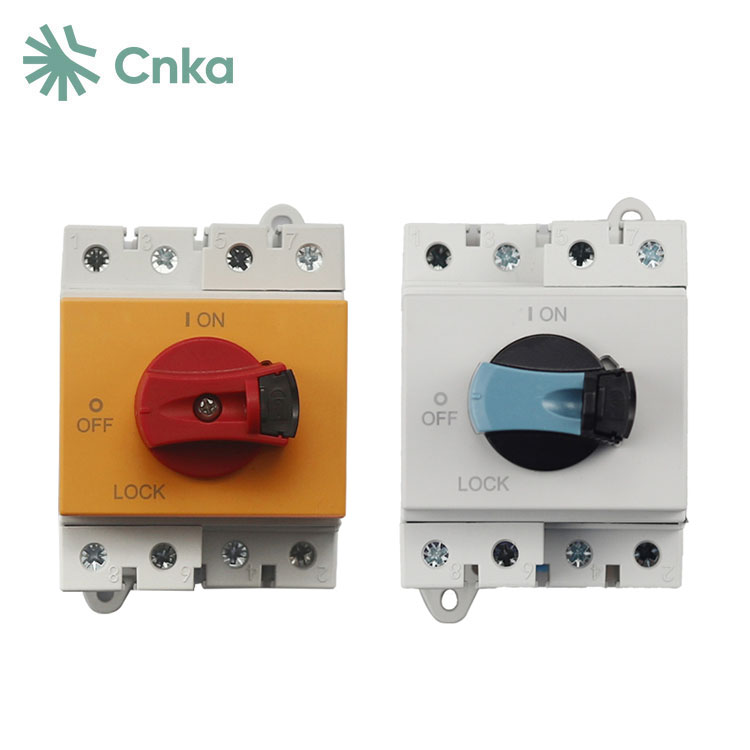

China CNKA offers discounted DC disconnect switches for solar panels, specifically designed for global solar installations. These devices are used to isolate the circuit between solar cell arrays and solar inverters, enabling the disconnection of the photovoltaic array during system installation or maintenance. Typically installed on the roof, these DC disconnect switches effectively protect the solar cell array and solar inverter from high voltage or other circuit faults.
|
Product Model |
DS1DB-S32 |
|
Pole |
4P |
|
Rated Current(A) |
32A |
|
Rated Voltage (Vdc) |
1000 |
|
Color |
Yellow |
|
Working Temperature |
-40℃~+70℃ |
|
Distance of contacts(per pole) |
8mm |
|
Pollution degree |
2 |
|
Mechanical Life |
Not less than 10000 times |
1. 1Available in 2-pole and 4-pole single/double series for use in distribution boxes.
2. Our products are certified by TUV, SAA, and CE.
3. The switch can be locked in the closed position.
4. The user-friendly locking mechanism prevents unauthorized access by children or others.
5. Designed for DIN rail installation.
Q: What’s your shipment method?
A: We offer shipping by express, air, sea, or train.
Q: What are your advantages compared to other suppliers?
A: We offer a complete range of product specifications and a rich variety. With over ten years of experience in production, research and development, and sales, our team is both young and dynamic.
Q: Do you provide support or service for after-sales?
A: We offer a standard quality guarantee of 24 months and provide 24-hour online support for emergency issues.
