CNKA has always been committed to creating a reliable brand of solar AC combiner boxes, valuing talent, strictly controlling quality, and promoting scientific development. The company has achieved certification for the ISO9001 quality system, ISO14001 environmental management system, and OHSAS18001 occupational health and safety management system. Additionally, CNKA has invested in the construction of a high-tech intelligent industrial park in Wenzhou, China, along with a new research and development center and a marketing center.
|

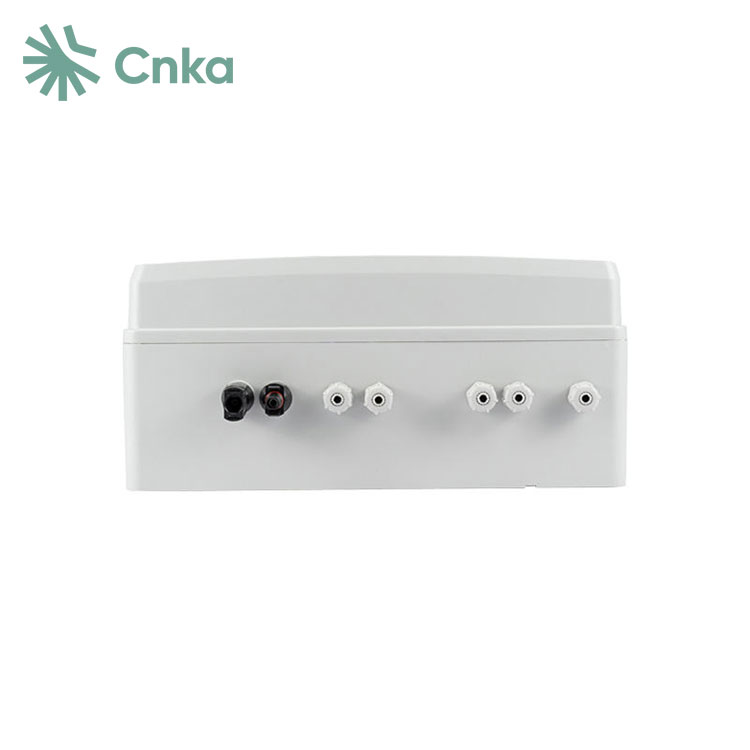

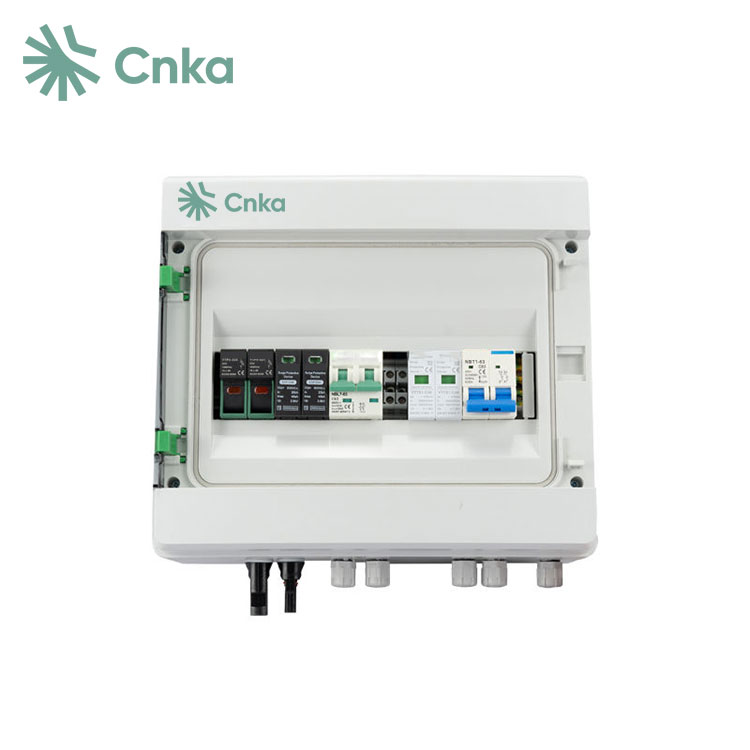

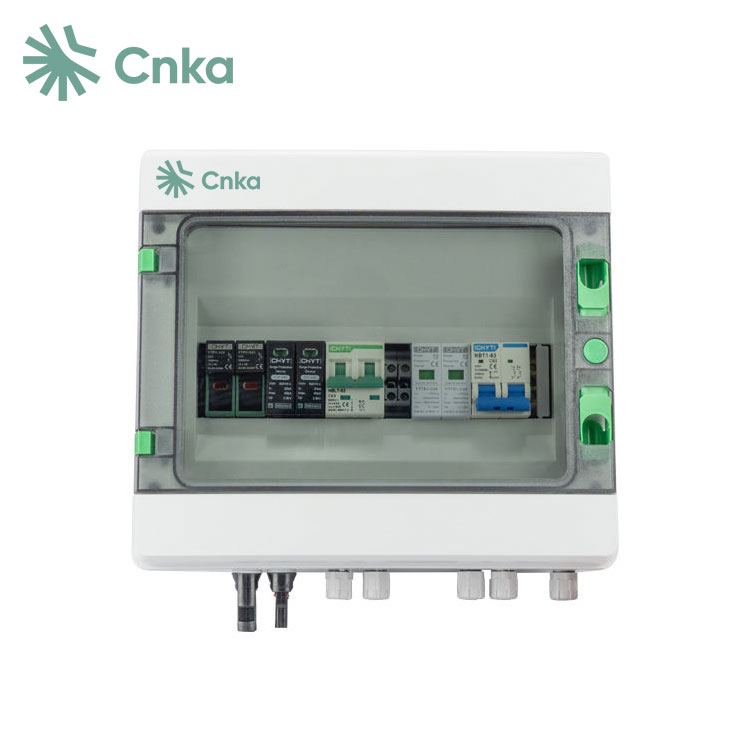

YTPV1-1 Solar PV DC+AC 1 in 1 out Combiner Box |
|
|
Rated voltage of photovoltaic system |
DC 600V |
|
Max input amp for each string |
15A(changecble) |
|
Input strings |
1 |
|
Number of output strings |
1 |
|
Inverter |
1.5-30kW |
|
DC System |
|
|
DC Fuse |
1P 15A |
|
DC MCB |
2P 63A |
|
DC SPD |
2P 600V 20-40kA |
|
DC SPD Max discharge current |
40KA |
|
AC System(Single Phase) |
|
|
AC MCB |
2P 63A |
|
AC SPD |
2P 275V 20-40kA |
|
System |
|
|
Protectiongrade |
IP65 |
|
Cable size of output terminals |
4~6 mm2 |
|
Cable size of PE-terminal |
2.5~4 mm² |
|
Solar connector |
Optional |
|
Box material |
PVC |
|
Installation method |
Wall mounting type |
|
Operating temperature |
-25℃-+60℃ |
|
Installation:indoors/outdoors |
Yes |
|
Mechanical parameter |
|
|
Widh*high*Depth(mm) |
300*260*140 |

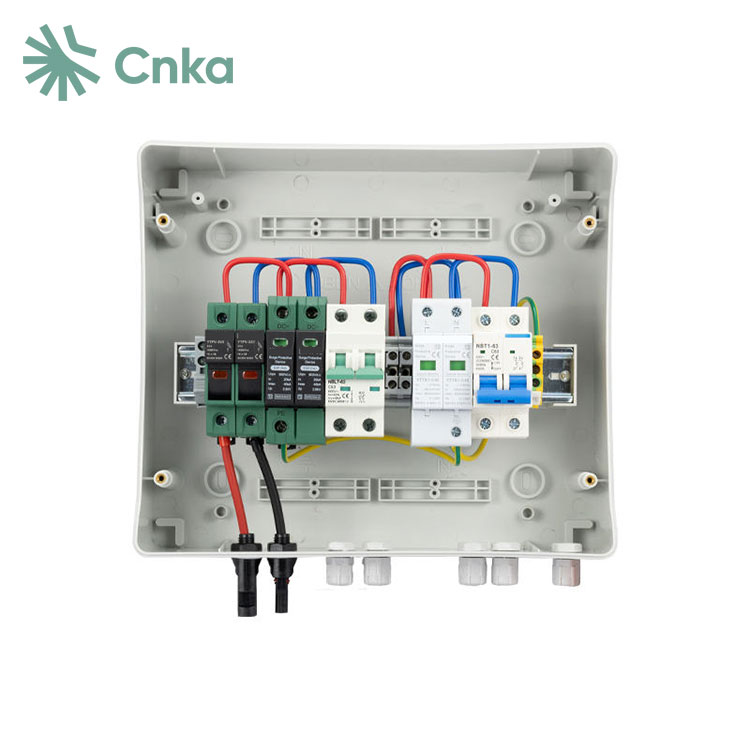

· With DC 1000V fuse, 15A, 2 pcs
· With DC 600V surge protection device, 2-pole, 1 pc
· With DC 600V circuit breaker, 2-pole, 1 pc
· With AC 275V surge protection device, 2-pole, 1 pc
· With AC 400V circuit breaker, 2-pole, 1 pc
· With solar connector, 1 pair
Q: How far is your factory from the city hotel?
A: About 10 minutes by car.
Q: Where is your factory located?
A: Our factory is located in Liushi, Yueqing, Zhejiang Province, the capital of electrical appliances in China.
Q: Is OEM acceptable?
A: Yes, our company is available for Retail, Wholesale, OEM, and ODM.
