2 String Solar Combiner Box

CNKA 2 string solar combiner box Introduction

China supplier CNKA offers wholesale 2-string solar combiner boxes with IP65-rated DC photovoltaic wiring. These 2-string solar combiner boxes support 2 strings, 2 inputs, and 1 output of DC600V photovoltaic current convergence. They feature anti-reversal, overcurrent, overvoltage, and lightning protection functions.

CNKA 2 string solar combiner box Parameter (Specification)

CNKA 2 string solar combiner box Feature

1. Equipped with fault current protection for each photovoltaic string.

2. Designed to comply with IP65 standards, offering waterproof, dustproof, UV-resistant, and strong adaptability characteristics.

3. The module features a reverse connection function, effectively preventing damage to back-end equipment caused by the reverse connection of the positive and negative terminals.

4. Equipped with high-voltage circuit breakers, specifically designed for photovoltaic module output control.

5. The product boasts excellent insulation performance.

6. This product utilizes a thickness of 12mm or higher, combined with a powder-coated cold rolling process, resulting in a flat and smooth surface with a beautiful and durable appearance.

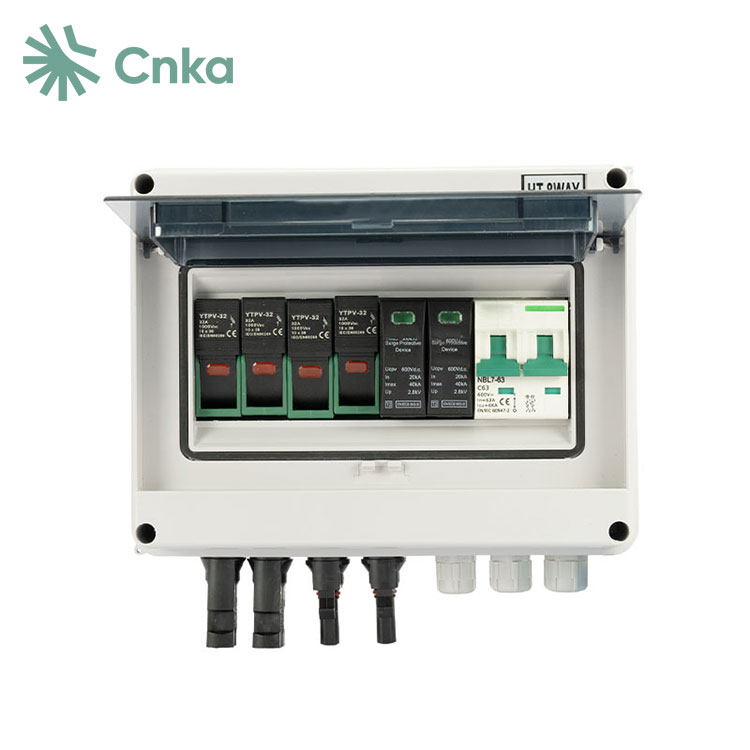

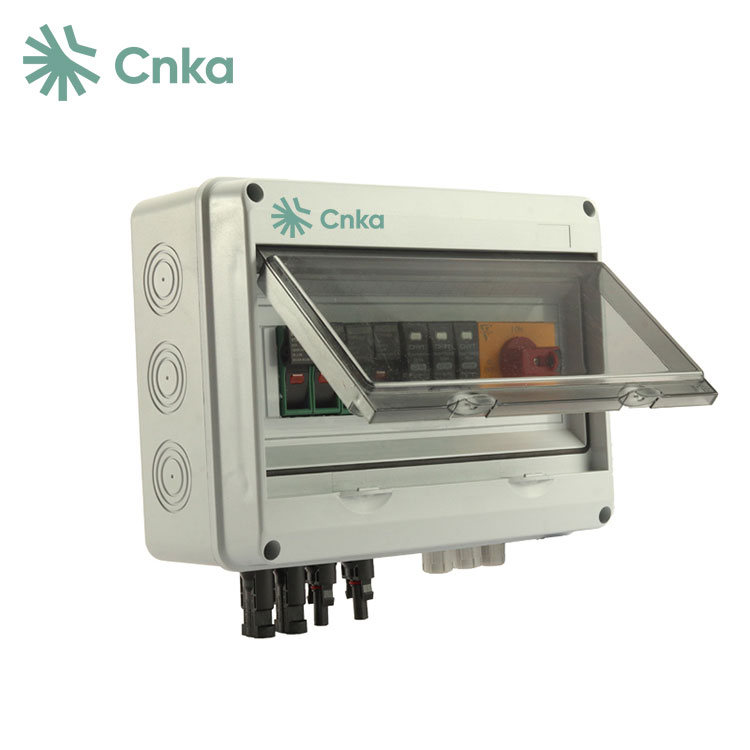

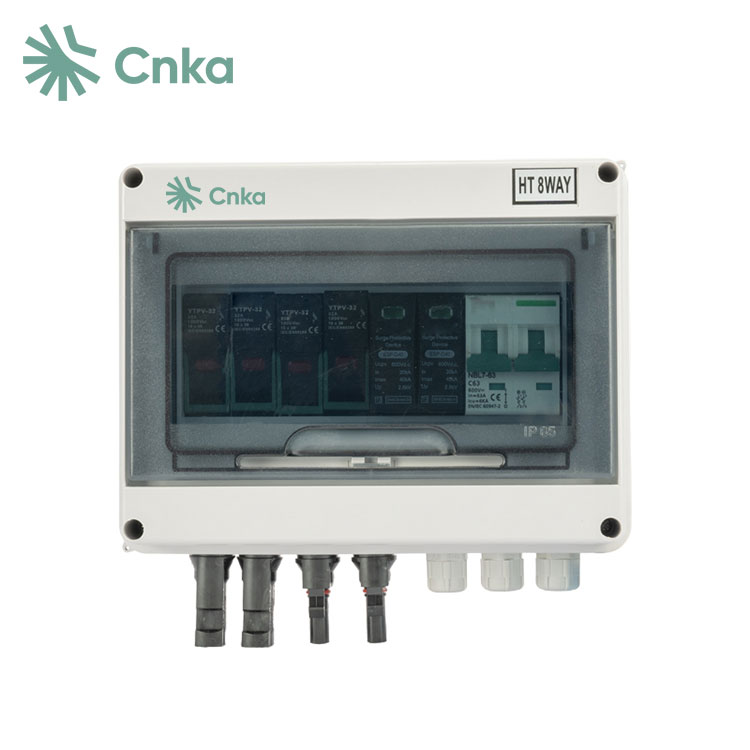

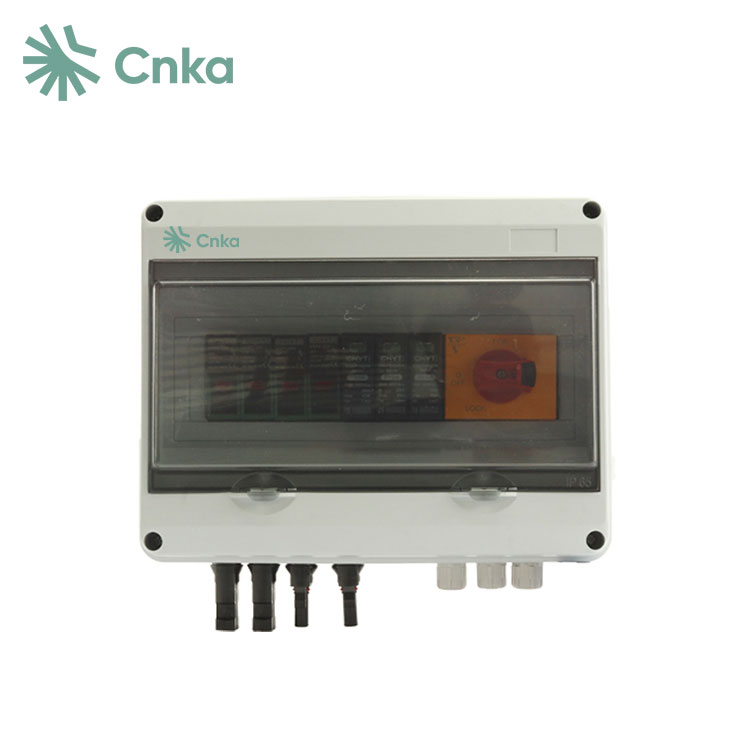

CNKA 2 string solar combiner box Details

CNKA 2 string solar combiner box Dimensions and wiring

CNKA 2 string solar combiner box FAQ

Q: What is a combiner box?

A: A combiner box serves as a central location for managing the wiring of multiple solar panels. By consolidating the connections, the combiner box creates a streamlined output that can be sent to an inverter or charge controller. This design not only ensures a cleaner appearance but also improves the efficiency and organization of the solar PV system.

Q: Where do you put a PV combiner box?

A: PV combiner boxes are typically installed between the solar panels and the inverters. Regular maintenance is advisable to prevent potential issues such as leaks.

Q: What is the voltage rating of DC MCBs?

 A: DC miniature circuit breakers (MCBs) are designed to operate within a voltage range of 12 to 1000 volts DC.
