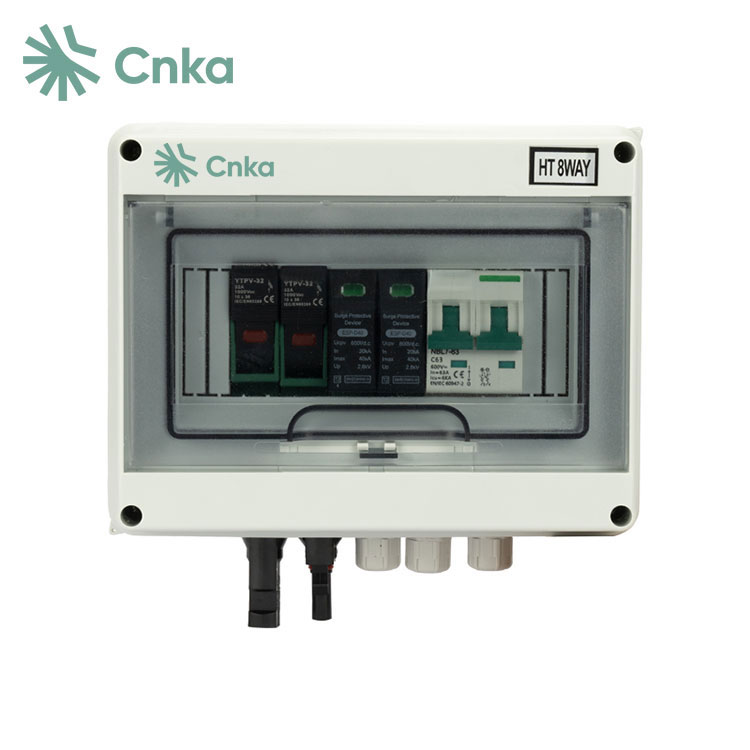

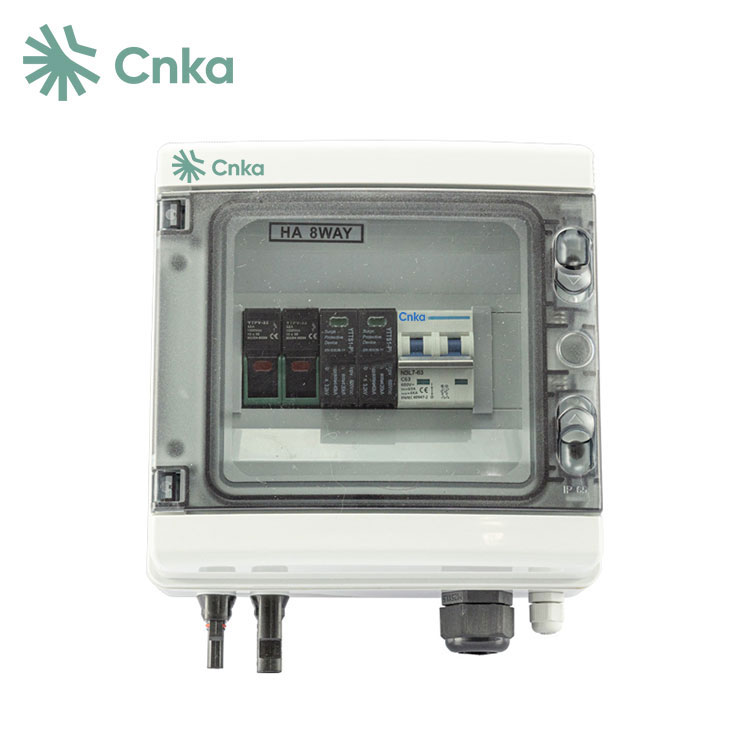

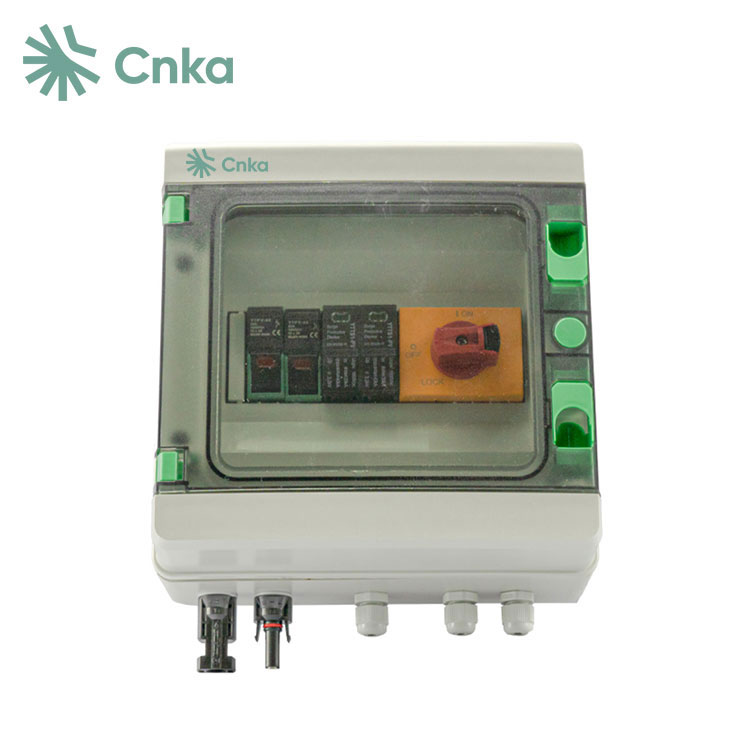

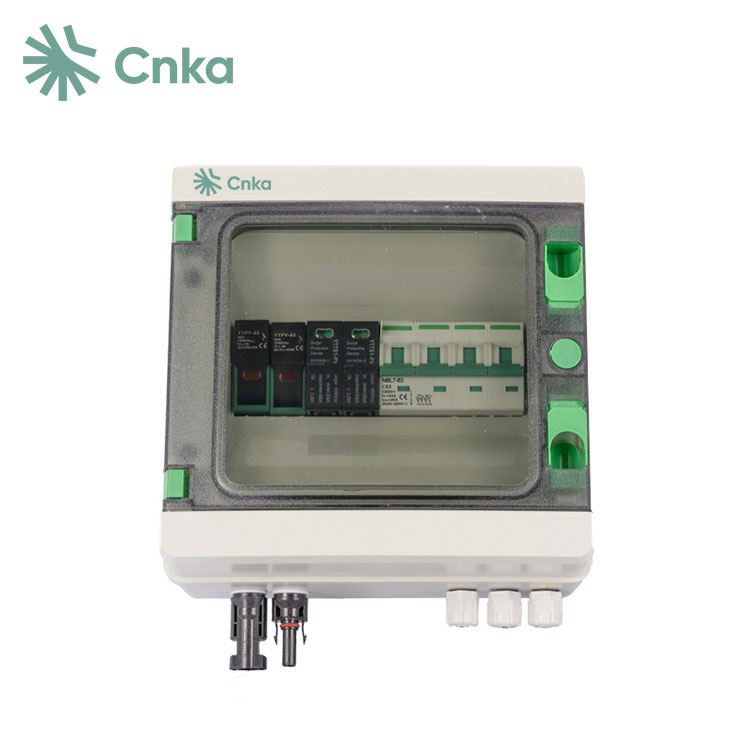

China supplier CNKA's newest DC combiner box for solar is currently in stock. To enhance the reliability of solar photovoltaic power systems and simplify installation and maintenance, DC combiner boxes are typically integrated for inspecting photovoltaic modules and inverters. This approach helps eliminate the need for individual line inspections and reduces failure rates in solar photovoltaic arrays and inverters. The DC combiner boxes are designed in a shoe-shaped gear form, ensuring convenient installation and maintenance.
|
Solar PVDC1 in 1 out Combiner Box |
|||||
|
Rated voltage of photovoltaic system |
DC 600V&1000V |
Max input amp for each string |
15A |
||
|
Input strings |
1 |
Number of output strings |
1 |
||
|
Waterproof grade ip65/Lighting protection |
|||||
|
Category of test |
ll grade protection |
Nominal discharge amp |
20KA |
||
|
Max discharge amp |
40KA |
Volt protection level |
3.2KV |
||
|
SPD Max operation voltage |
DC600V&1000V |
Poles |
2P |
||
|
Structure characteristic |
Plug push module |
|
|
||
|
System |
|||||
|
Protection grade |
lp65 |
Output switch |
DC circuit breaker &DC isolation switch |
||
|
Solar connector |
Standard |
Box material |
PVC |
||
|
Installation method |
Wall mounting type |
Operating temperature |
-25℃-+60℃ |
||
|
Installation:indoors/outdoors |
Yes |
|
|
||
|
|
Mechanical parameter |
||||
|
Widh*high*Depth(mm) |
200*155*95■ 215*210*100■ 212*207*118 |
||||
1 Wide operating temperature range.
2 Easy installation and maintenance.
3 Suitable for long-distance transportation.
4 Supports a wide range of DC voltage inputs, up to 600VDC/1000VDC.
5 IP65 protection level, suitable for outdoor operations.
6 Maximum current of 10A per PV input array.
Q: Do you have any agent in our country?
A: Currently, we have agents in Pakistan and Sri Lanka, and negotiations are ongoing with other countries. If you're interested, please feel free to contact us.
Q: How long does it take from Guangzhou to your factory?
A: Guangzhou is approximately 1000 kilometers away from us. By car, it takes about 13 hours.
Q: Do you have a detailed and professional installation manual?
A: We offer various products with specific installation guidelines. Please contact us for more information.
