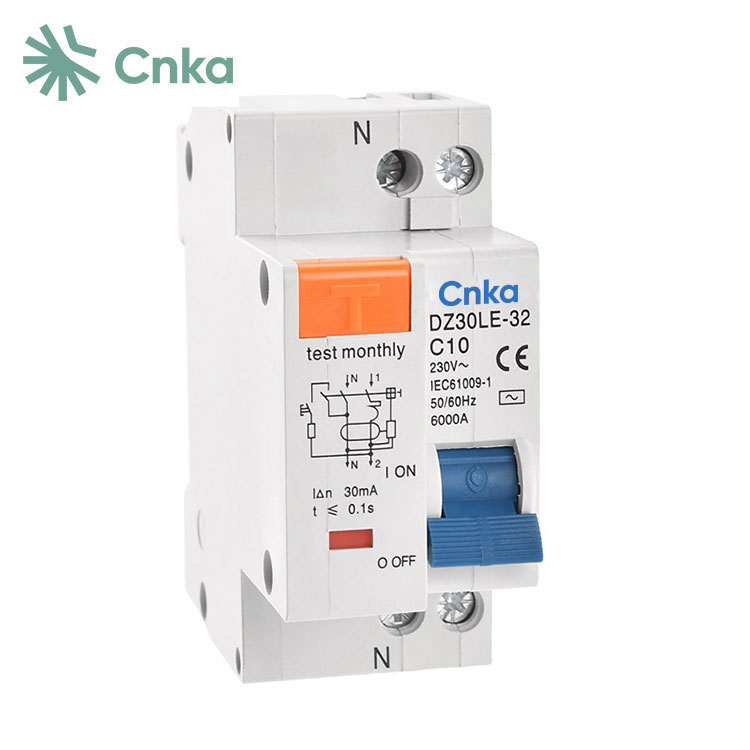

CNKA's wholesale residual current operated circuit breaker, made in China, is an advanced electrical protection device designed for single-phase 220V AC circuits. It provides critical overload and short circuit protection, safeguarding civilian electronic circuits from damage. In addition to its compact size and high breaking capacity, this breaker can disconnect live wires and prevent electric shock, even if the wires are connected incorrectly.
|

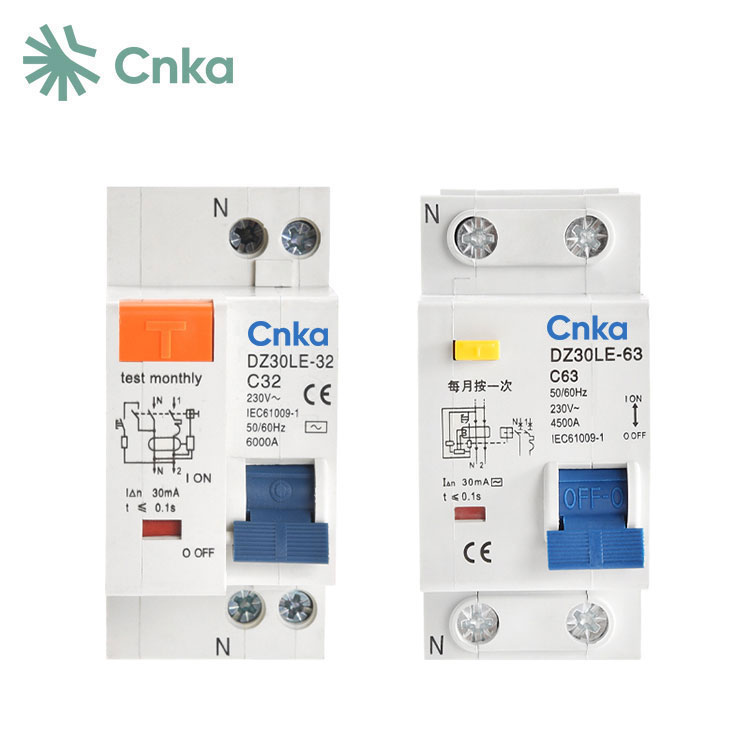

Product Model |
DZ30LE-32 |
DZ30LE-63 |
|
Pole |
1P+N |
|
|
Rated Current (A) |
10,16,20,25,32 |
4,063 |
|
Rated Residual Operating Current(mA) |
30 |
|
|
Rated Residual Non-operating Current (mA) |
15 |
|
|
Rated Voltage (V) |
230 |
|
|
Residual Current Off-time |
≤0.1S |
|
|
Short Circuit Capacity(Icu) |
6000A |
4500A |
1 If a ground leakage occurs, the RCBO's indicator window will turn red and the device will trip.
2 The indicator window will not turn red when the handle is opened.
3 This RCBO is an AC type residual current protector.
4 The product complies with the IEC61009 standard.
1 The visual window is clearly positioned to avoid misoperation, making it easy to see at a glance.
2 Features a safer and more reliable arc extinguishing structure.
3 The ergonomic, widened handle is designed for easy operation.
4 Made with a thermoset shell from flame-retardant thermosetting resin.
