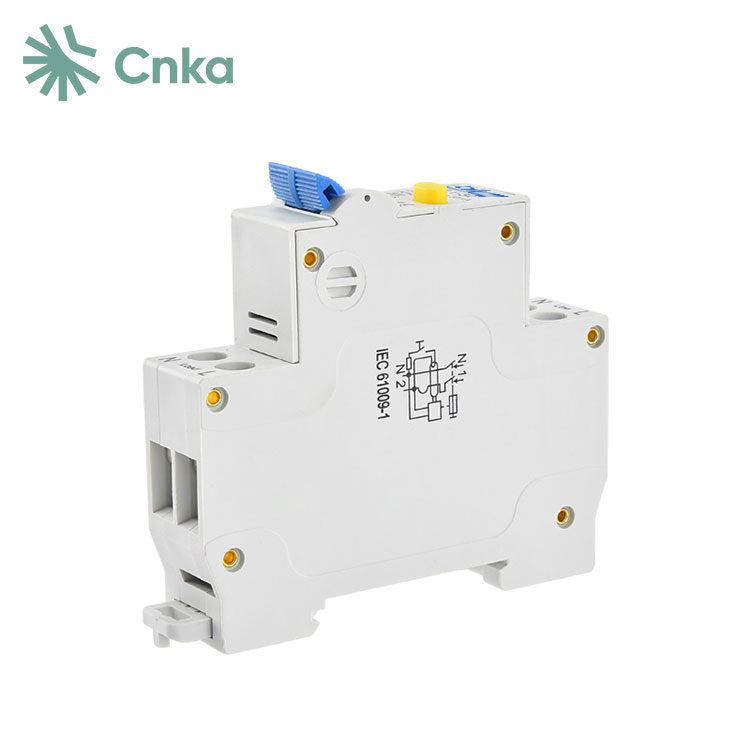

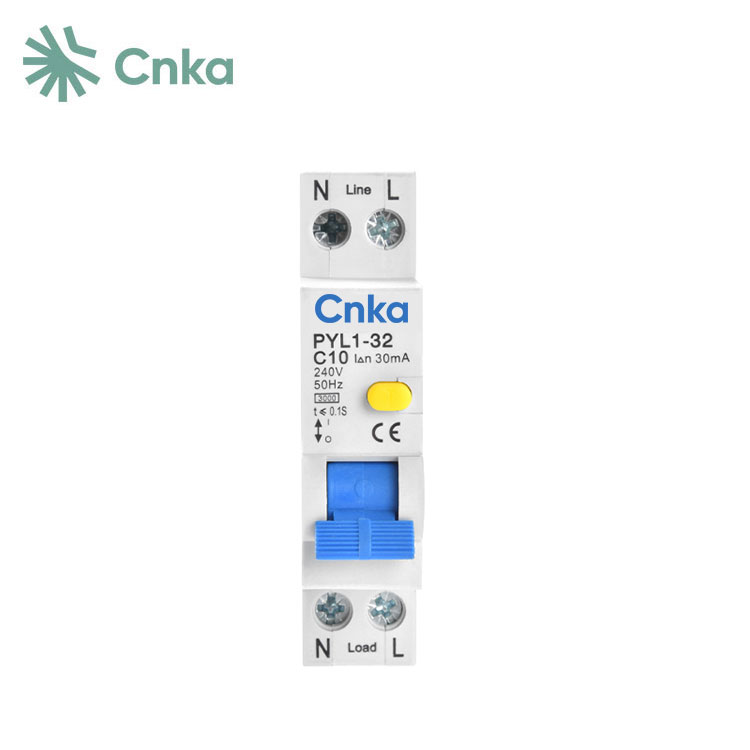

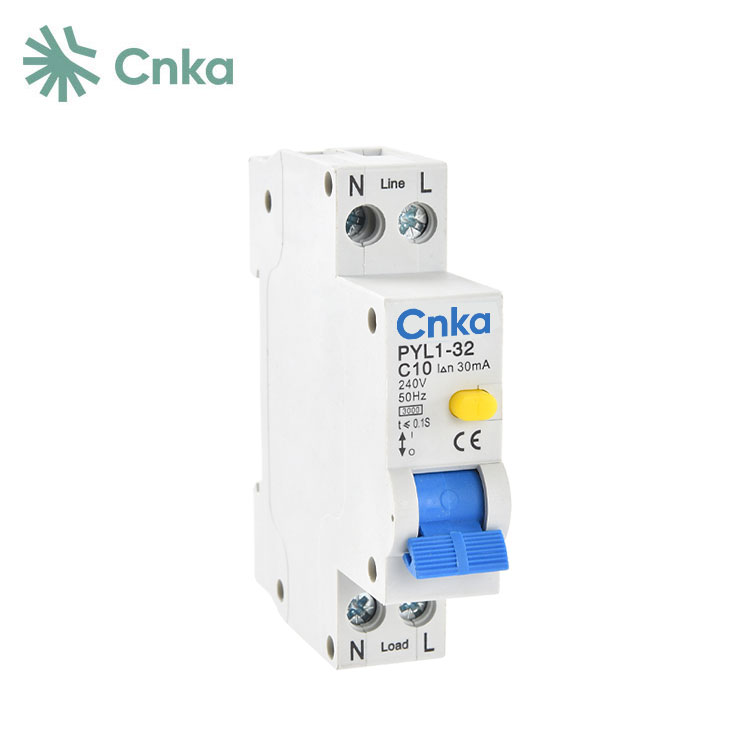

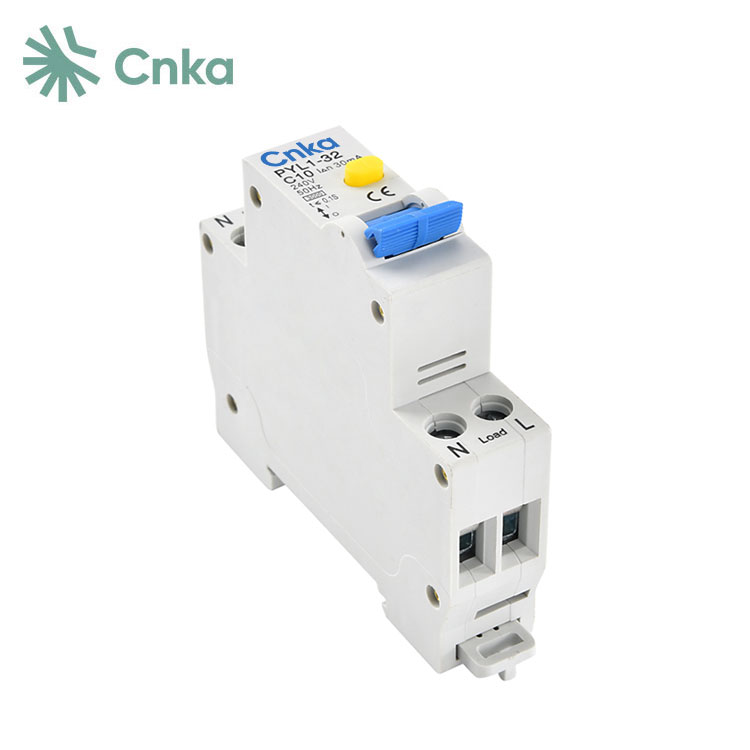

The CNKA RCCB residual current circuit breaker from our China factory is designed to protect electronic circuits from overload and short circuit damage. It is suitable for single-phase AC circuits with a frequency of 50/60Hz and a rated voltage of 230V or below. This RCCB features high breaking capacity, a compact size with a width of only 18mm, and simultaneously disconnects both neutral and live wires to prevent electrical hazards and fires. It is an ideal distribution protection switch for residential buildings and meets the IEC61009 standard.
|
Product Model |
PYL1-32 |
|
Pole |
1P+N |
|
Rated Current (A) |
6,10,16,20,25,32 |
|
Rated Residual Operating Current(mA) |
30 |
|
Rated Residual Non-operating Current (mA) |
15 |
|
Rated Voltage (V) |
240 |
|
Residual Current Off-time |
≤0.1S |
|
Short Circuit Capacity(lcu) |
3000A |
1 Provides ground fault leakage current protection and isolation functions.
2 Capable of withstanding high short-circuit currents.
3 Suitable for terminal and pin fork bus connections.
4 Refractory plastic components resist abnormal heating and strong impacts.
5 Automatically disconnects the circuit when leakage current exceeds the rated sensitivity.
6 The 1P+N pole has a width of 18mm.
1 Widened handle with a pinstripe cover for comfortable operation.
2 Thermoset shell made from flame-retardant thermosetting resin.
3 Yellow test button to verify the functionality of the protection feature.
