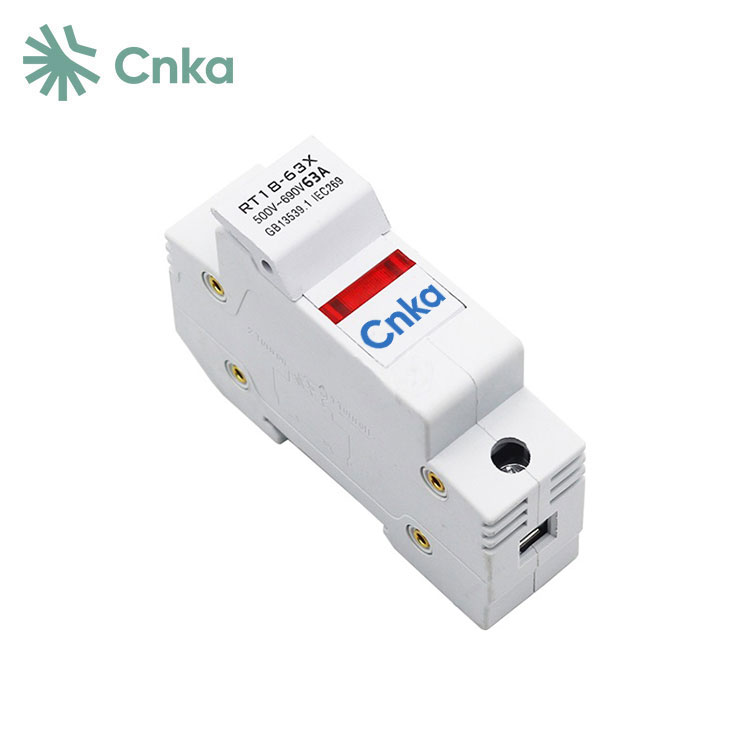

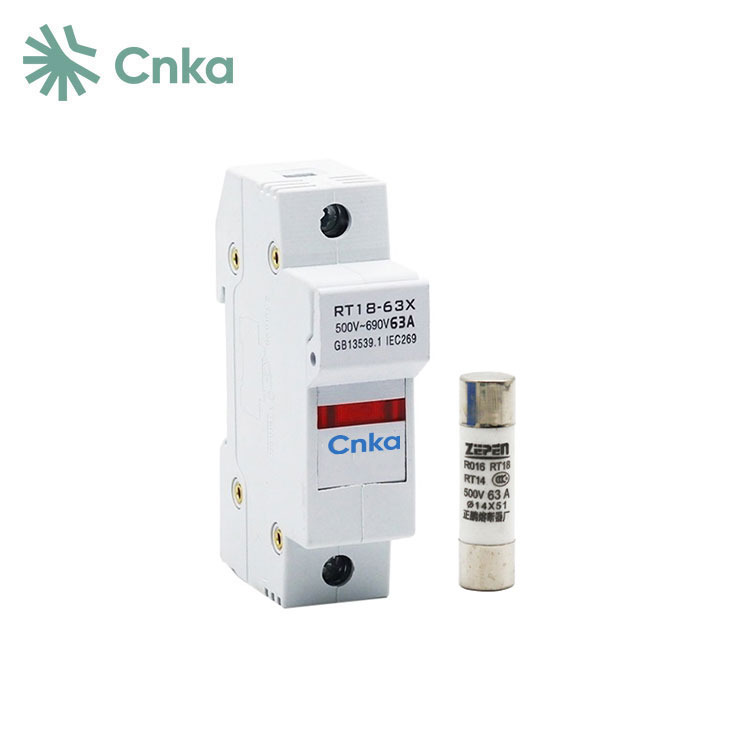

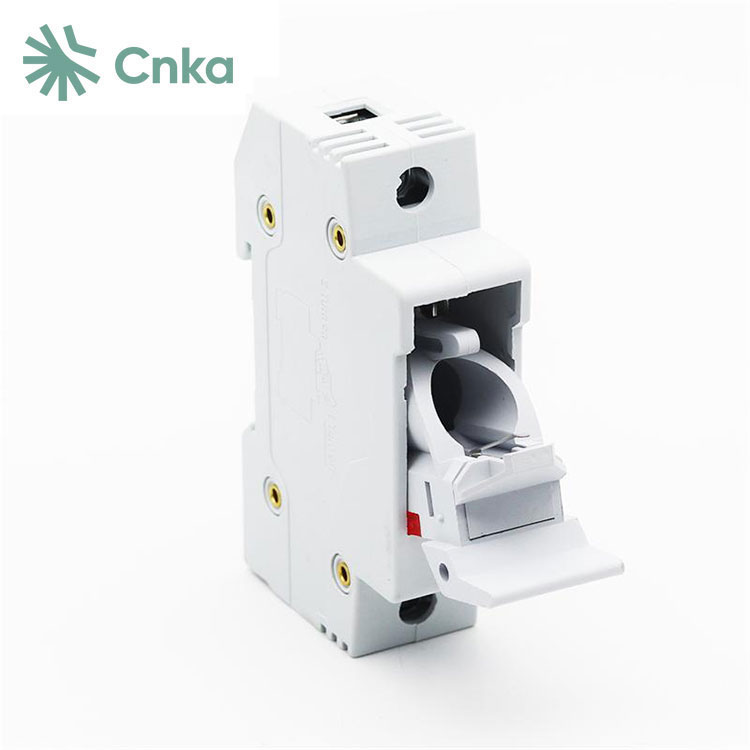

When the unstable current in the circuit rises abnormally to a certain level, the 1-63A AC fuse holder of the Chinese factory brand CNKA will be activated, automatically cutting off the power supply and ensuring the safety of the circuit.
|
Product Model |
RT18-63X |
|
Pole |
1P |
|
Colour |
White |
|
Rated Current (A) |
2,4,6,8,10,12,16,20,25,32,40,50,63 |
|
Rated Voltage(V) |
500 |
|
Breaking capacity(kA) |
50 |
|
Installation |
Rail installation |
|
Fuse link size(mm2) |

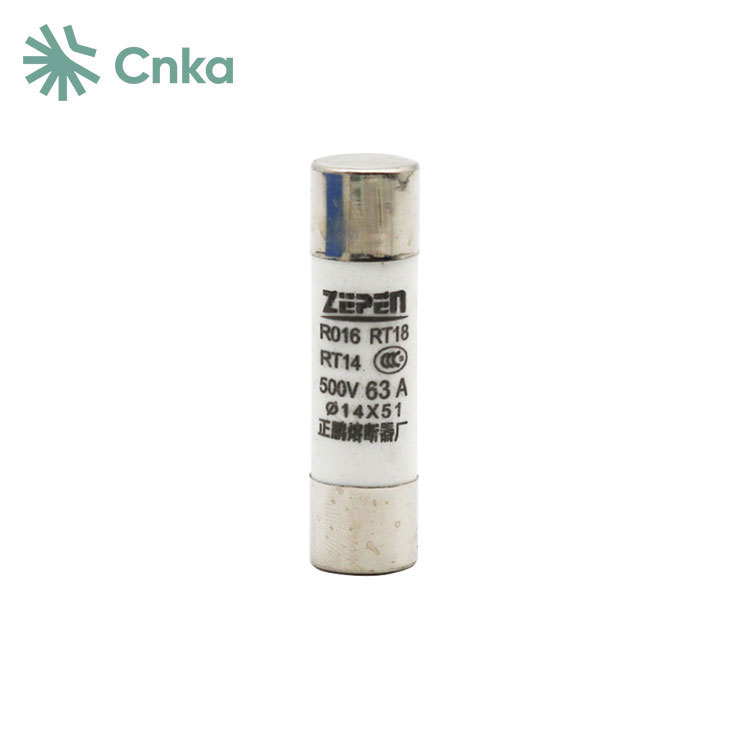

14*51 |
In summary, AC fuses consist of three main components. The main body is the core component responsible for interrupting the current when it melts. Fuses of the same type and specification must be made of the same material and have the same geometric dimensions, resistance values, and cutting characteristics. Usually, household fuses are made of lead alloy. The electrode part usually consists of two parts, which are essential for both the fuse body and the circuit; They must exhibit good conductivity and minimal installation contact resistance. The bracket part is usually a slender flexible cover used to secure the fuse, forming a rigid unit of three components for easy installation and use. It should have good mechanical strength, insulation, heat resistance, and flame retardancy to ensure that it will not break, deform, burn, or short-circuit during operation.
Q: What is your delivery time?
A: Sample orders take 5-7 days, while bulk orders take 12-15 days.
Q: When can I receive the quotation and detailed information after submitting the inquiry?
A: You will receive a response within 48 hours.
Q: What is the purpose of a DC fuse?
A: DC fuses are designed to interrupt circuits in the event of excessive current. Unlike AC circuits, extinguishing arcs in DC circuits is more challenging. However, DC fuses are crucial for protecting battery modules and battery packs, as they can effectively clear fault currents in DC systems
