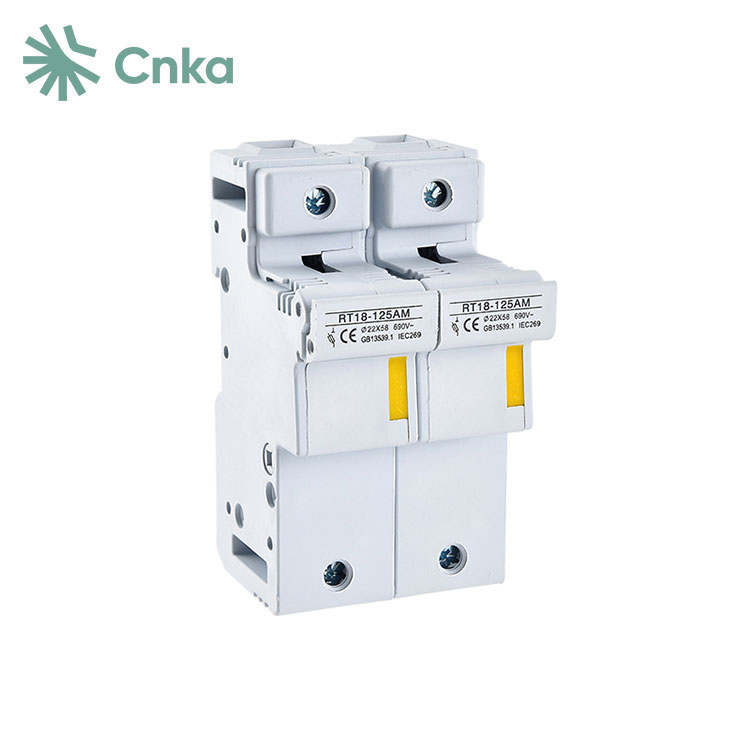

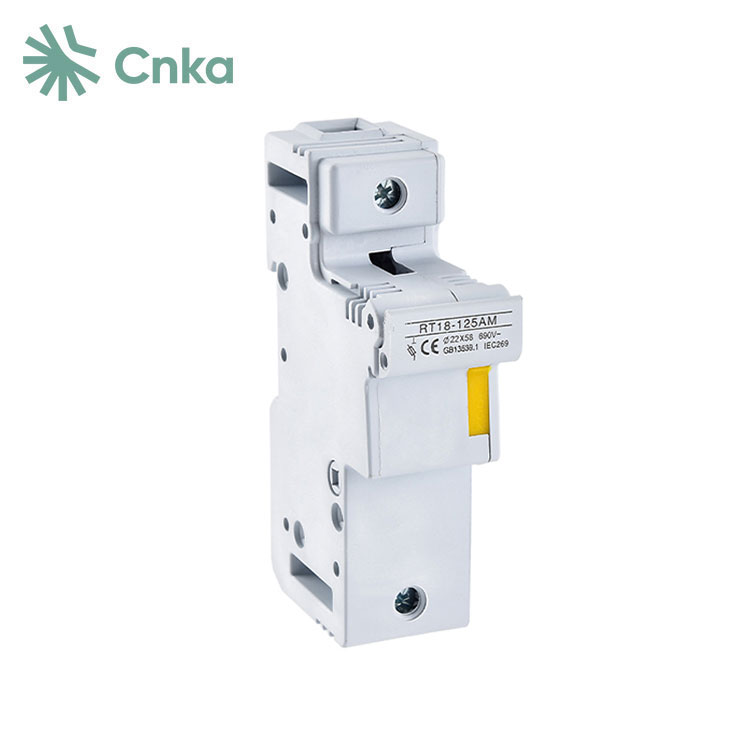

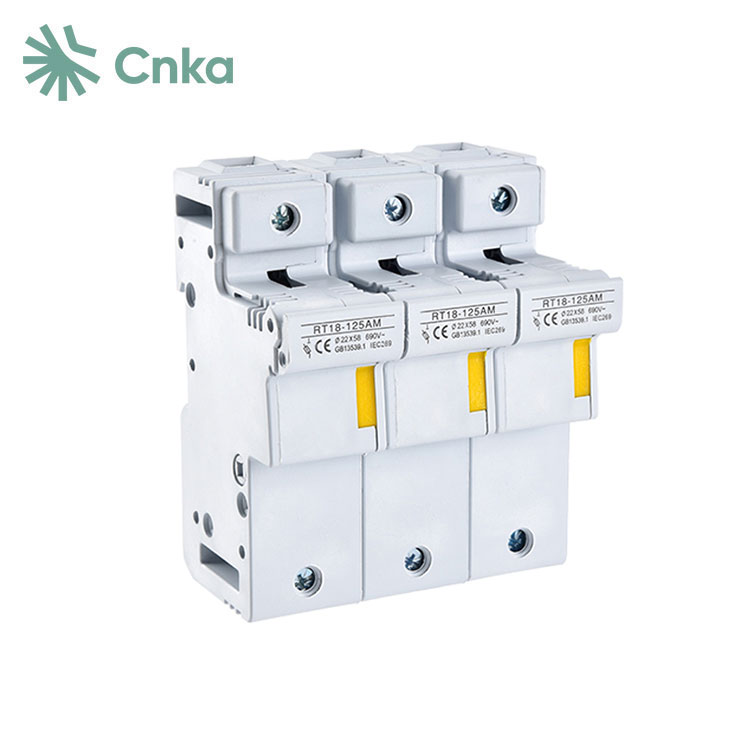

The 125A 22x58mm DIN rail AC fuse holder from Chinese manufacturer brand CNKA is an electrical device designed to provide rapid protection against overload currents in industrial environments. It is recommended to use a 22x58mm fuse to effectively protect all circuits, including motors, transformers, and low-voltage distribution and control systems. The fuse holder adopts VO standard flame-retardant shell and dead zone design, which is compatible with busbar installation. In addition, the 125A 22x58mm DIN rail AC fuse holder is available in 1-pole, 2-pole, and 3-pole configurations.
|
Product Model |
RT18-125AM |
|
Pole |
1P/2P/3P |
|
Colour |
White |
|
Rated Current (A) |
10,16,20,25,32,40,50,63,80,100,125 |
|
Rated Voltage(V) |
500 |
|
Breaking capacity(kA) |
50 |
|
Installation |
Rail installation |
|
Fuse link size(mm2) |
22*58 |
1.We recommend using it together with a 22 × 58mm fuse.
2. This product is suitable for distribution circuits of 250VAC, 380VAC, 500VAC, and 690VAC, as well as various industrial applications.
3. The rated current of this product is 125A.

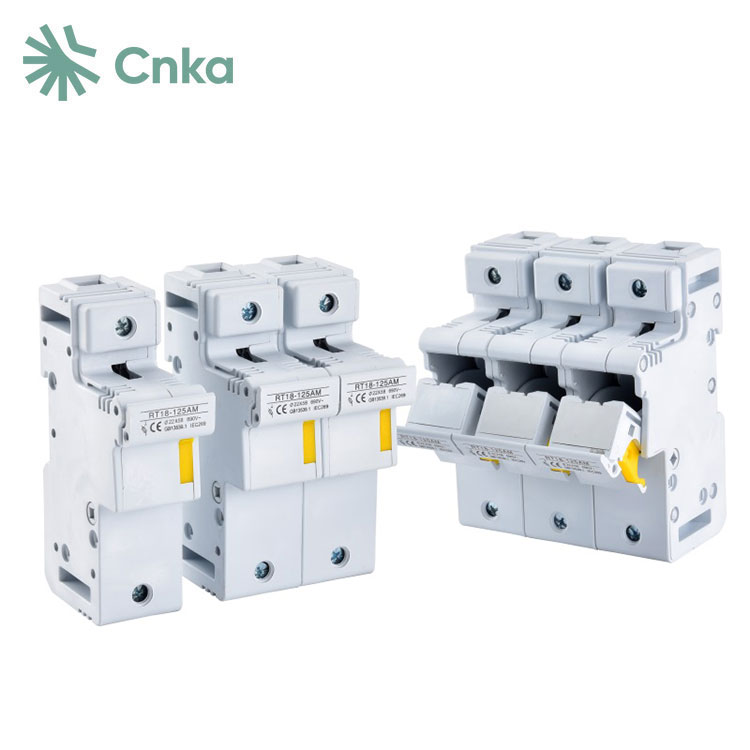

4. We offer 1, 2, and 3 pole fuse holder configurations for flexible selection.
Q: Do you provide detailed and professional installation manuals?
A: We have a variety of products to choose from; Please contact us for specific information.
Q: Do you provide samples? Are they free?
A: Yes, we can provide samples for free, but you will need to pay for shipping.
Q: What is your minimum order quantity?
A: The minimum order quantity varies depending on the product, so please confirm with our sales team before placing an order.
