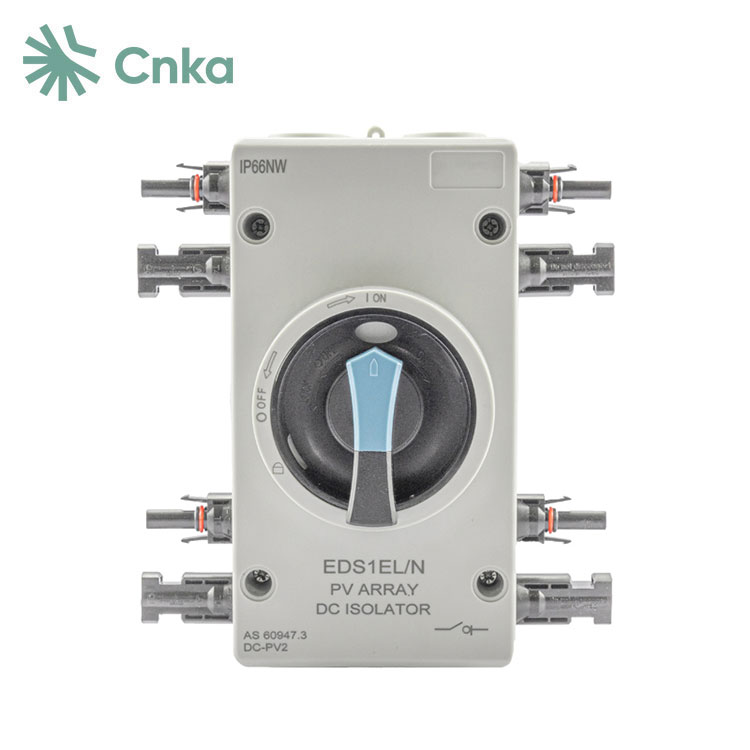

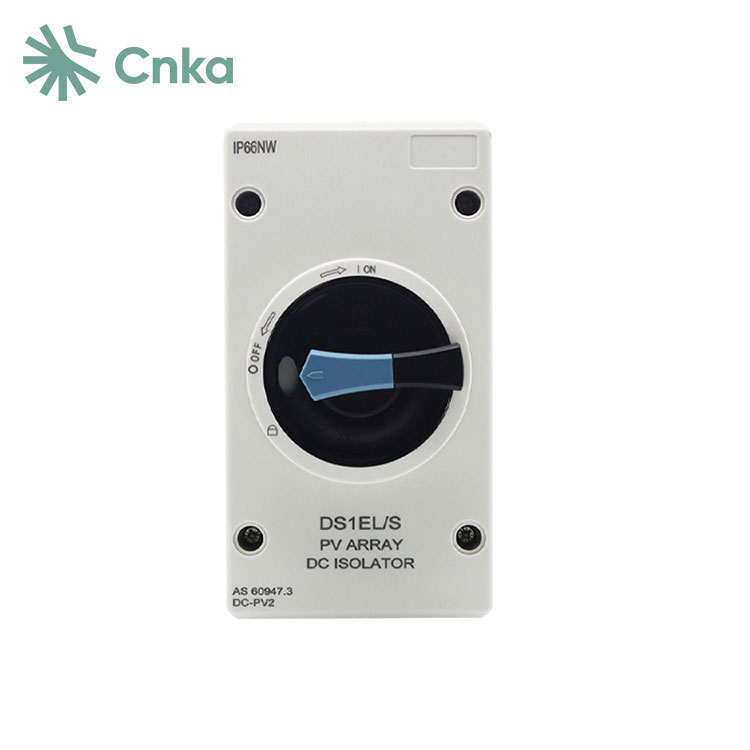

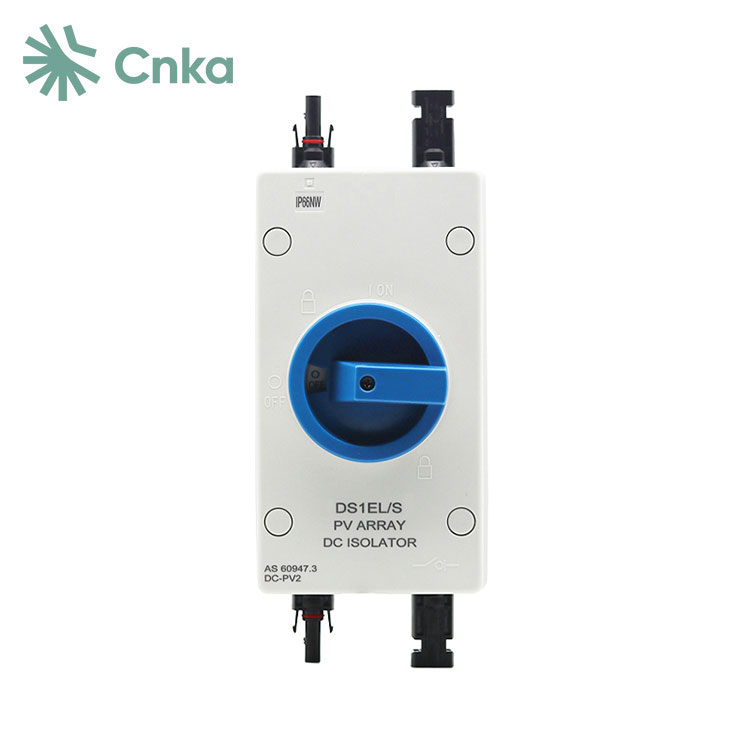

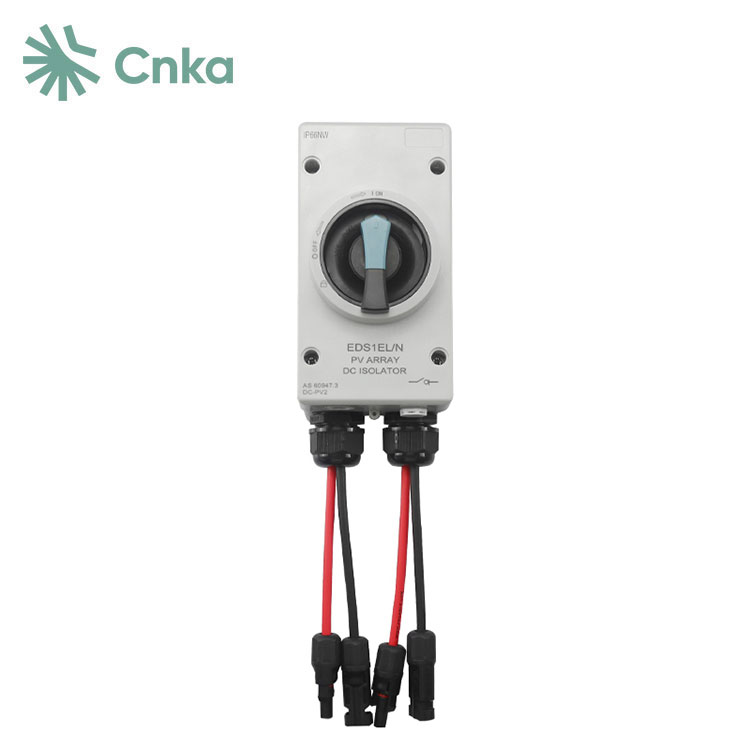

The CNKA brand offers a large discount on waterproof rotary isolation switches, which are designed as closed isolation switches with DC current capacities of 1000V and 32A, making them an ideal choice for solar power generation systems. This switch is typically installed between the solar panel array and the inverter on the roof, allowing for isolation of the photovoltaic array during installation or maintenance. The waterproof rating of this rotary isolation switch is IP66, suitable for outdoor applications.
|
Product Model |
DS1EL-S32 |
|
Rated insulation voltage Ui |
1500V |
|
Rated heating current Ithe |
32A |
|
Pole |
4P |
|
Rated impulse withstand voltage Uimp |
8000V |
|
Rated short-time withstand current(1s)Icw |
1000A |
|
Rated short-circuit making capacity Icm |
1000A |
|
Working Temperature |
-40℃~+85℃ |
|
Mechanical life |
10,000 times |
|
Waterproof grade |
IP66 |
1.It is best to choose a load circuit breaker that can handle up to 8 times the rated current to achieve effective motor isolation.
2. This switch has a high IP66 rating.
3. It is a non polarized DC isolation switch.
4. It is strongly recommended to ensure that the lid is firmly closed.
5. Switches are divided into DC-PV1, DC-PV2, and DC-21B types.
6. The blue handle is designed to be lockable.
1. IP66 waterproof: It has high impact strength, excellent toughness, and strong resistance to pollution.
2. Multiple inlet holes: Each of the four ends has two separation holes, allowing for entry and exit of the pipeline after removal.
