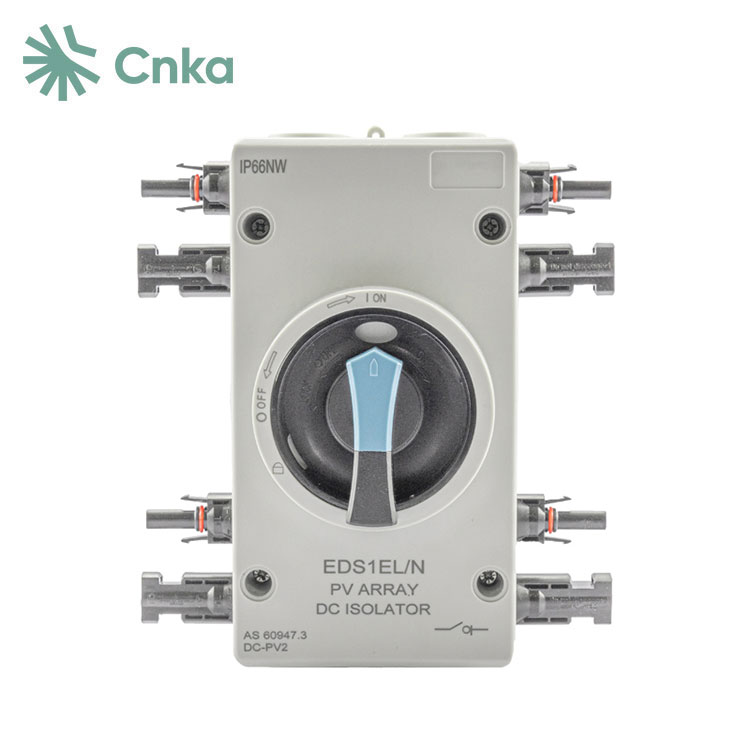

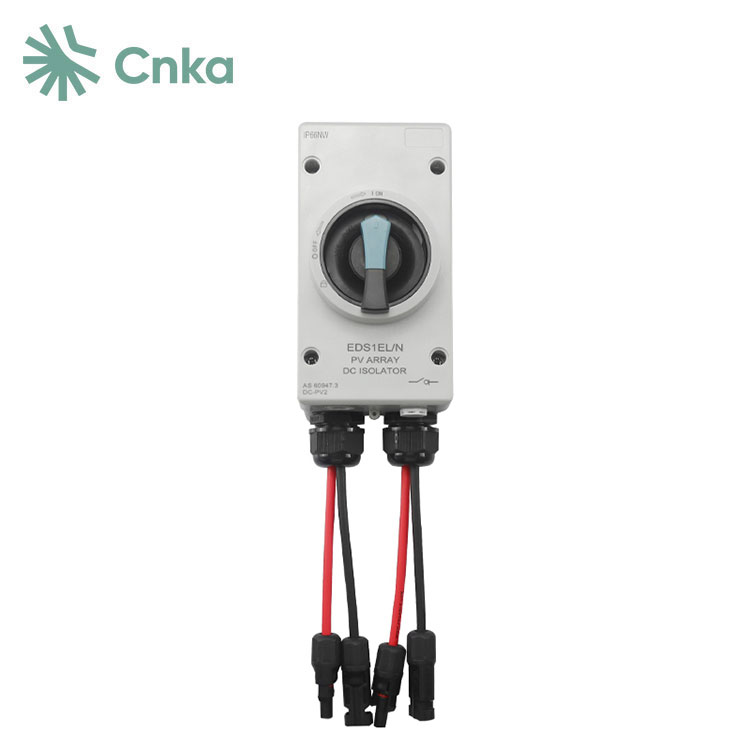

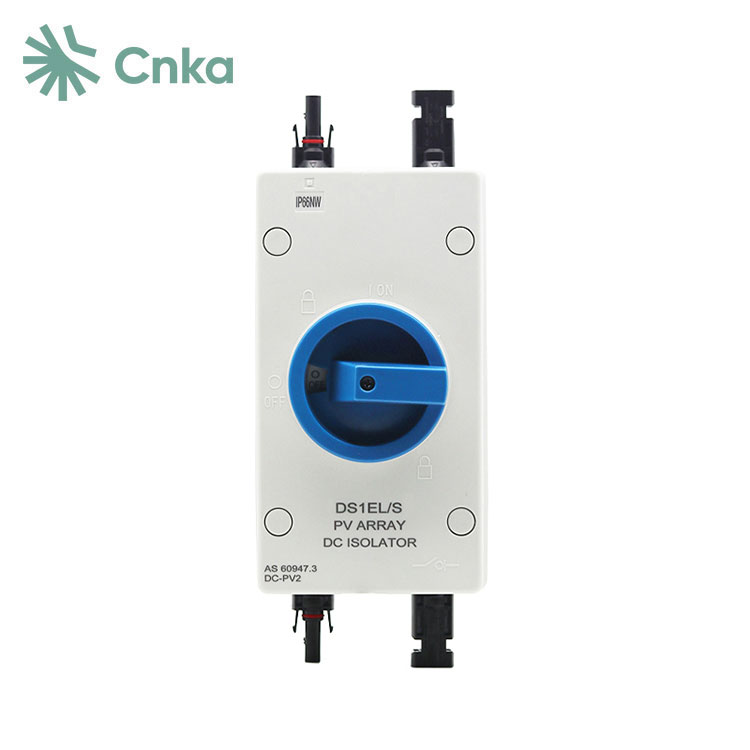

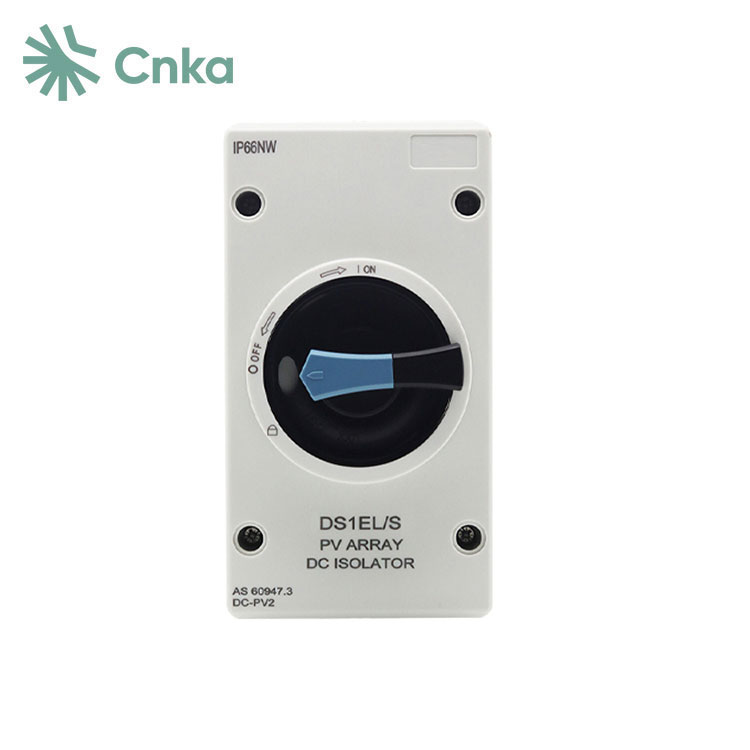

Chinese supplier CNKA (brand) provides low-priced waterproof isolation switches, which are widely used in photovoltaic power generation systems to achieve line isolation between photovoltaic modules and inverters. These switches have excellent waterproof performance, comply with IP66 standards, and can be directly installed inside the inverter as feeder control modules.
|
Product Model |
DS1EL-S32 |
|
Rated insulation voltage Ui |
1500V |
|
Rated heating current Ithe |
32A |
|
Pole |
4P |
|
Rated impulse withstand voltage Uimp |
8000V |
|
Rated short-time withstand current(1s)Icw |
1000A |
|
Rated short-circuit making capacity Icm |
1000A |
|
Working Temperature |
-40℃~+85℃ |
|
Mechanical life |
10,000 times |
|
Waterproof grade |
IP66 |
1.This series includes models with rated currents ranging from 16 to 32A.
2. The shell meets the IP66 waterproof standard.
3. It is designed with a very prominent blue handle for easy identification.
4. The installation and operation process is easy to use.
5. Complies with IECEN60947-3:2009+A1+A2, AS60947-3, and UL508 standards, with an insulation voltage rating of DC1500V, and has passed TUV, CE certification, and IGBT140483 testing.
6. The power outage time is extremely short, only 2 milliseconds.
Q: What are your advantages?
A: We have 10 years of export experience in overseas markets, mainly focused on the European Union and the United States. Our products are manufactured according to IEC standards, and we provide technical services and support for suitable projects.
Q: Can you design the equipment according to our specifications?
A: Yes, we can produce based on your samples or technical drawings, but there is a minimum order quantity (MOQ) or additional fees may apply.
Q: How many employees do you have in your factory?
A: Our factory employs 50 workers, 5 technicians, and 10 salespeople.
