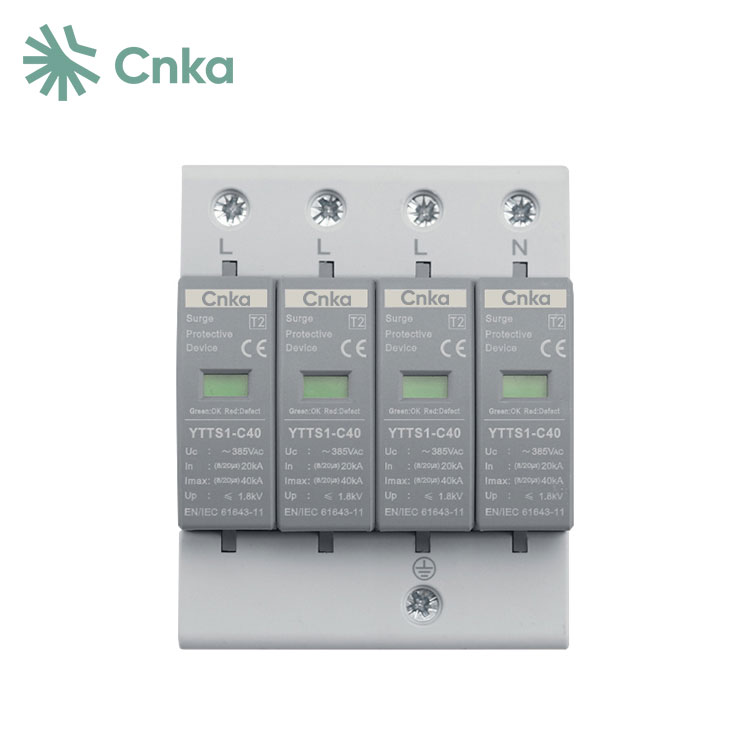

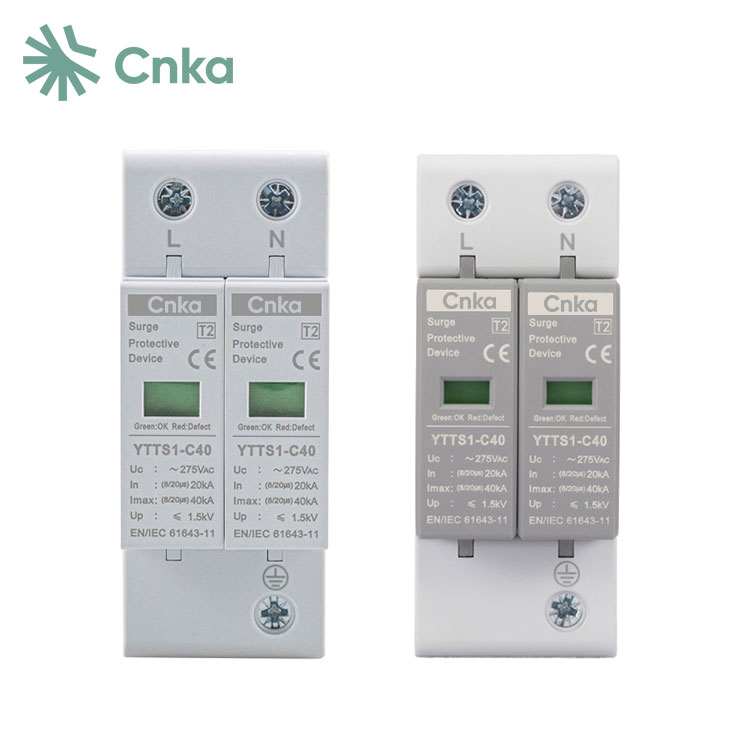

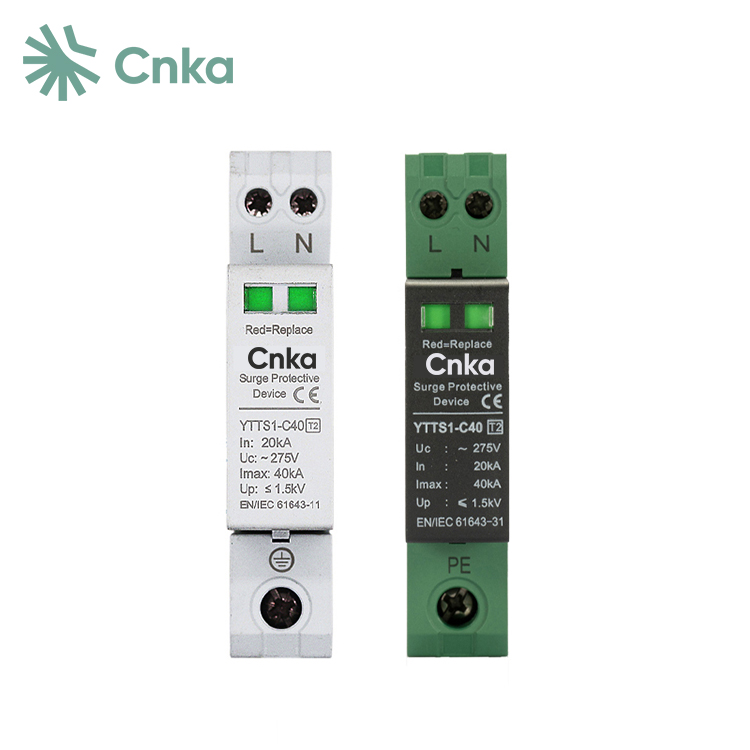

Type 2 Ac Surge Protection Device

CNKA type 2 ac surge protection device Introduction

China Manufacturers CNKA offers low-priced Type 2 AC surge protection devices made in China, designed to protect AC power electronic devices from overvoltage. This C-level overvoltage protection device complies with IEC and GB standards and allows for specification selection based on varying power supply voltages.

CNKA type 2 ac surge protection device Parameter (Specification)

CNKA type 2 ac surge protection device Feature

1. Constructed from high-temperature resistant plastic, this device offers excellent sealing performance and is easy to install.

2. It features a dual thermal disconnect protection device for enhanced reliability.

3. With a plug-type design, the module can be replaced without needing to power down the system.

4. It supports a maximum discharge current of 40kA with a T2 8/20 protection level.

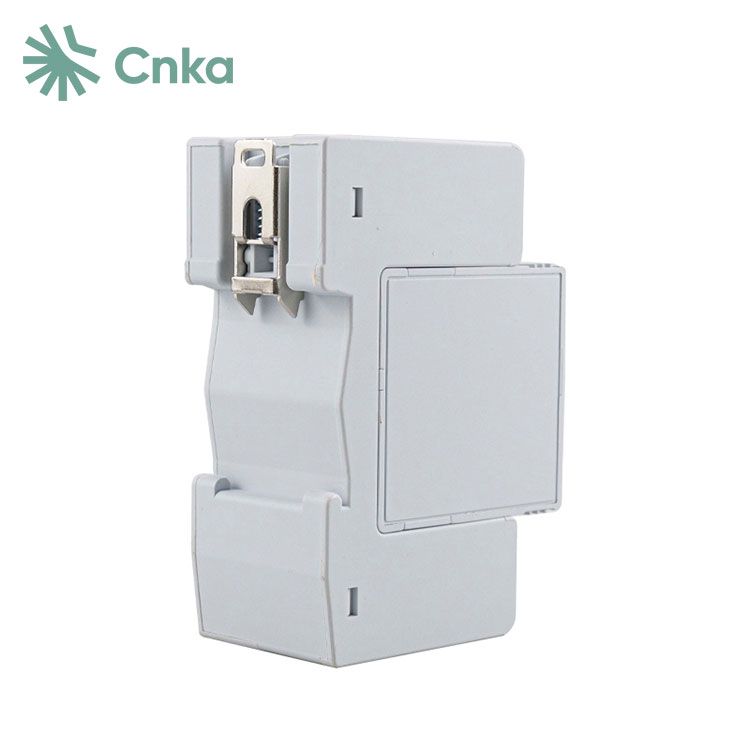

CNKA type 2 ac surge protection device Details

CNKA type 2 ac surge protection device Dimensions and wiring

CNKA type 2 ac surge protection device Classification

SPDs can be classified into voltage switching type, voltage limiting type, and combination type based on their operating principles.

Voltage switching SPDs maintain high impedance under normal conditions, but when they detect instantaneous overvoltage, their impedance rapidly shifts to low, allowing lightning current to pass through. This is why they are often referred to as "short-circuit switching SPDs."

Voltage limiting SPDs also start with high impedance in the absence of overvoltage. However, as surge current and voltage increase, their impedance decreases, exhibiting strong nonlinear current-voltage characteristics. They are sometimes called "clamp type SPDs."

Combined SPDs integrate both voltage switching and voltage limiting components, allowing them to display characteristics of either or both types, depending on the voltage characteristics they encounter.
