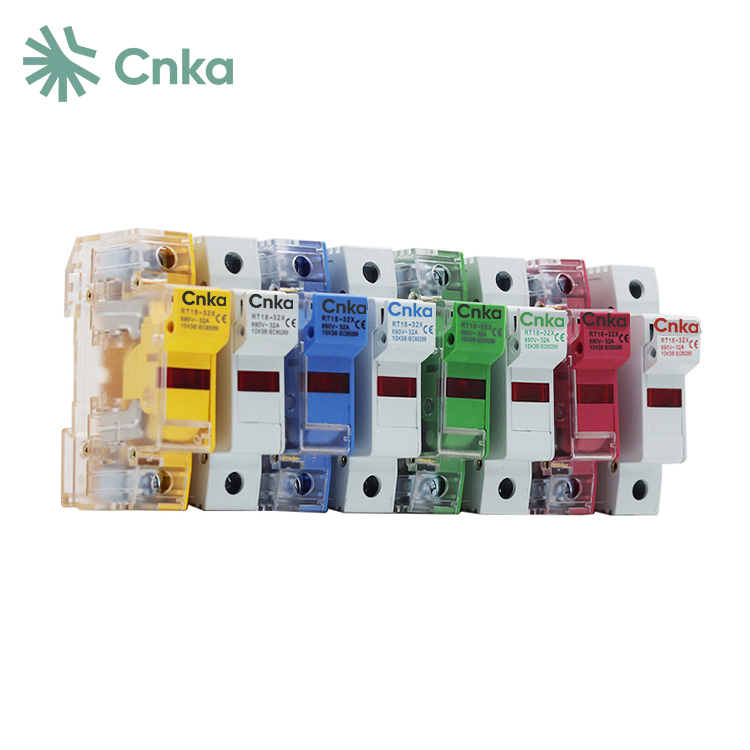

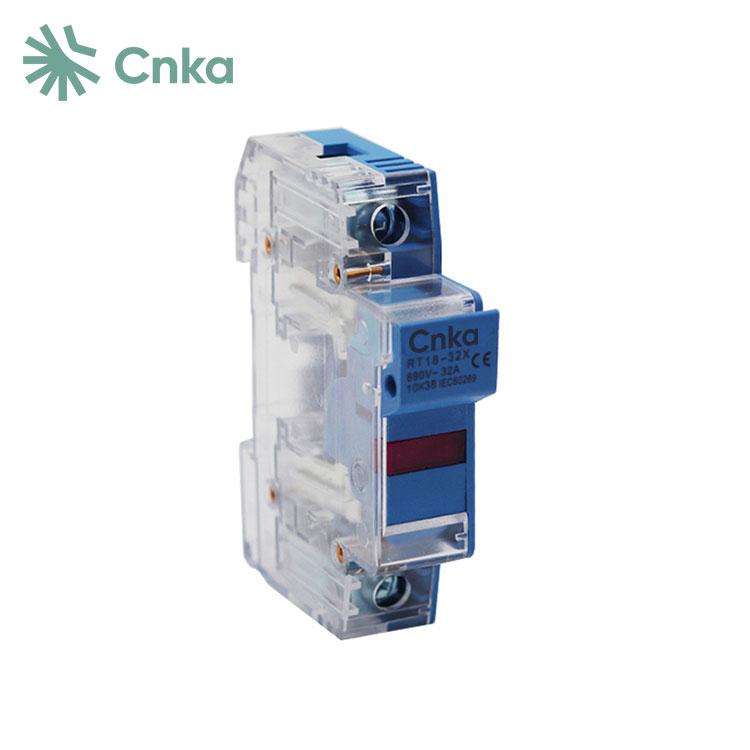

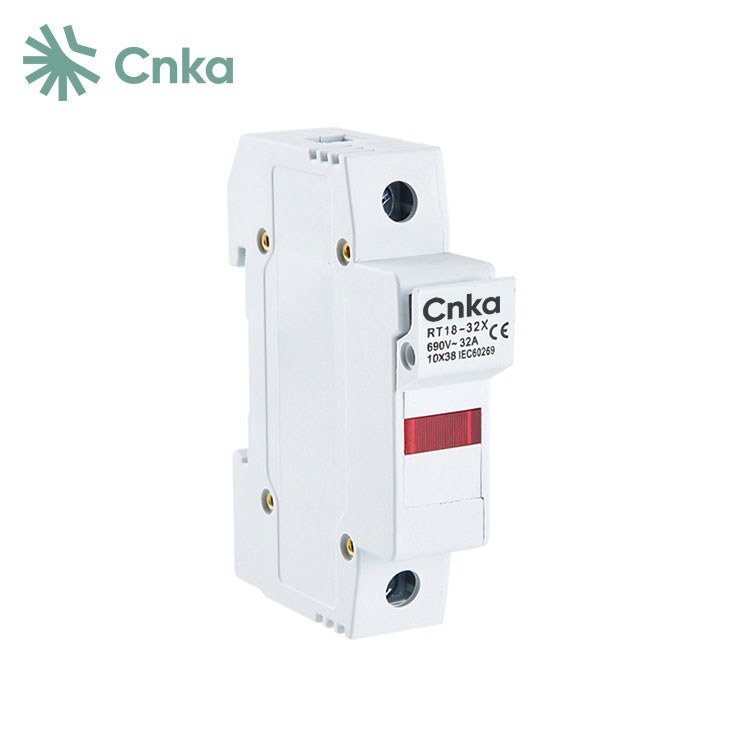

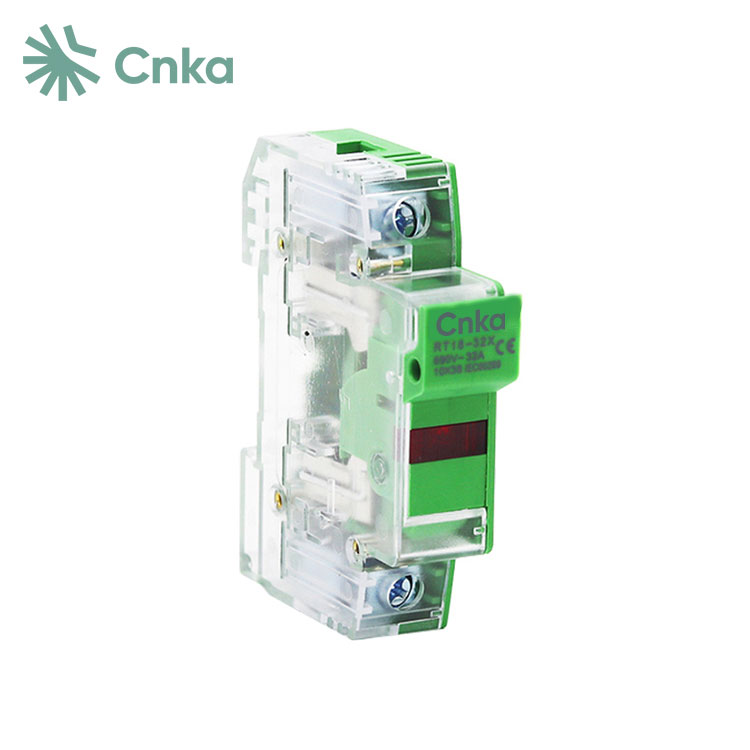

China Factory Manufacturer-CNKA AC Disconnect Fuses are suitable for AC circuit areas with frequencies of 50Hz or 60Hz. The AC disconnecting fuses have a maximum mounting size of 10×A 38mm and are suitable for gG, aM, aR and other situations. The AC disconnecting switch fuses comply with the national standard GBT13539 and the International Electrotechnical Commission standard IEC60269 - 2 and can withstand conventional thermal currents and expected short-circuit inrush currents of up to 50kA.
|
Product Model |
RT18-32X |
|
Pole |
1P |
|
Colour |
White/blue |
|
Rated Current (A) |
2,4,6,8,10,12,16,20,25,32 |
|
Rated Voltage(V) |
500 |
|
Breaking capacity(kA) |
50 |
|
Installation |
Rail installation |
|
Fuse link size(mm2) |
10*38 |
1.T2 type copper conductive high quality material.
2.The fuse holder is easy to use and install.
3. It provides an external locking device that locks the fuse holder when it is closed to prevent misuse.
4. Fuseholders are available for 1-pole, 2-pole, 3-pole and 3-pole + N-pole combinations.
Q: How do you package your equipment?
A: We usually use cardboard boxes. Upon request, we can also do special packaging.
Q: How many years has your company been producing such devices?
A: We have been specializing in DC Circuit Breakers, Surge Protectors, PV Fuses, Disconnect Switches, MC4 Connectors, etc. for over 15 years.
Q: How many employees do you have in your factory?
A: There are 40 workers, 6 technicians and 10 sales people.
