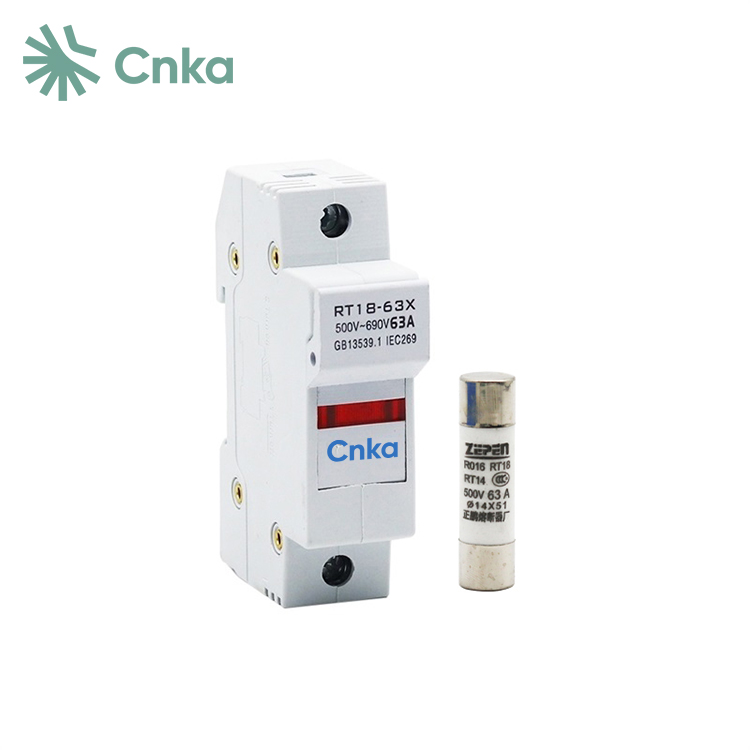

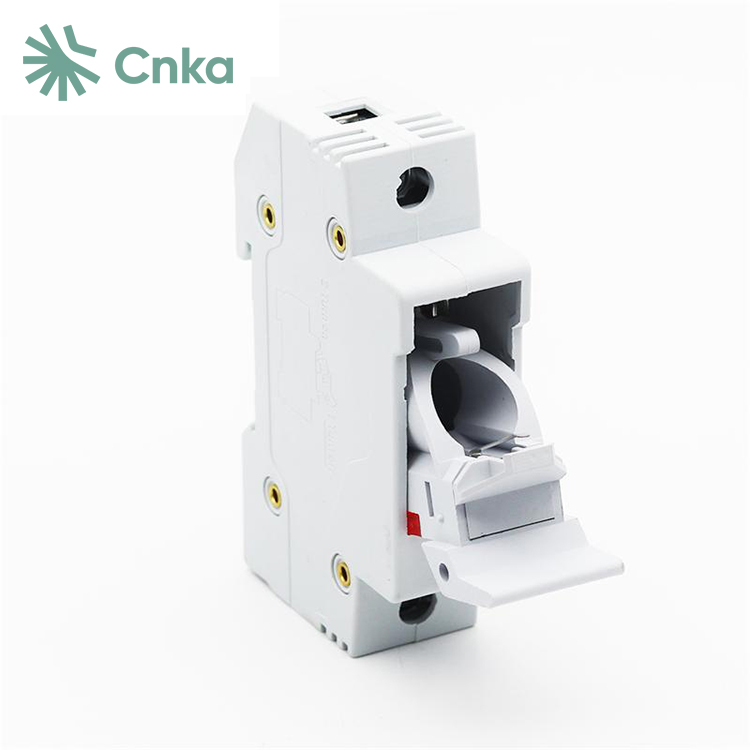

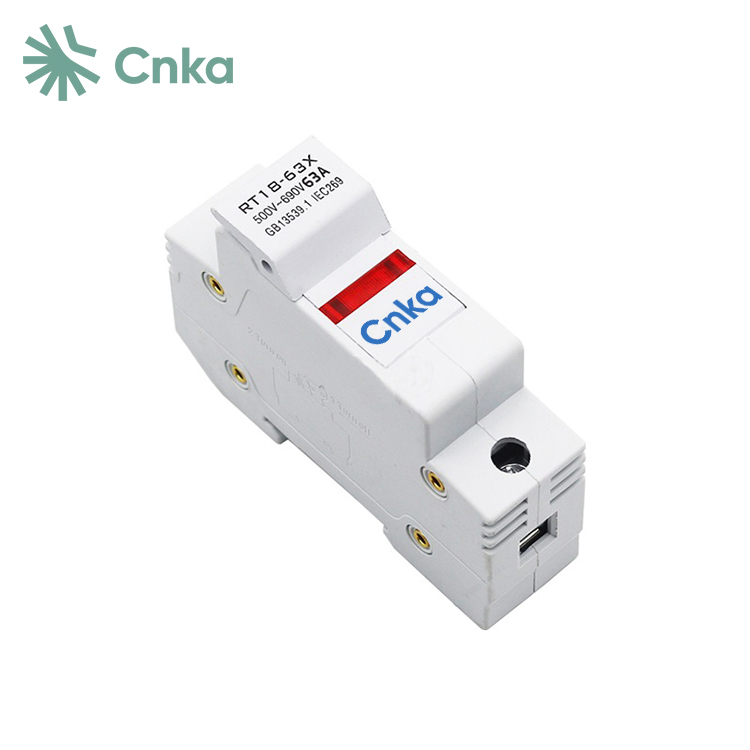

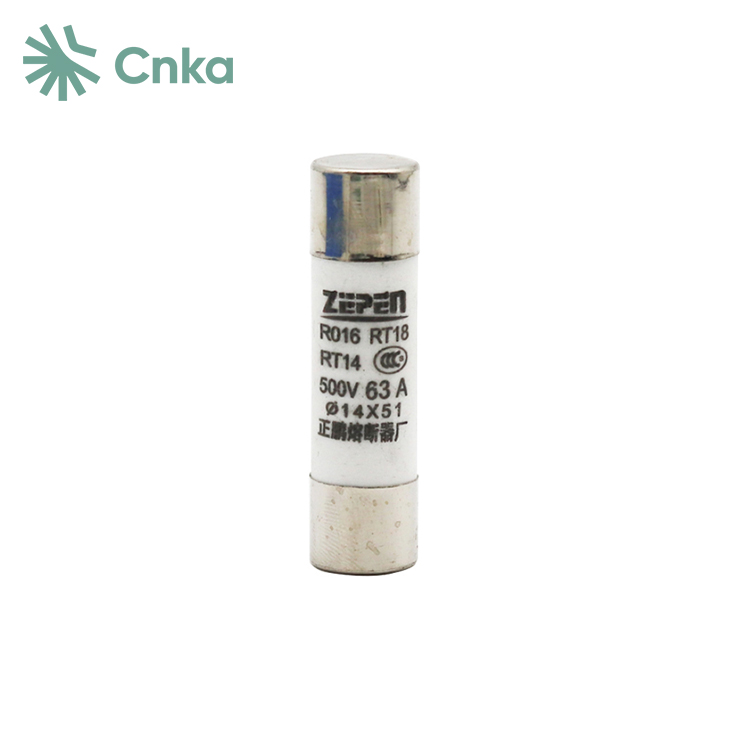

40 AMP AC Fuse

CNKA  40 amp ac fuse Introduction

China factory manufacturer CNKA has the latest technology and best selling brand of 40 - Amp AC fuses. These fuses are typically used in industrial and end-user fuse boxes and have a typical rating of 230/400 volts AC. In industrial facilities, some models can also be used for DC or AC voltages up to 1000 volts.

CNKA  40 amp ac fuse Parameter (Specification)

CNKA  40 amp ac fuse Feature

The type of fuse selected depends largely on the protective characteristics of the load and the magnitude of the short circuit current. For low power motors and lighting branch circuits, fuses are normally used to provide overload and short-circuit protection. It is therefore necessary to select fuses with a suitably low melt index, usually the RQA series of fuses with lead-tin alloy melts. For larger capacity motors and lighting trunks, emphasis should be placed on short circuit protection and breaking capacity. RM10 and RL1 series fuses with high breaking capacity are usually used. When the short-circuit current is very high, RT0 and RT12 series fuses with current limiting function are recommended.

CNKA  40 amp ac fuse Details

CNKA  40 amp ac fuse Dimensions and wiring

CNKA  40 amp ac fuse Common types

Self-resetting fuses use sodium metal as the melt, which is highly conductive at room temperature. When a short-circuit fault occurs in a circuit, the short-circuit current generates high temperatures, causing the sodium to vaporize rapidly. The vaporized sodium is in a state of high resistance, which limits the short-circuit current. When the short-circuit current disappears, the temperature decreases and the sodium metal restores its original good conductivity. Self-resetting fuse can only limit the short-circuit current, can not really break the circuit. The advantage is that there is no need to replace the fuse and it can be reused.
