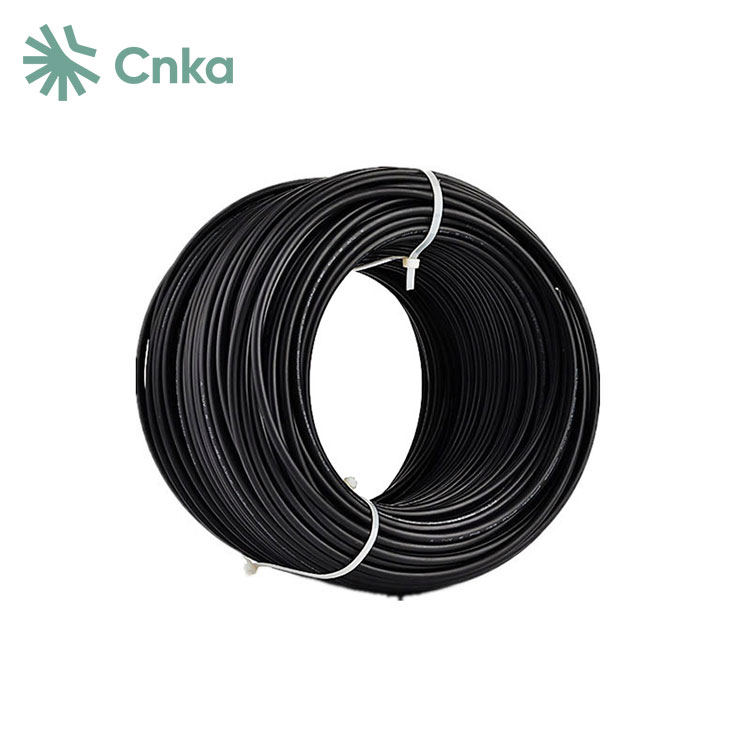

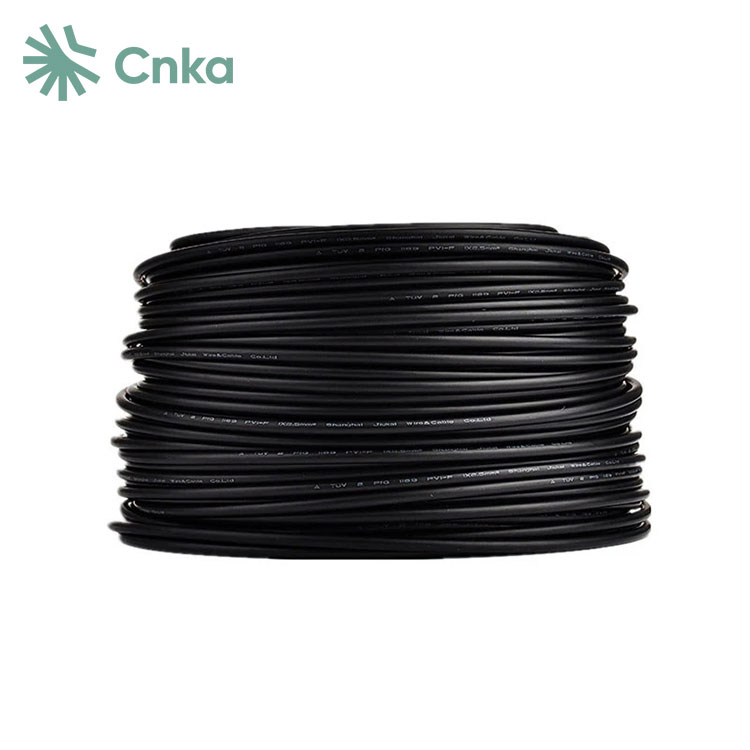

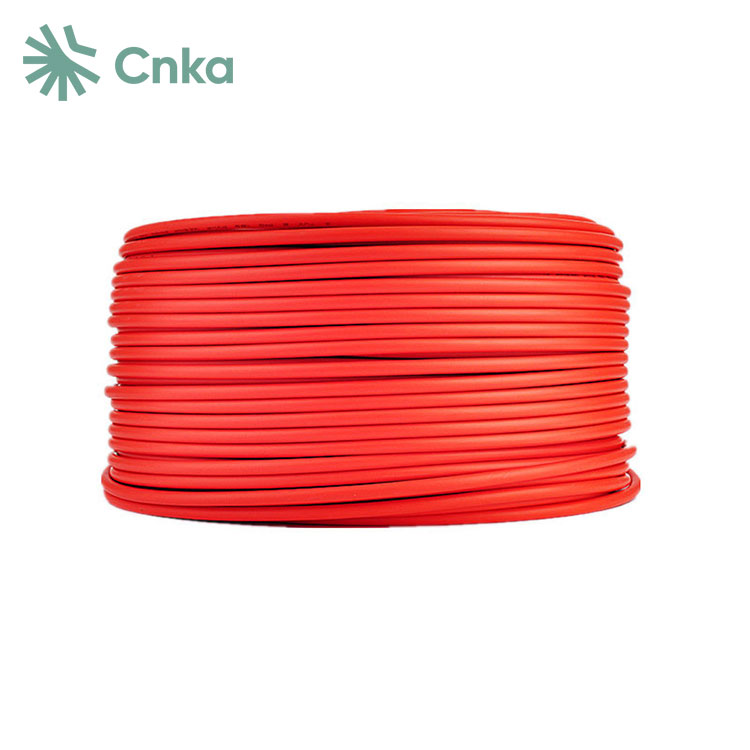

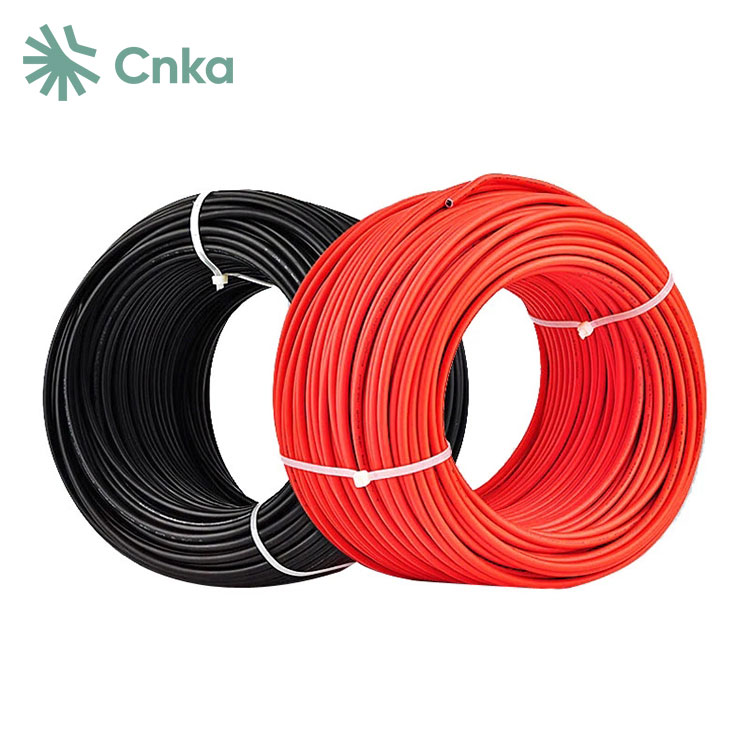

4mm 6mm Pv Cable

CNKA4mm 6mm pv cable Introduction

China Factory CNKA offers Easy-Maintainable Advanced 4mm and 6mm PV cables designed for outdoor environments. These specialized photovoltaic cables undergo irradiation crosslinking, where high-energy electron beams alter the molecular structure of the insulating material from linear to a three-dimensional network. This process enhances the temperature resistance of the cables. Compared to non-crosslinked cables, irradiated crosslinked cables can withstand temperatures up to 90°C, 105°C, 125°C, 135°C, or even 150°C, and exhibit a 15-50% increase in load-bearing capacity. These cables are highly durable, capable of withstanding severe temperature fluctuations and chemical erosion, making them suitable for outdoor use for over 25 years.

CNKA4mm 6mm pv cable Parameter (Specification)

CNKA4mm 6mm pv cable Feature

·  Flame Retardancy: The 4mm and 6mm PV cables meet flame retardant requirements in accordance with EN 50265-2-1, IEC 60332-1, VDE 0482-32-1-2, and DIN EN 60332-1-2 standards, ensuring safety in the event of a fire.

·  Low Smoke Emission: The cables comply with the low smoke emission requirements of IEC 61034 and EN 50268 standards, which minimizes smoke generation during combustion.

·  Halogen-Free: According to EN 50267-2-1 and IEC 60754-1 standards, the cables are free from halogen components, reducing the risk of harmful gas release.

·  Low Gas Corrosion: The cables meet the requirements of EN 50267-2-2 and IEC 60754-2 standards, ensuring low gas corrosion to protect equipment and maintain safety.

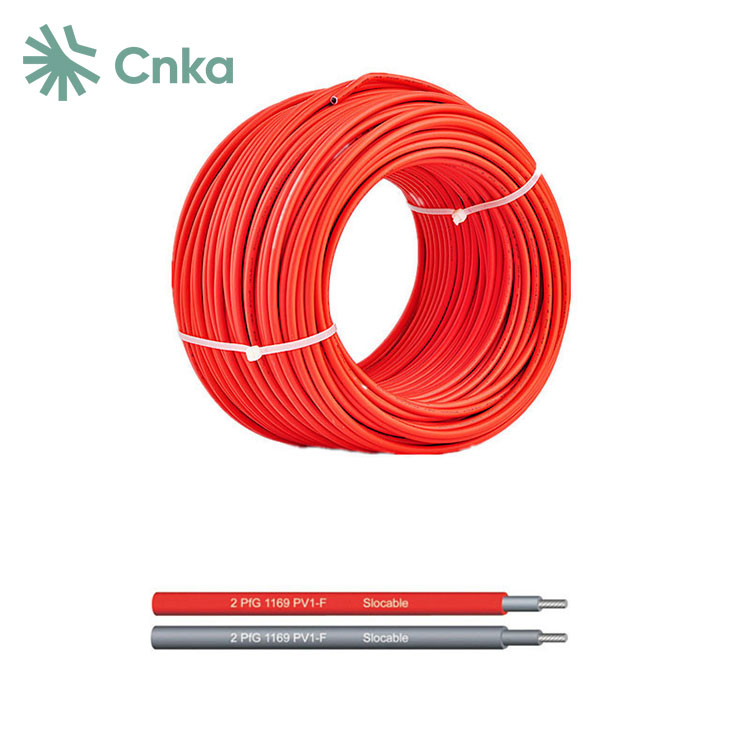

CNKA4mm 6mm pv cable Details and structure

CNKA4mm 6mm pv cable Wiring Techniques

Photovoltaic System Wiring Guidelines

1.DC and AC Wiring Separation:

-DC Circuit: Connects photovoltaic panels to the DC distribution components.

-AC Circuit: Connects the inverter to the power grid.

2.Cable Management:

-In large and medium-sized photovoltaic power plants, numerous DC cables are used.

-Label each cable with a wire number for ease of maintenance.

-Separate strong power lines from weak power lines.

-Route signal lines (e.g., 485 communication) separately to avoid interference.

3.Wiring Installation:

-Use conduits and cable trays to protect and organize cables.

-Minimize the exposure of wires to external elements.

-Maintain clean, horizontal, and vertical wiring paths.

-Avoid cable joints inside conduits and trays to simplify maintenance.

4.Special Considerations:

-If replacing copper wires with aluminum wires, use reliable copper-aluminum adapter terminals to ensure proper connection.
