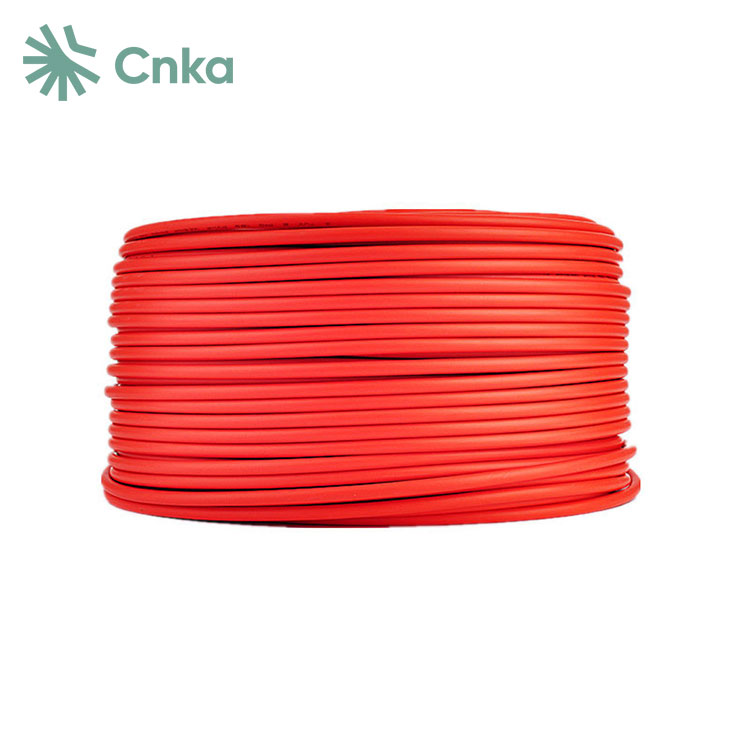

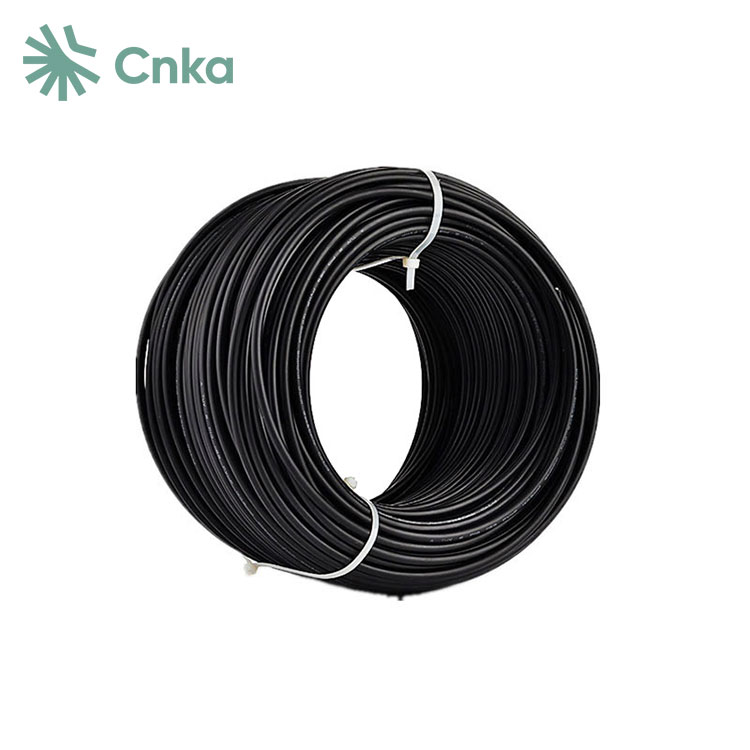

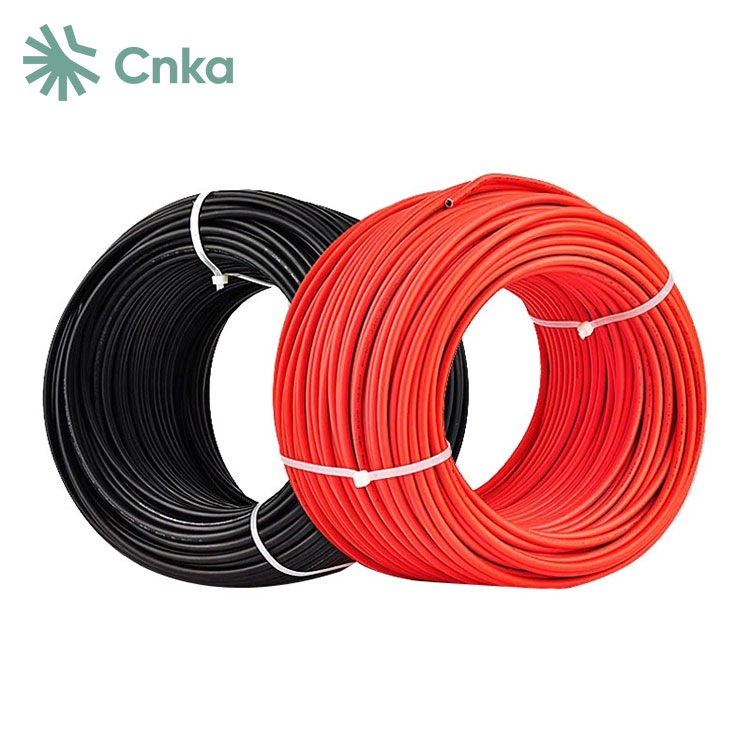

10 Awg Solar Cable

CNKA10 awg solar cable Introduction

China Manufacturers CNKA's affordable and durable 10 AWG solar cable is designed for connecting photovoltaic modules to combiner boxes. It features a simple structure and utilizes polyolefin insulation material, offering excellent heat resistance, cold resistance, oil resistance, and UV resistance. This cable is suitable for harsh environmental conditions and provides a certain degree of mechanical strength. It can be protected using conduits, with photovoltaic module brackets serving as channels and fixing points for cable layout, thereby minimizing the impact of environmental factors.

CNKA10 awg solar cable Parameter (Specification)

CNKA10 awg solar cable Feature

1  The maximum voltage of the cable is suitable for an ambient temperature range of -40°C to +90°C.

2  According to the IEC/EN 60216-1 standard, the maximum temperature of the wire is 120°C for a duration of 20,000 hours.

3  The short-circuit temperature of the cable is 200°C for a duration of 5 seconds.

4  The cable meets the EN 60216-2 standard (temperature index +120°C) as verified by the thermal durability test.

5  The cable complies with the EN 60811-3-1 standard following the high-temperature pressure test.

6  The cable is moisture and heat resistant, meets the EN 60068-2-78 standard, and can withstand 85% humidity.

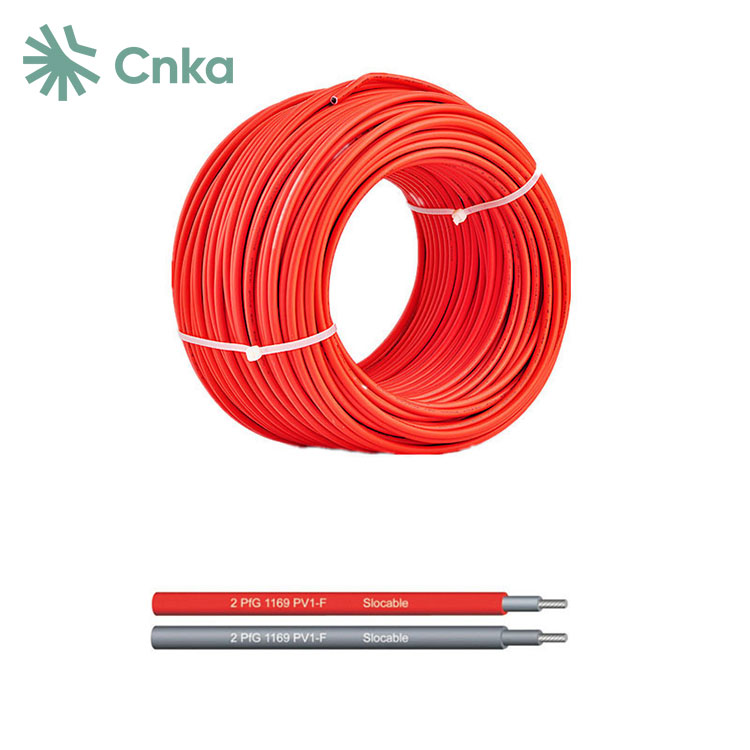

CNKA10 awg solar cable Details and structure

CNKA10 awg solar cable Selection regulations

1  Ensure that the cable is protected from mechanical external forces, overheating, corrosion, and other hazards.

2  Minimize the cable length as much as possible while still meeting safety requirements.

3  Cable installation and maintenance should be designed for convenience.

4  Avoid laying cables in areas that are scheduled for excavation.

5  Ensure that the cable meets the allowable bending radius requirements at any turning point in the installation method and path.
