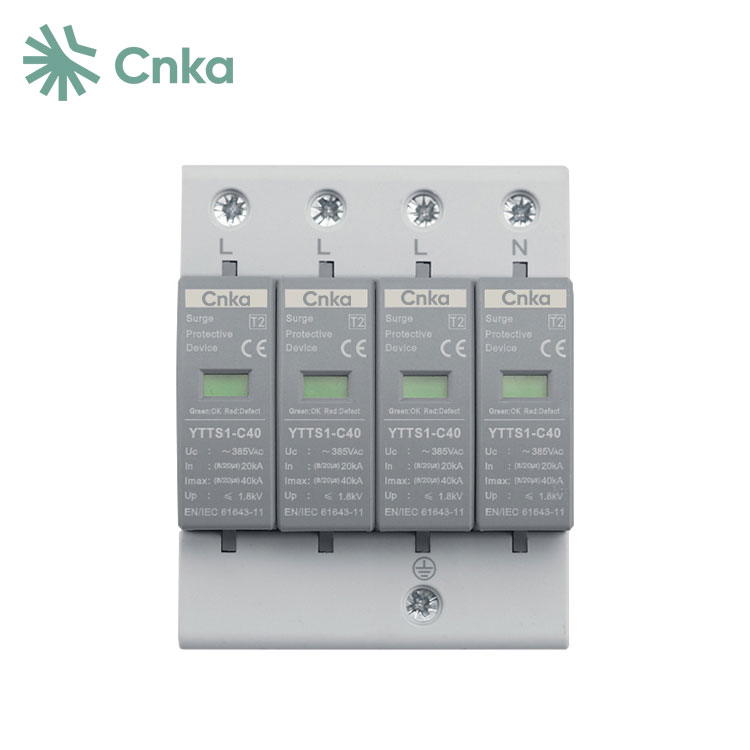

4 Pole AC SPD

CNKA 4 pole ac spd Introduction

Wholesale 4-pole AC SPD CE from CNKA, a China factory, is designed for AC power supply systems operating at 50/60 Hz and 380 V, adhering to IEC standards. This device can be mounted on a 35mm guide rail. Featuring temperature-controlled circuit technology, the 4-pole AC SPD can be integrated with F, making it suitable for low-voltage BCD lightning protection installations in buildings. Typically, it should be placed in low-voltage lightning protection device floors, distribution box counters, central telecommunications rooms, elevator control rooms, variable control rooms, and distribution boxes housing electronic medical equipment.

CNKA 4 pole ac spd Parameter (Specification)

CNKA 4 pole ac spd Feature

1  The housing features a modular deterioration indicator and includes flame-retardant properties.

2  It offers a high capacity and a rapid response discharge capability.

3  The device uses multifunctional terminals that allow for connections to both wires and busbars.

4  A visual window displays green for normal operating conditions and red for fault conditions.

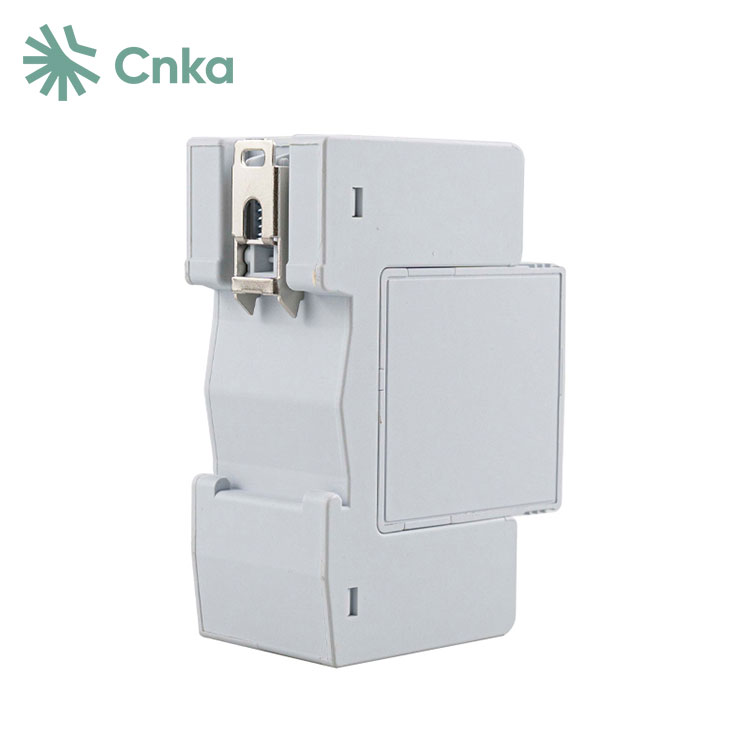

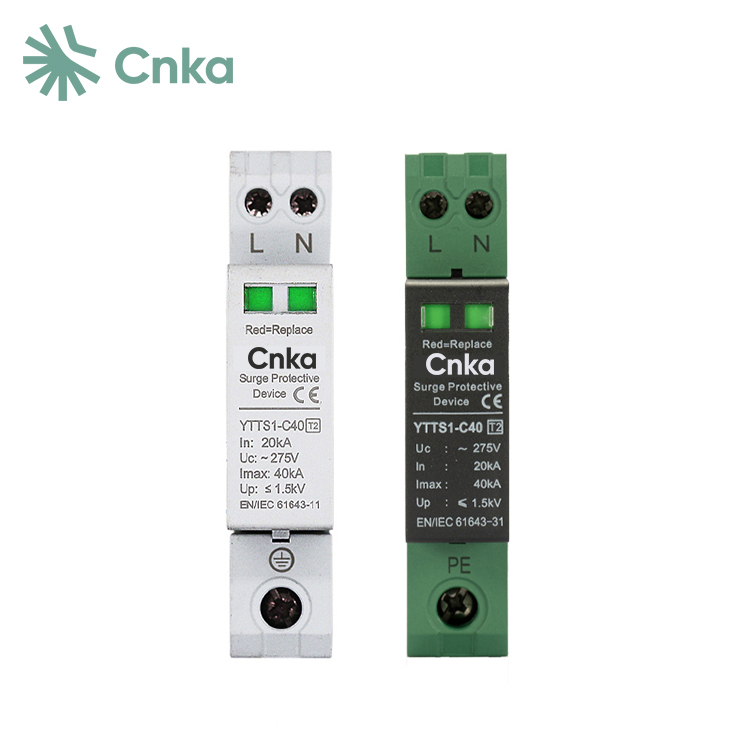

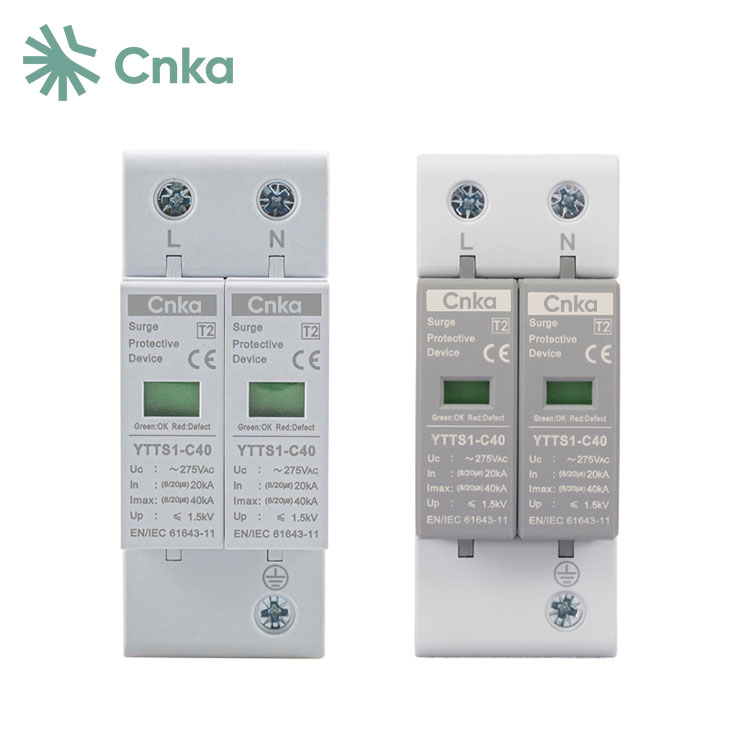

CNKA 4 pole ac spd Details

CNKA 4 pole ac spd Dimensions and wiring

CNKA 4 pole ac spd Basic circuit

Specifically, there are single-phase three-wire systems, three-phase four-wire systems with neutral point grounding, and three-phase four-wire systems with ungrounded neutral points. The design of these circuits is tailored to their unique characteristics and operating environments to ensure optimal surge protection. Therefore, when selecting surge protective devices, it is crucial to choose the appropriate circuit type based on the system's specific requirements.
