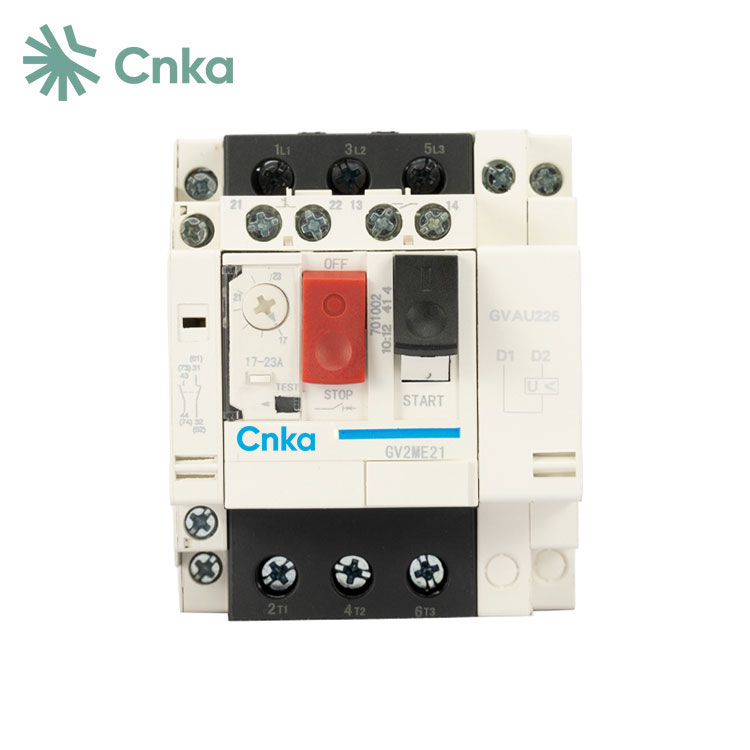

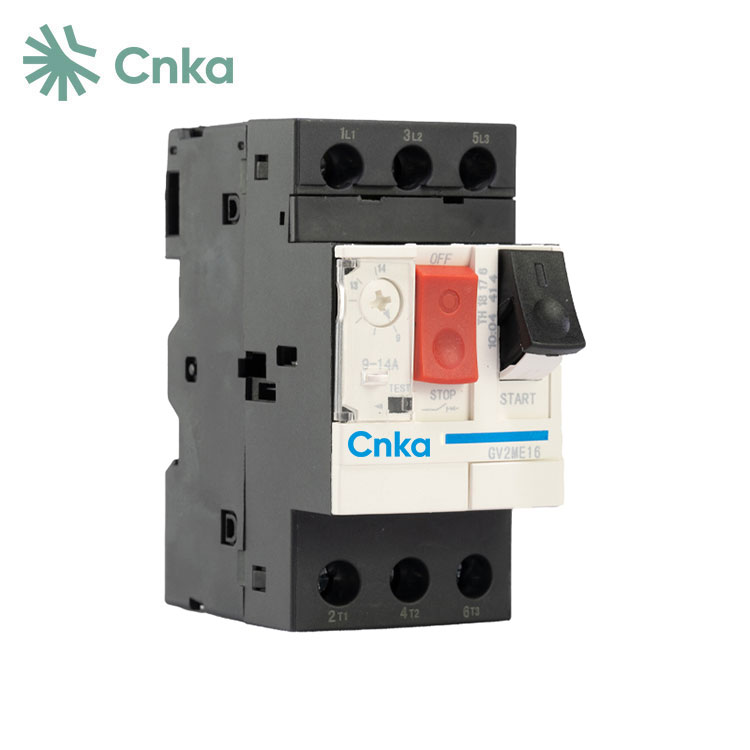

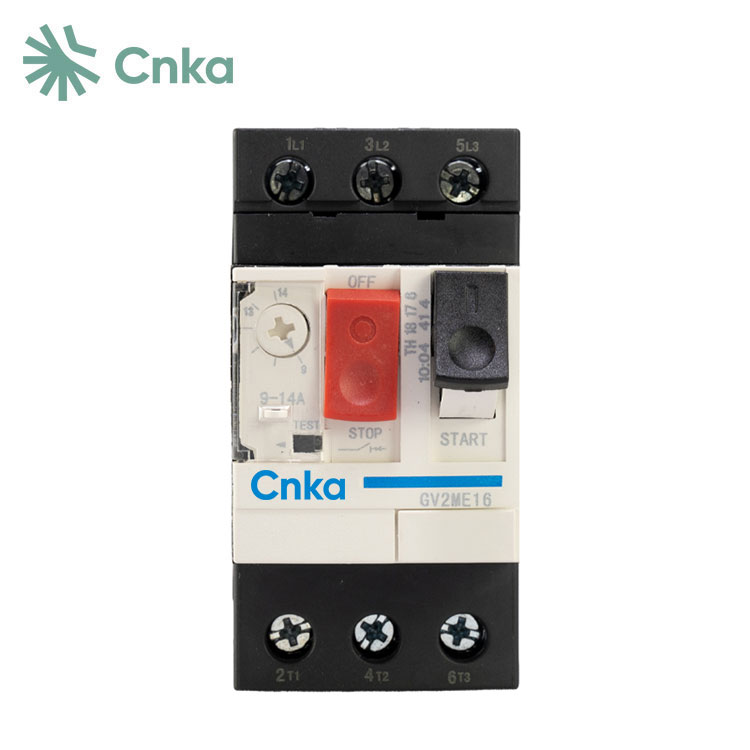

China suppliers CNKA offer low-priced motor circuit protectors that are suitable for circuits with a maximum AC voltage of 690V and a rated current of up to 45A. These protectors are designed to safeguard three-phase asynchronous motors from overload, phase loss, and short circuits. Additionally, the motor circuit protectors can be equipped with built-in AC contactors and thermal relays, forming a comprehensive motor control and protection system that allows for remote circuit connection and disconnection. They are ideal for frequent AC motor starting and control and come with a housing frame ranging from 32A to 15 different current levels. The motor circuit protectors can also be calibrated for precise protection.
|
Model |
Rated |
Setting |
Standard rated power of three-phase motor (kW) |
|||||
|
AC-3,50Hz/60Hz |
||||||||
|
230/240V |
400V |
415V |
440V |
500V |
690V |
|||
|
GV2ME01C |
0.16 |
0.1-0.16 |
|
|
|
|
|
|
|
GV2ME02C |
0.25 |
0.16-0.25 |
|
|
|
|
|
|
|
GV2ME03C |
0.4 |
0.25-0.4 |
|
|
|
|
|
|
|
GV2ME04C |
0.63 |
0.4-0.63 |
|
|
|
|
|
0.37 |
|
GV2ME05C |
1 |
0.63-1 |
|
|
|
0.37 |
0.37 |
0.55 |
|
GV2ME06C |
1.6 |
1-1.6 |
|
0.37 |
|
0.55 |
0.75 |
1.1 |
|
GV2ME07C |
2.5 |
1.6-2.5 |
0.37 |
0.75 |
0.75 |
1.1 |
1.1 |
1.5 |
|
GV2ME08C |
4 |
2.5-4 |
0.75 |
1.5 |
1.5 |
1.5 |
2.2 |
3 |
|
GV2ME10C |
6.3 |
4-6.3 |
1.1 |
2.2 |
2.2 |
3 |
3.7 |
4 |
|
GV2ME14C |
10 |
6-10 |
2.2 |
4 |
4 |
4 |
5.5 |
7.5 |
|
GV2ME16C |
14 |
9-14 |
3 |
5.5 |
5.5 |
7.5 |
7.5 |
9 |
|
GV2ME20C |
18 |
13-18 |
4 |
7.5 |
9 |
9 |
9 |
11 |
|
GV2ME21C |
23 |
17-23 |
5.5 |
11 |
11 |
|
11 |
15 |
|
GV2ME22C |
25 |
20-25 |
5.5 |
11 |
11 |
11 |
15 |
18.5 |
|
GV2ME32C |
32 |
24-32 |
7.5 |
15 |
15 |
15 |
18.5 |
25 |
1 This product features a temperature compensation function, ensuring precise matching with the motor's power.
2 It incorporates a thermal magnetic comprehensive protection structure, offering multiple protections, including overload, short circuit, and three-phase imbalance.
3 The current setting value is adjustable, allowing for flexible configuration based on the actual working current, with clear and distinct indication positions.
4 Multiple operation options are available, including a button-type M switch, a P-type rotary switch, and an RSLS key lift switch.
1 Made from fire-proof, new material, the shell offers excellent corrosion resistance, high temperature tolerance, and a long service life.
2 The current setting is precisely controlled, with an accurate adjustment range. A transparent cover protects the setting panel from dust and accidental contact.
3 The design features a unique handle that adds a touch of elegance, enhancing the aesthetics of your living space.
