DC Mcb For Solar

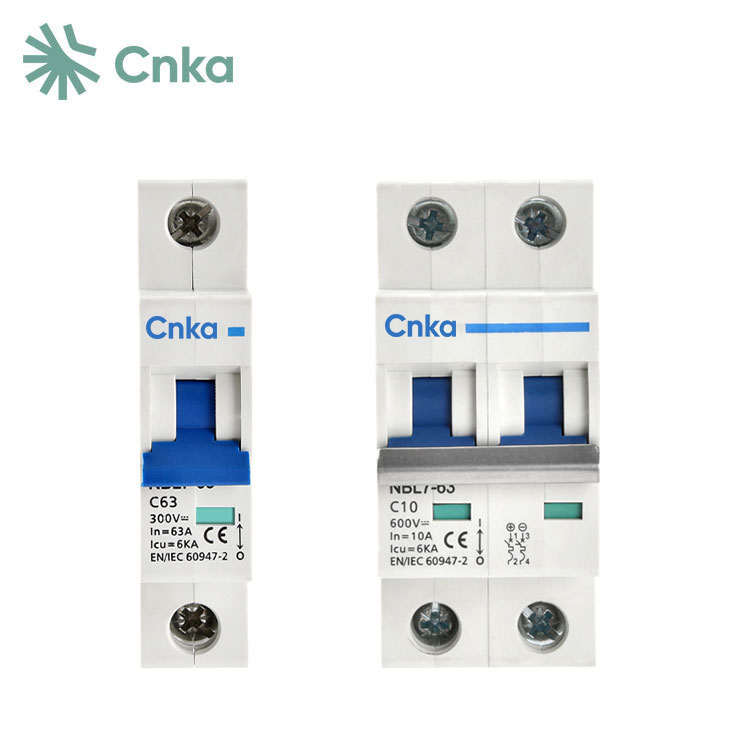

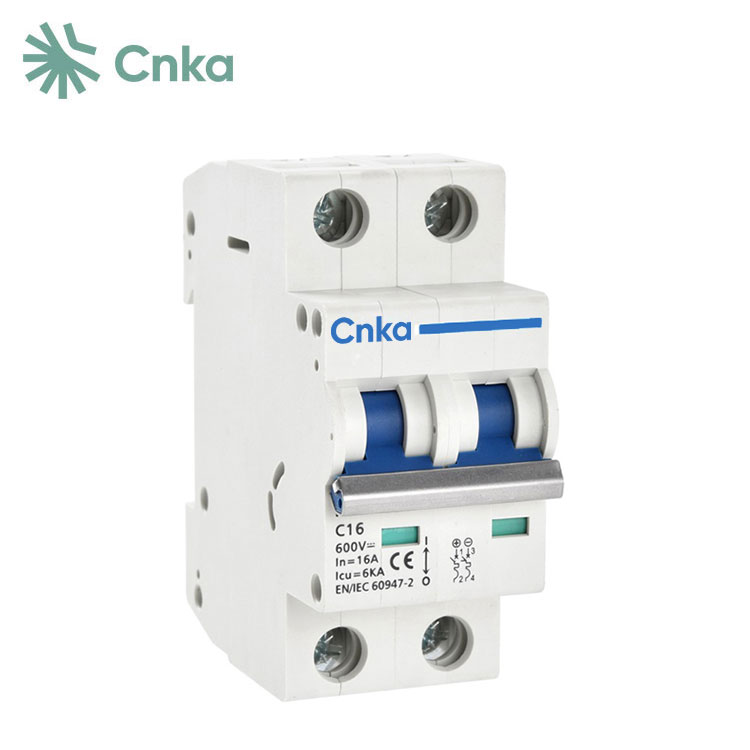

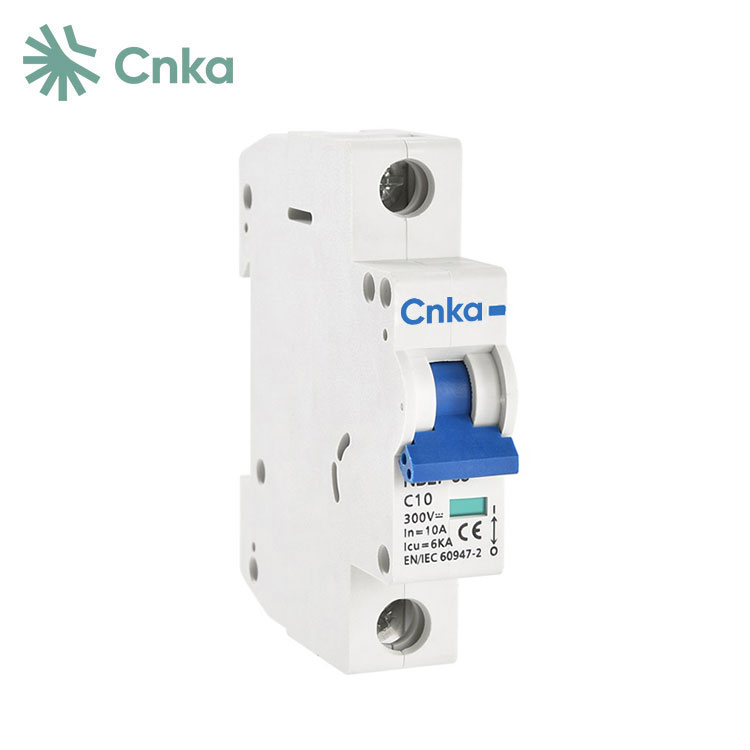

CNKA dc mcb for solar Introduction

CNKA DC MCB for solar suppliers in China is designed for DC circuits, with a rated voltage of 1000V and a maximum rated current of 63A, providing overload and short circuit protection. Additionally, this device is suitable for intermittent operation in low-frequency DC applications, such as communication and photovoltaic systems.

CNKA dc mcb for solar Parameter (Specification)

CNKA dc mcb for solar Feature

1 The enclosure is crafted from thermoplastic material, completely enclosing the connection ports, offering impact resistance and recyclability.

2  Featuring the traditional U-shaped tunnel terminal design, ensuring secure and reliable connections, maximizing safety.

3  The proprietary airflow system effectively lowers temperatures between adjacent circuit breakers, enhancing circuit safety.

4  The safety handle incorporates a classic, ergonomic design for simplicity, convenience, and dependable operation.

CNKA dc mcb for solar Details

1 Clear red and green indicator lights are visible.

2  The handle is reinforced for a secure grip.

3  PC flame-retardant materials enhance safety significantly.

4  Top cooling vents are designed to enhance heat dissipation efficiency.

CNKA dc mcb for solar Dimensions and wiring

CNKA dc mcb for solar Working conditions

1 The installation site should not exceed an altitude of 2000 meters above sea level.

2 The relative humidity at the installation site should not exceed 50% at a maximum temperature of 40°C. At lower temperatures, such as 20°C, the allowable relative humidity can reach up to 90%.

3 Precautions should be taken for occasional condensation resulting from temperature changes.

4 Ensure the installation site is sheltered from rain and snow.

5  Installation categories: The main circuit of the circuit breaker is categorized as III, while auxiliary and control circuits not connected to the main circuit are categorized as II.
