China Factory CNKA's latest automatic voltage protector is an intelligent device that combines overvoltage protection, undervoltage protection, overcurrent protection, and smart protection. When abnormal conditions like overvoltage, undervoltage, or overcurrent occur in the circuit, the automatic voltage protector can immediately detect and disconnect the circuit, thereby preventing unnecessary damage to electrical equipment. In this way, the automatic voltage protector acts as a reliable safeguard, ensuring the stable operation of the circuit.
|
Product Model |
CHVP |
|
Power supply |
220/230VAC 50/60Hz |
|
Max.Loading power |
1~40A Adjustable(default:40A) |
|
Over-voltage protection value range |
240V~300V Adjustable(default:270V) |
|
Under-voltage protection value range |
140V~200V Adjustable(default:170V) |
|
Power-on delay time |
1s~300s Adjustable(default:30s) |
|
Power consumption |
<2W |
|
Electric life |
100,000 times |
|
Machinery life |
100,000 times |
|
Installation |
35mm DIN rail |

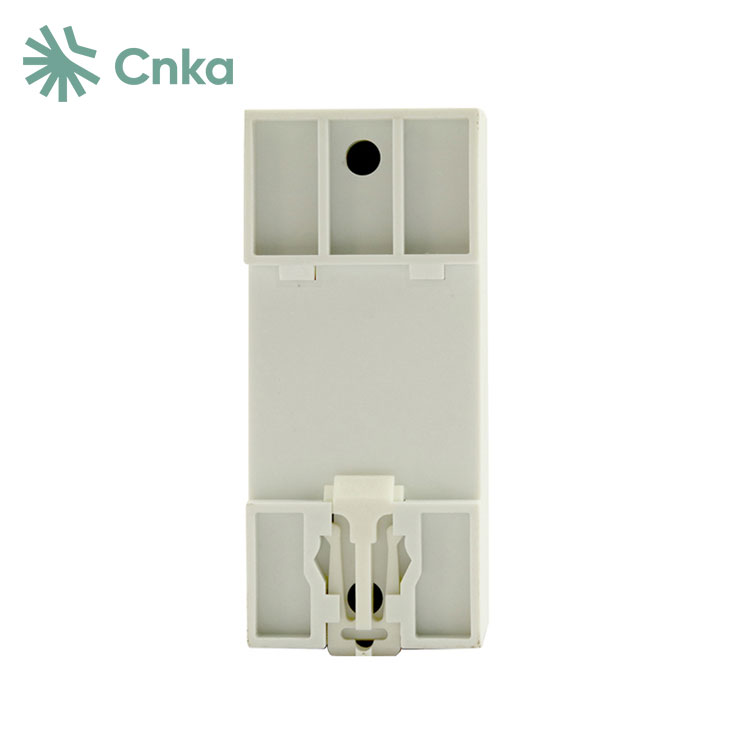

1 The equipment is installed using a 35mm standard guide rail.
2 When the line voltage is undervolted, the equipment will automatically disconnect single-phase or three-phase connections. After the voltage returns to normal, the equipment will automatically delay recovery and reset without requiring manual operation.
3 The device features the inverse time operation characteristic of the protector, with an action time not exceeding 1 second.
4 This device is suitable for connecting lines with a capacity of 63A and insulated wires up to 25mm².
1 The shell is made of PPC flame-retardant material, providing enhanced durability and a higher level of safety.
2 Manually adjust the protection levels for over-voltage, under-voltage, and over-current to intelligently protect your appliances. These parameters can be easily modified to meet your specific needs and provide optimal protection for your valuable equipment.

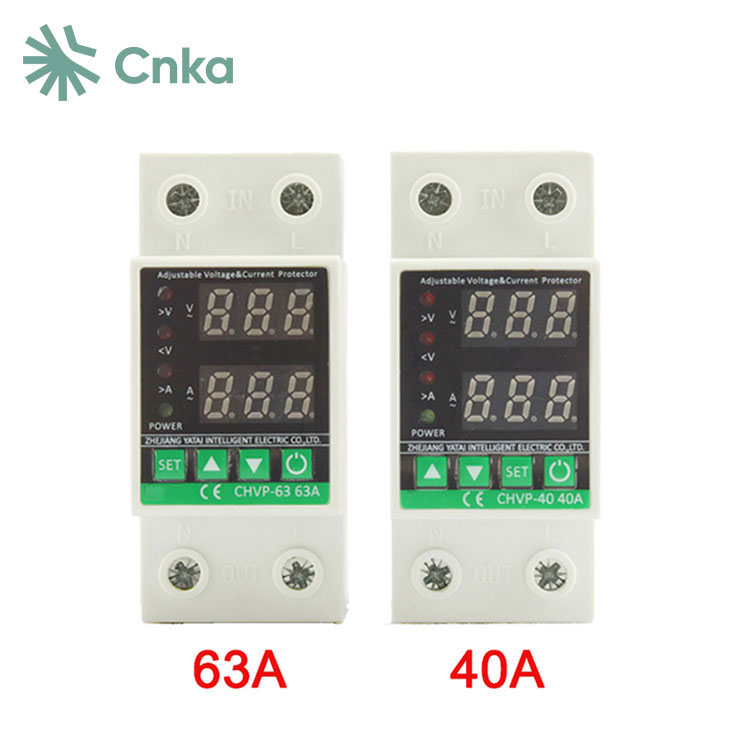

3 Real-time display of current and voltage with an LED digital display, with automatic breaking for overcurrent and overvoltage.
4 The device offers multiple layers of protection, allowing for instant disconnection of the power supply in the event of overvoltage, undervoltage, or overcurrent faults. These safeguards ensure the electrical equipment is shielded from potential damage.
